SUN-G2 Series

Share:

Description

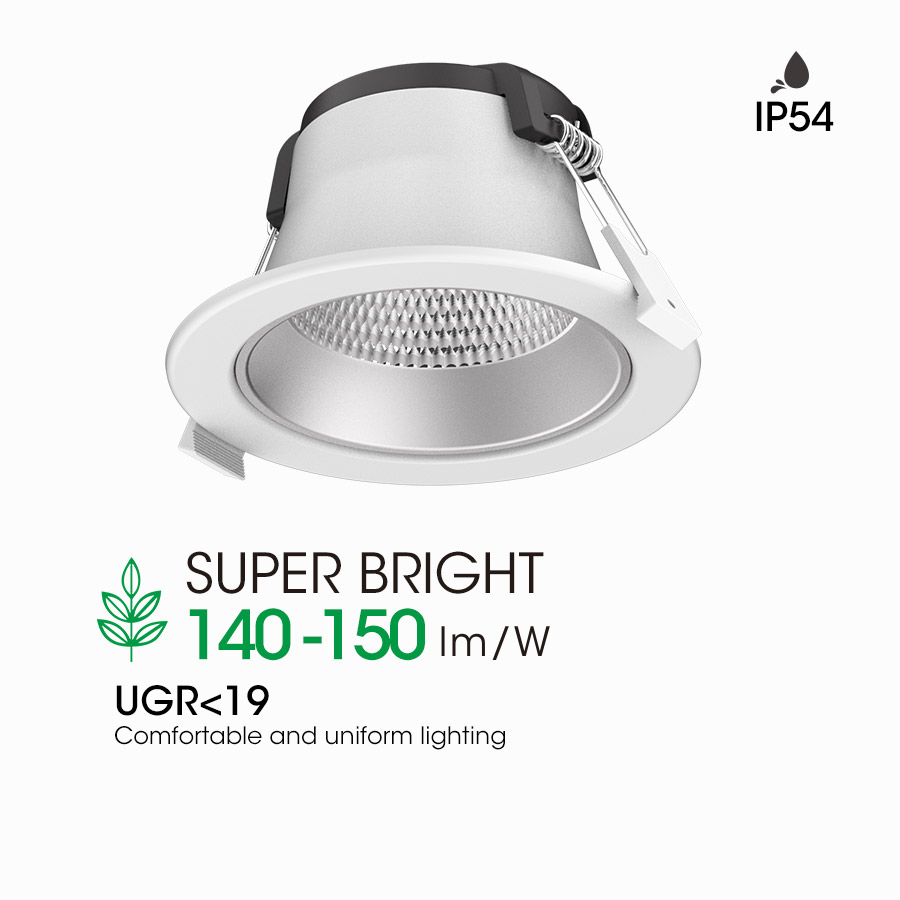

  • Precise light control, light utilization rate increase more than 30%.
  • 140-170lm/W, saving energy up to 30%.
  • UGR<19.
  • IP54.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

SUN-G2 Series Downlight D1342 / D1343 / D1344 / D1345 / D1346

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1067 Product D1342 60° 10W 140 lm/W 1400 lm 2700K-3000K-3500K-4000K-5000K >80 Ebright SMD ZenYuan ON/OFF TRIAC
T1067 Product D1343 60° 15W 150 lm/W 2250 lm 2700K-3000K-3500K-4000K-5000K >80 Ebright SMD ZenYuan ON/OFF TRIAC
T1067 Product D1344 60° 20W 140 lm/W 2800 lm 2700K-3000K-3500K-4000K-5000K >80 Ebright SMD ZenYuan ON/OFF TRIAC
T1067 Product D1345 60° 30W 140 lm/W 4200 lm 3000K-4000K-5000K >80 Ebright SMD ZenYuan ON/OFF 0-10V
T1067 Product D1346 60° 40W 140 lm/W 5600 lm 3000K-4000K-5000K >80 Ebright SMD  ZenYuan  ON/OFF 0-10V
SUN-G2 Series Downlight D1347 / D1348 / D1349 / D1350 / D1351

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1067 Product D1347 90° 10W 150 lm/W 1500 lm 2700K-3000K-3500K-4000K-5000K >80 Ebright SMD ZenYuan  ON/OFF TRIAC
T1067 Product D1348 90° 15W 150 lm/W 2550 lm 2700K-3000K-3500K-4000K-5000K >80 Ebright SMD  ZenYuan  ON/OFF TRIAC
T1067 Product D1349 90° 20W 150 lm/W 3000 lm 2700K-3000K-3500K-4000K-5000K >80 Ebright SMD  ZenYuan  ON/OFF TRIAC
T1067 Product D1350 90° 30W 150 lm/W 4500 lm 2700K-3000K-3500K-4000K-5000K >80 Ebright SMD ZenYuan  ON/OFF 0-10V
T1067 Product D1351 90° 40W 150 lm/W 6000 lm 3000K-4000K-5000K >80 Ebrigh SMD  ZenYuan  ON/OFF 0-10V
SUN-G2 Series Downlight D1352 / D1353 / D1354 / D1355 / D1356

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1067 Product D1352 90° 10W 160 lm/W 1600 lm 2700K-3000K-3500K-4000K-5000K >80 Ebrigh SMD   ZenYuan  ON/OFF TRIAC
T1067 Product D1353 90° 15W 160 lm/W 2400 lm 2700K-3000K-3500K-4000K-5000K >80 Ebrigh SMD   ZenYuan  ON/OFF TRIAC
T1067 Product D1354 90° 20W 160 lm/W 3200 lm 2700K-3000K-3500K-4000K-5000K >80 Ebrigh SMD   ZenYuan ON/OFF TRIAC
T1067 Product D1355 90° 30W 160 lm/W 4800 lm 2700K-3000K-3500K-4000K-5000K >80 Ebrigh SMD ZenYuan ON/OFF TRIAC
T1067 Product D1356 90° 40W 160 lm/W 5600 lm 3000K-4000K-5000K >80 Ebrigh SMD  ZenYuan  ON/OFF 0-10V
SUN-G2 Series Downlight D1352-RGBCW / D1353-RGBCW / D1354-RGBCW

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1067 Product D1352-RGBCW 90° 10W 80 lm/W 800 lm 16 Million Colors >80 XD LUMEN SMD ZenYuan ON/OFF 0-10V
T1067 Product D1353-RGBCW 90° 15W 80 lm/W 1200 lm 16 Million Colors >80 XD LUMEN SMD  ZenYuan  ON/OFF 0-10V
T1067 Product D1354-RGBCW 90° 20W 80 lm/W 1600 lm 16 Million Colors >80 XD LUMEN SMD  ZenYuan  ON/OFF 0-10V

Product Video

Share:

Features

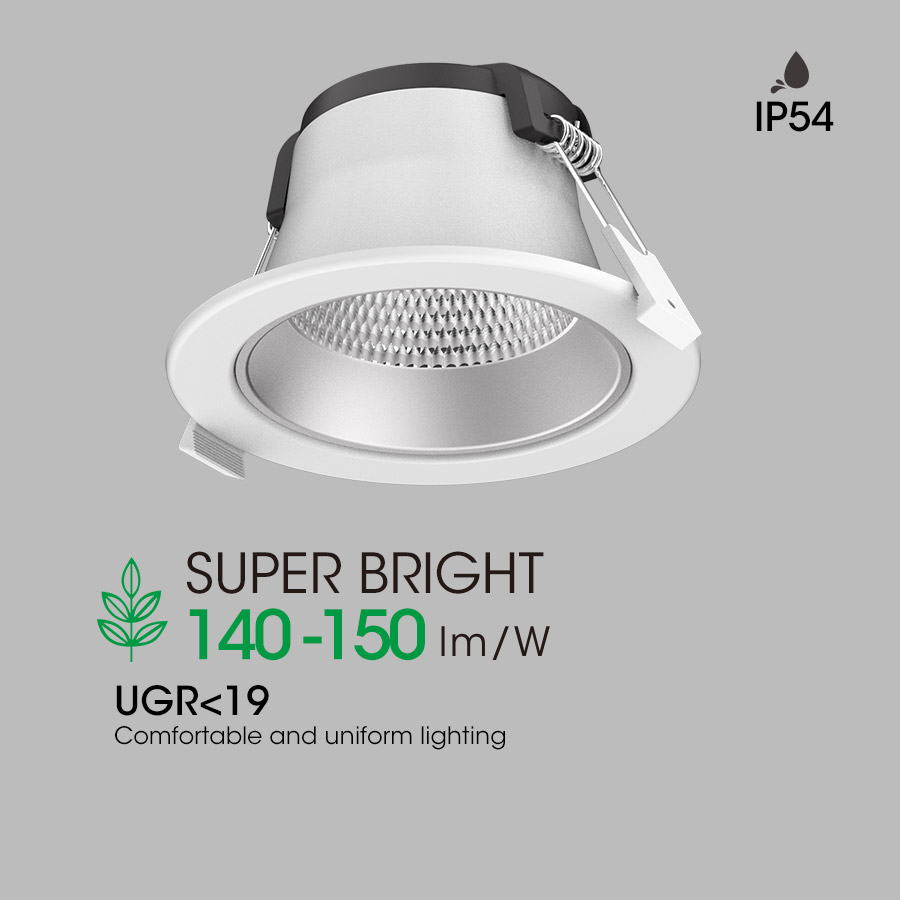

  • 150 lm/W, saving energy up to 30%.

    UGR<19，IP54.

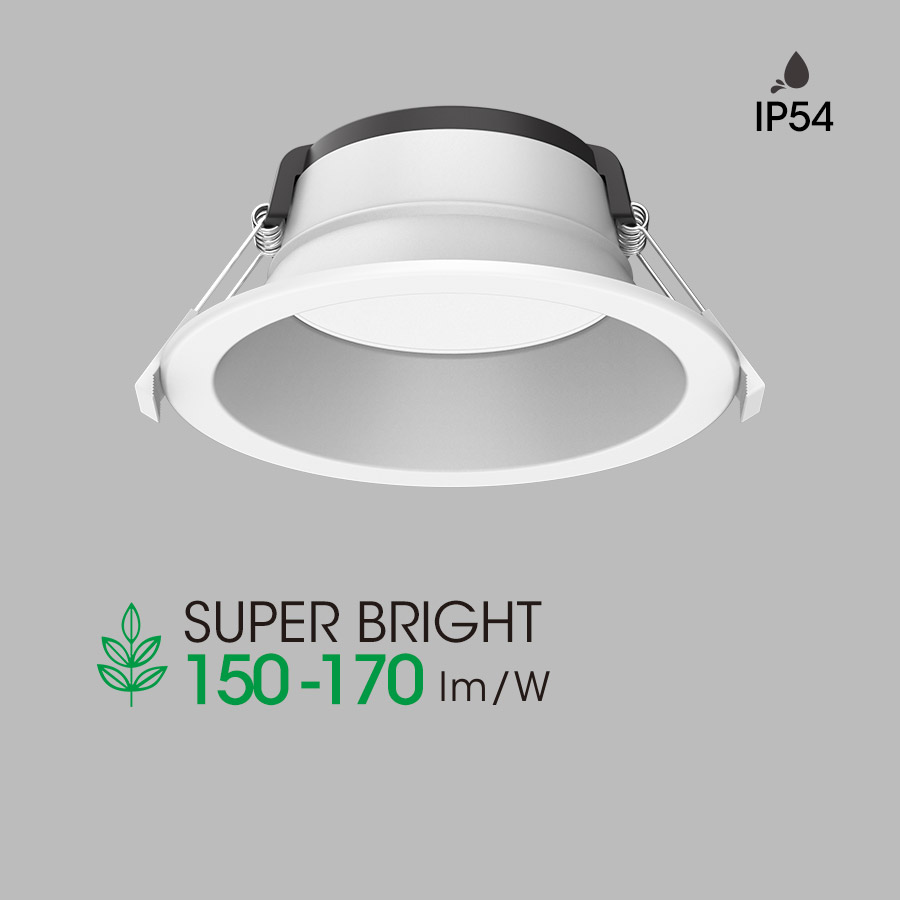

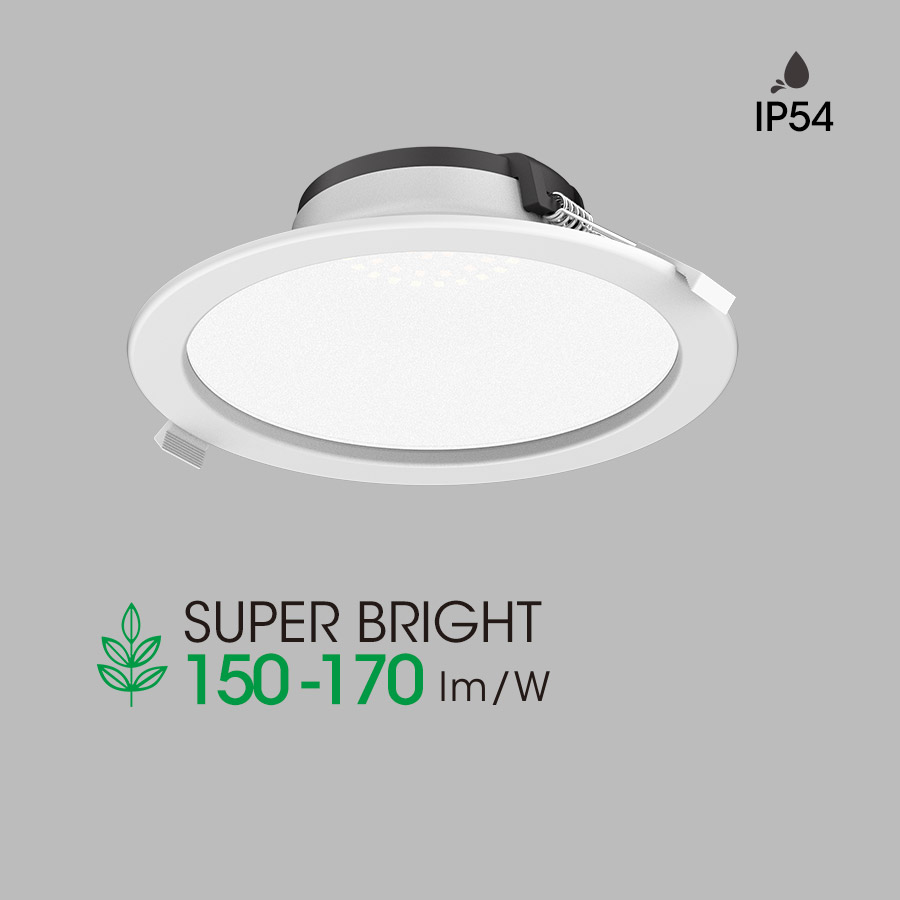

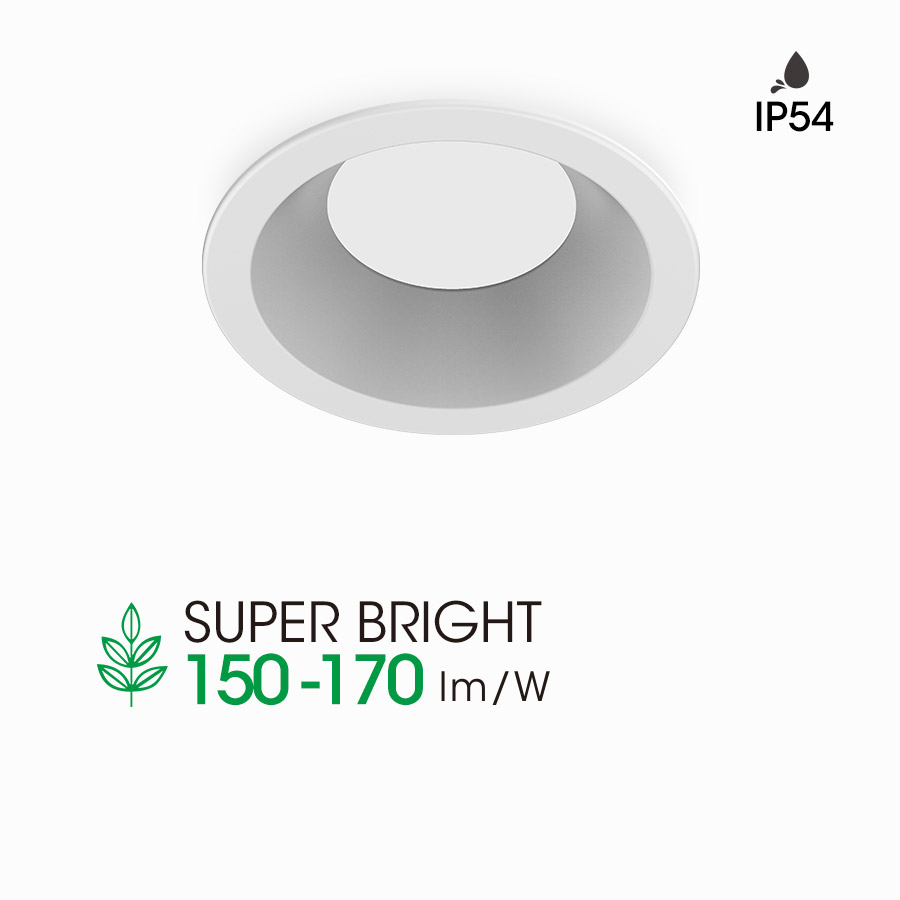

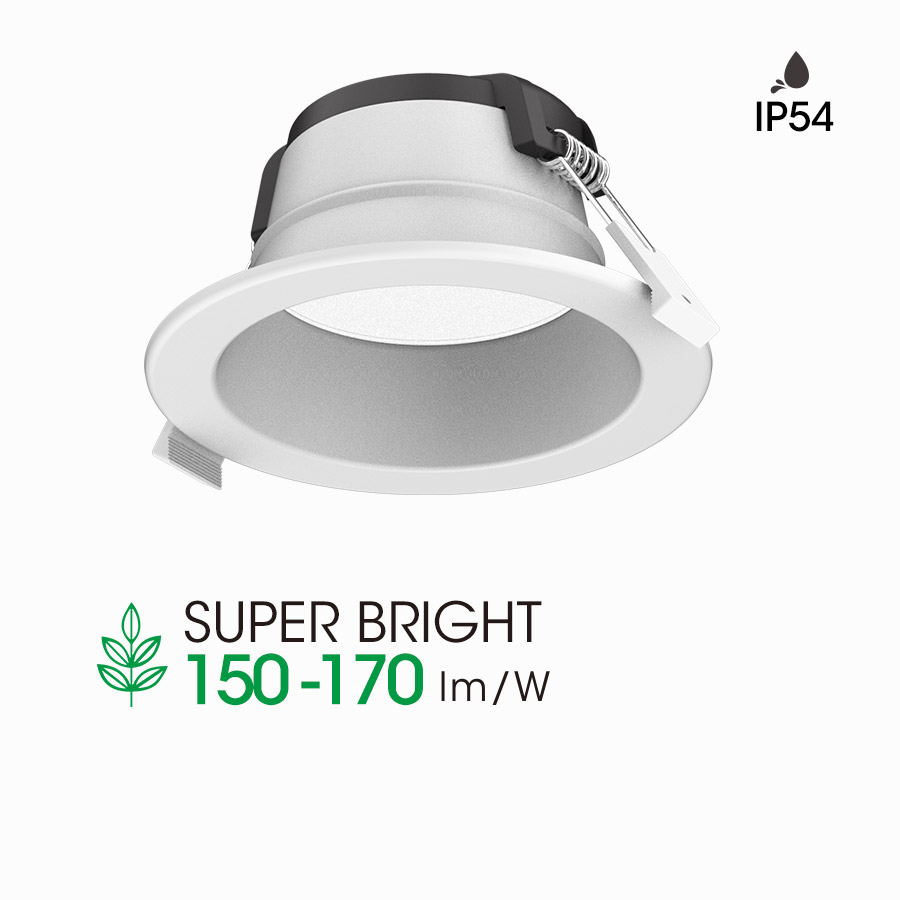

  • 150-170 lm/W

    IP54

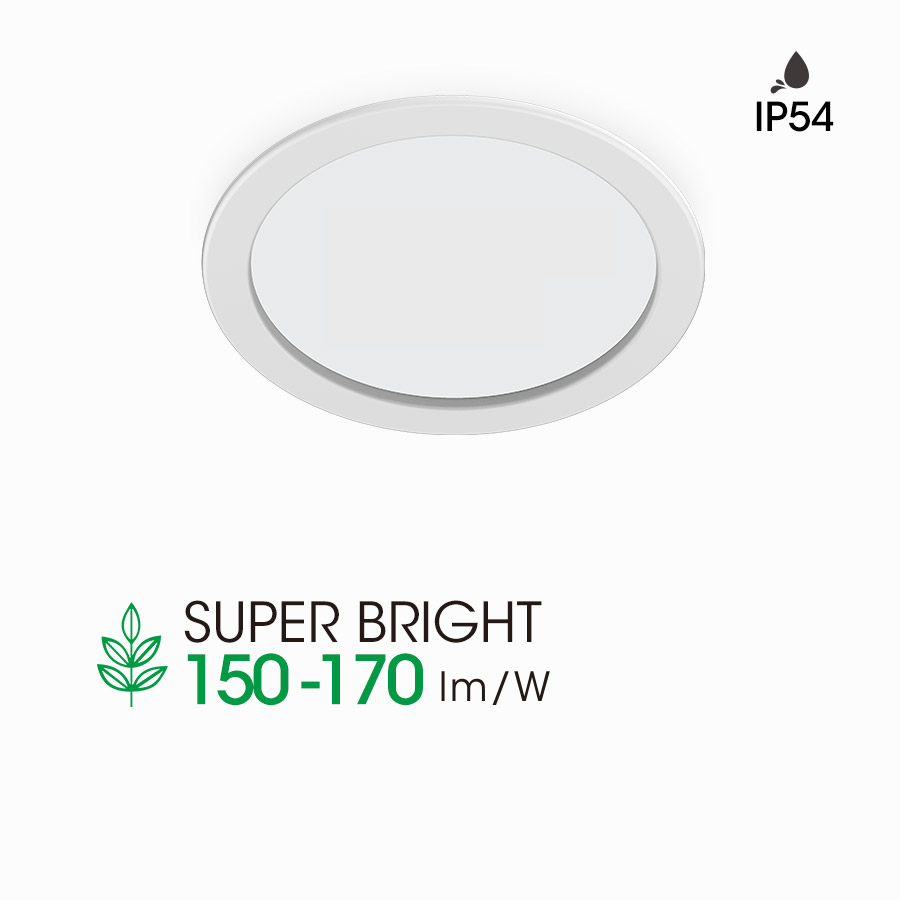

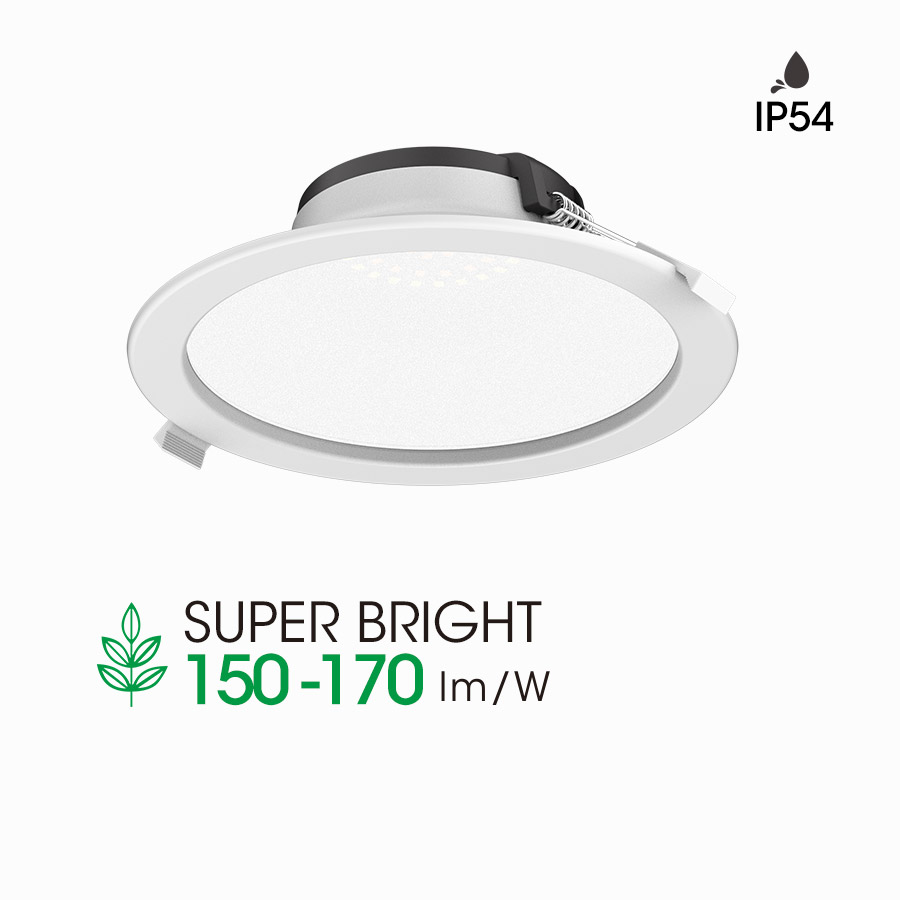

  • 150-170 lm/W

    Aluminium heat sink with good heat dissipation.

  • Support group control lighting.

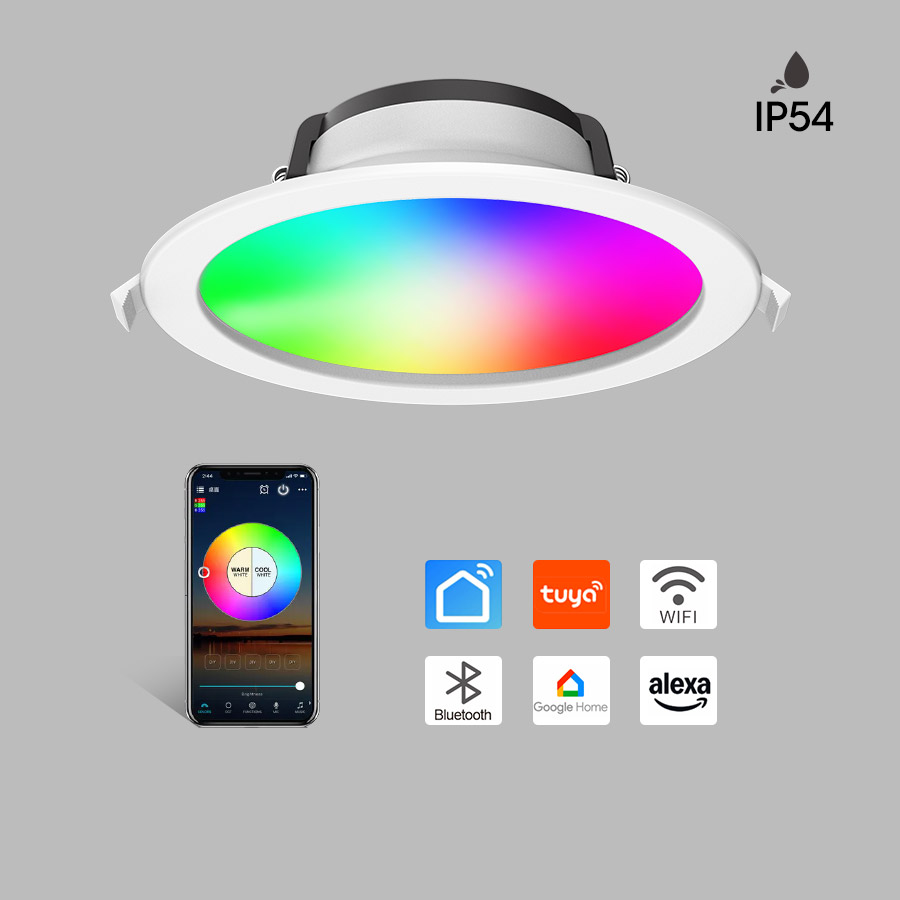

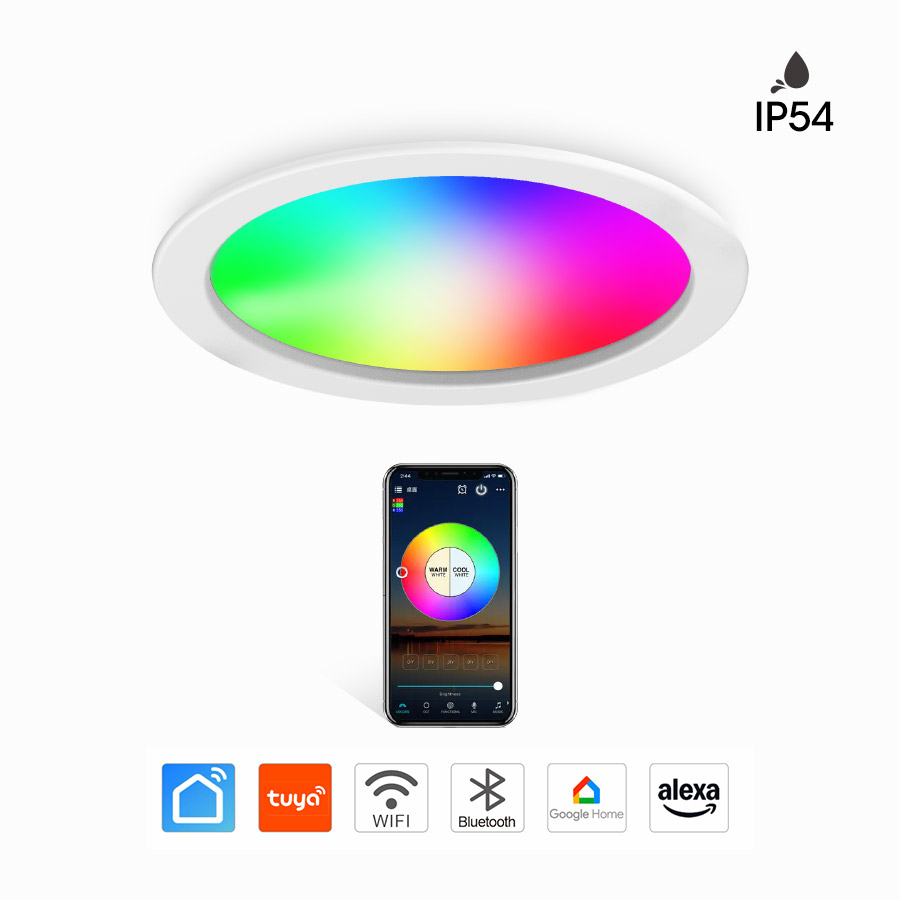

    Download "Smart Life" or "Tuya" APP for remote intelligent control. Support Bluetooth +WIFI control. Support group control lighting. 16 million colors for optional. Timing function, automatically set on/off. Multiple preset scene modes and DIY scenes are suitable for various applicantions.

  • Simple Appearance

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • Slide hanging bars onto assembled base plate.
  • Line up bottom edge of hanging bars with bottom of wood joist and hammer in tabs. Nail or screw hanging bars into place.
  • 3a-Position trim hole to desired location by sliding housing. Horizontally or Vertically.
    3b-Use centering holes on either side of base plate to line up a row of fixtures.
  • To hold housing in place,bend tab with pliers into hanging bar.
  • Cutting hole on ceiling, suitable ceiling thickness:between 4 1/8''.

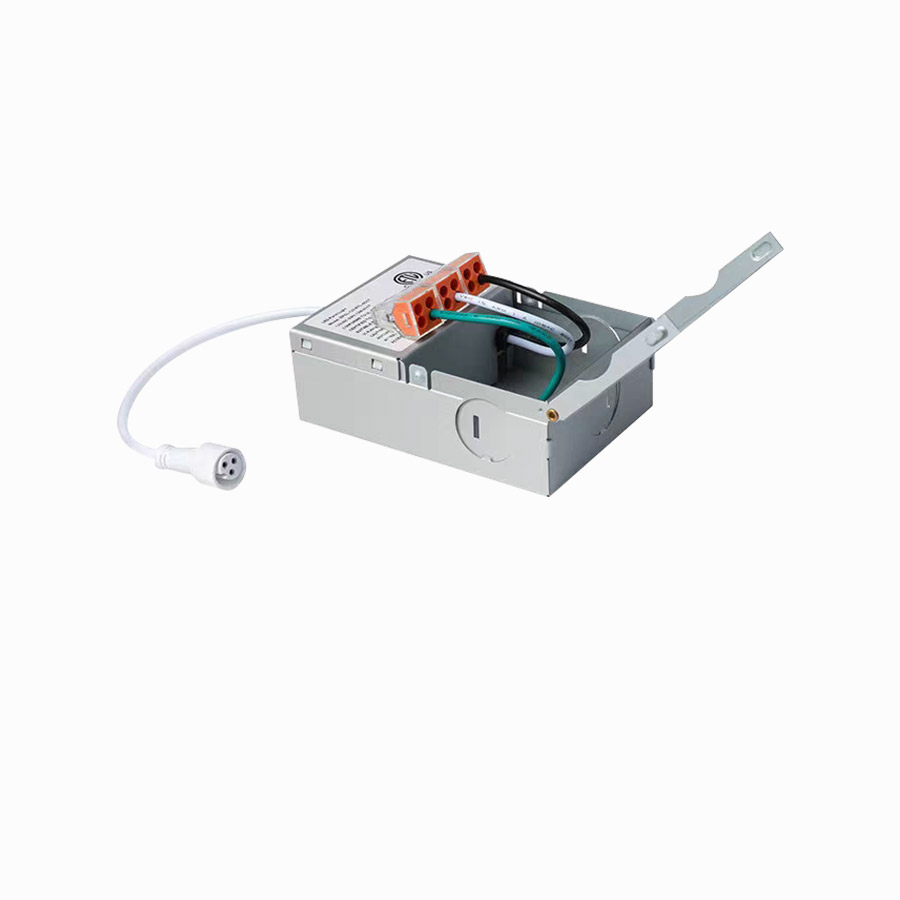

  • Connect the input end of the driver with the power line.
  • Finally put the whole lamp into the pre-opened hole.
  • Installation complete.
