Fly Family Series

Share:

Description

Compact design with wide range waffage options 3W-12W, Module design and combined for a wide range installation way-Embedded, Recessed, ajustable spothead, The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
D1102 Product D1102 6W 260LM φ38mm 28° / 37° φ56 x 88.5 3000K / 4000K / 5000K >80, >90 Black / Gray / White OSRAM Lufid Aluminum Alloy No
D1103 Product D1103 7.5W 520LM φ46mm 18° / 25° / 38° φ64 x 104 3000K / 4000K / 5000K >80, >90 Black / Gray / White Luminus Lufid Aluminum Alloy No
D1104 Product D1104 12W 890LM φ54mm 20° / 27° / 38° φ72 x 110 3000K / 4000K / 5000K >80, >90 Black / Gray / White Luminus Lufid Aluminum Alloy No

Product Video

Share:

Features

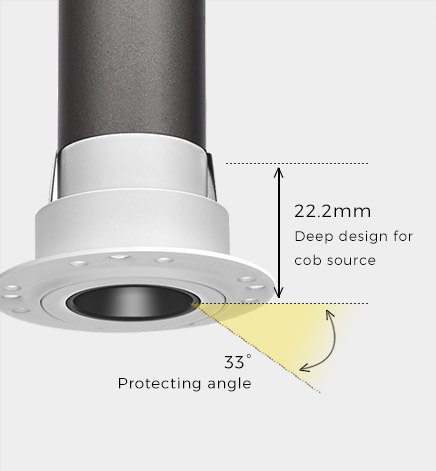

  • Triple anti-glare

    Soft light effect, deep design (22.2mm) for cob source, large shading Angle 33°, better anti-glare effect.

  • Professional optical lens

    High efficiency, soft light, accurate light control, more uniform light spot, anti-glare.

  • Flexible decoration

    Small ceiling cut out compatble with free-style lighting fixture combination.

  • Die cast aluminum lamp body

    Aluminum material, increase heat dissipation area, air convection, improve heat dissipation efficiency, effectively reduce light source light decay.

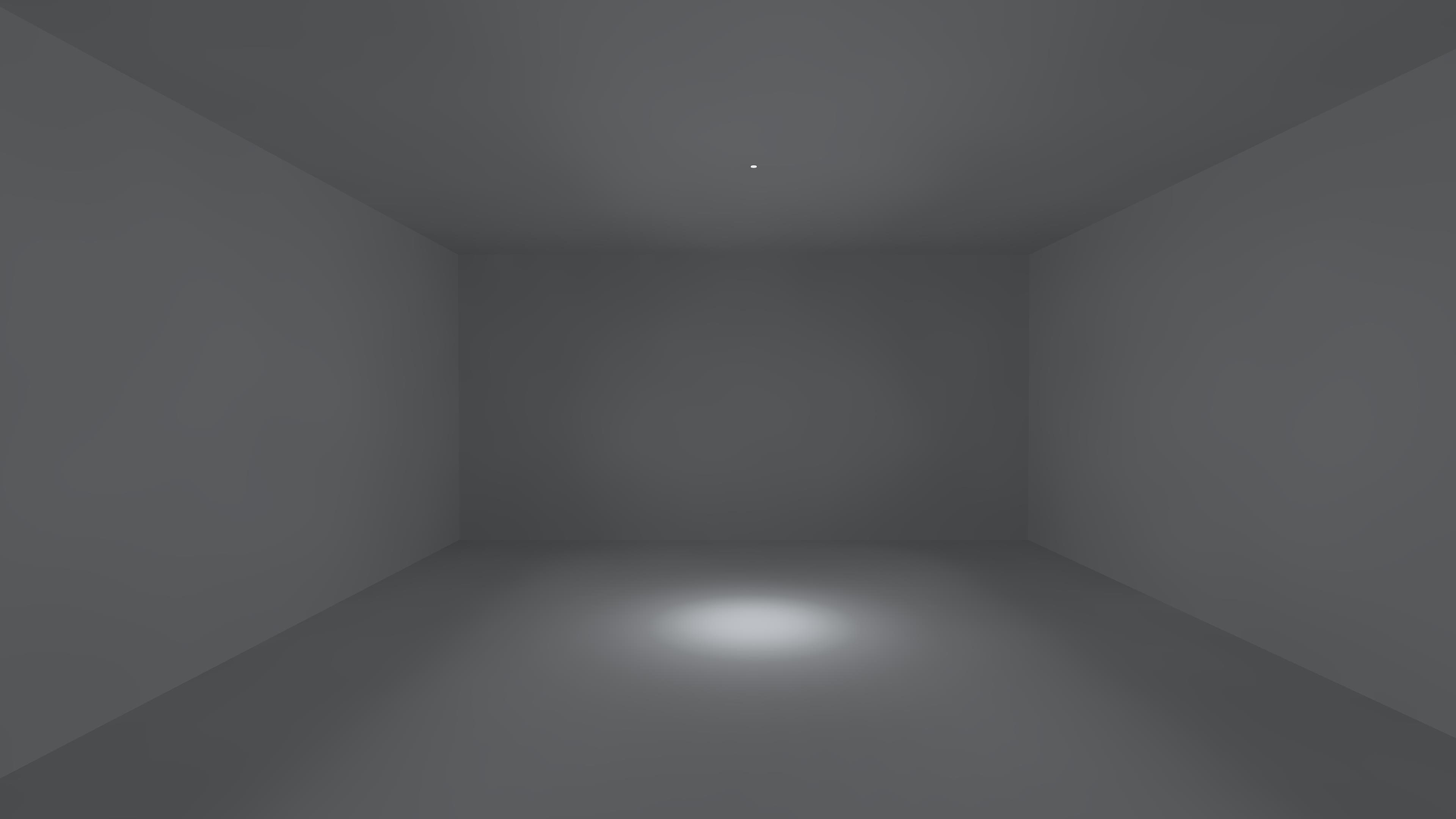

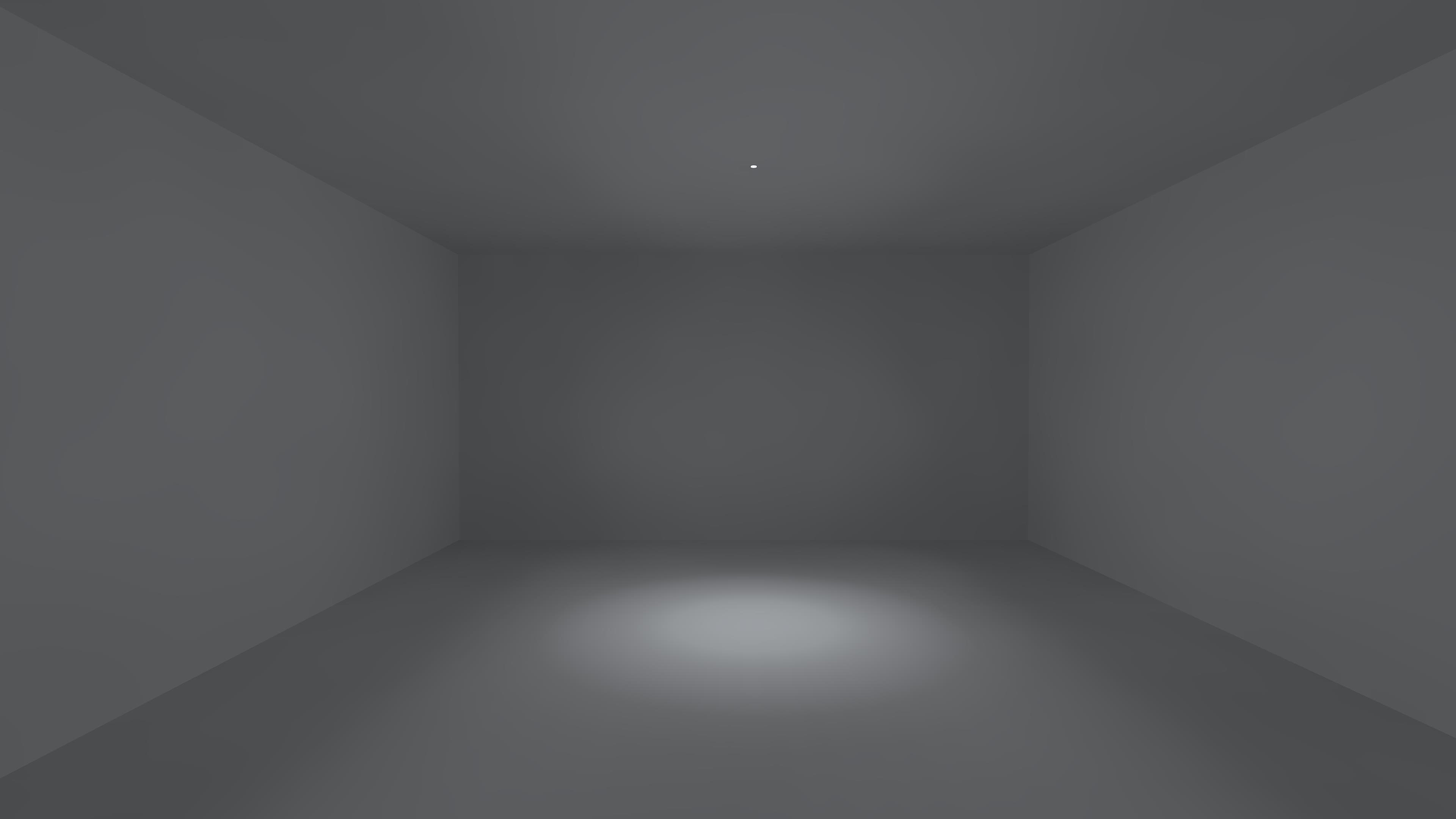

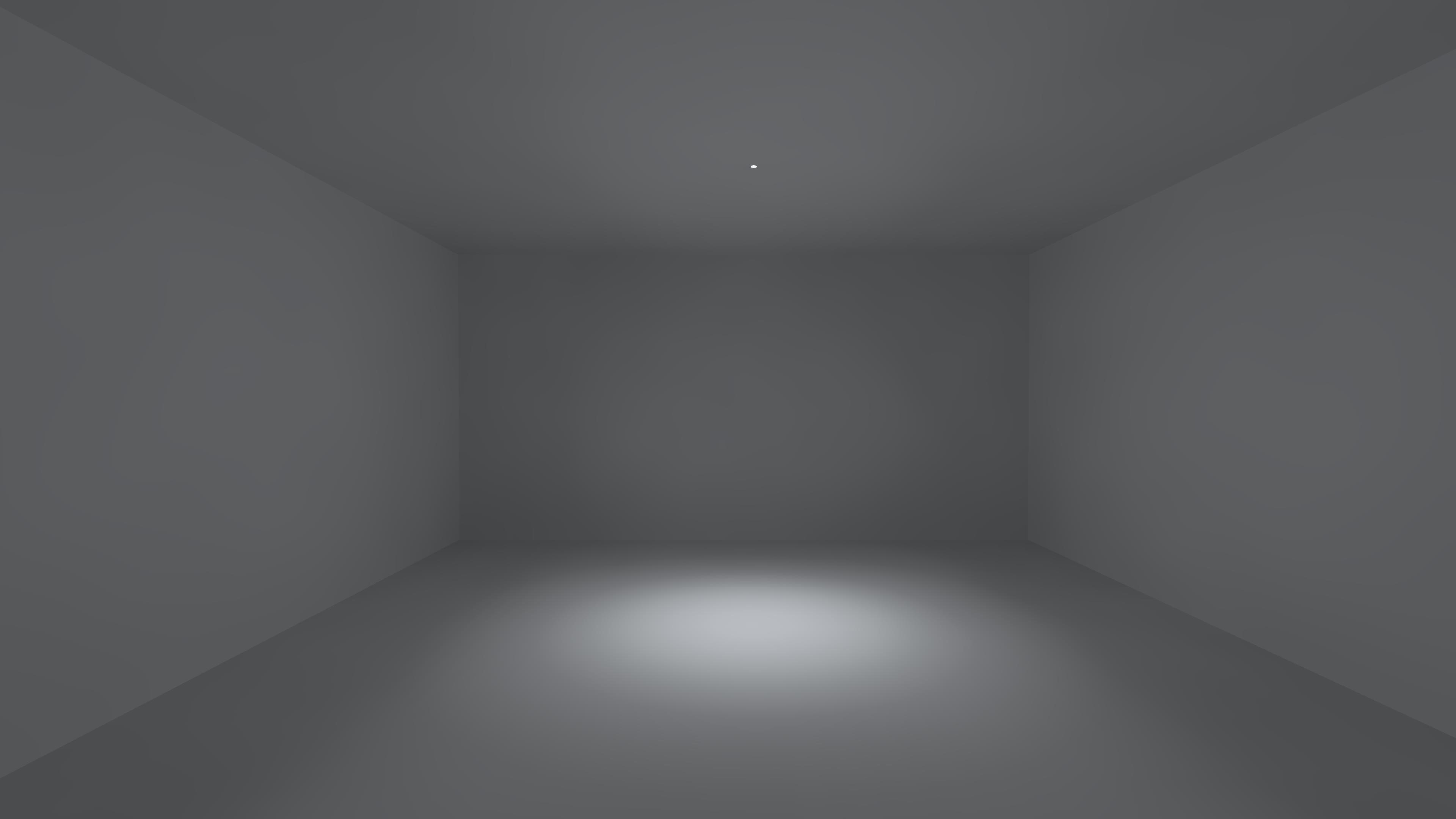

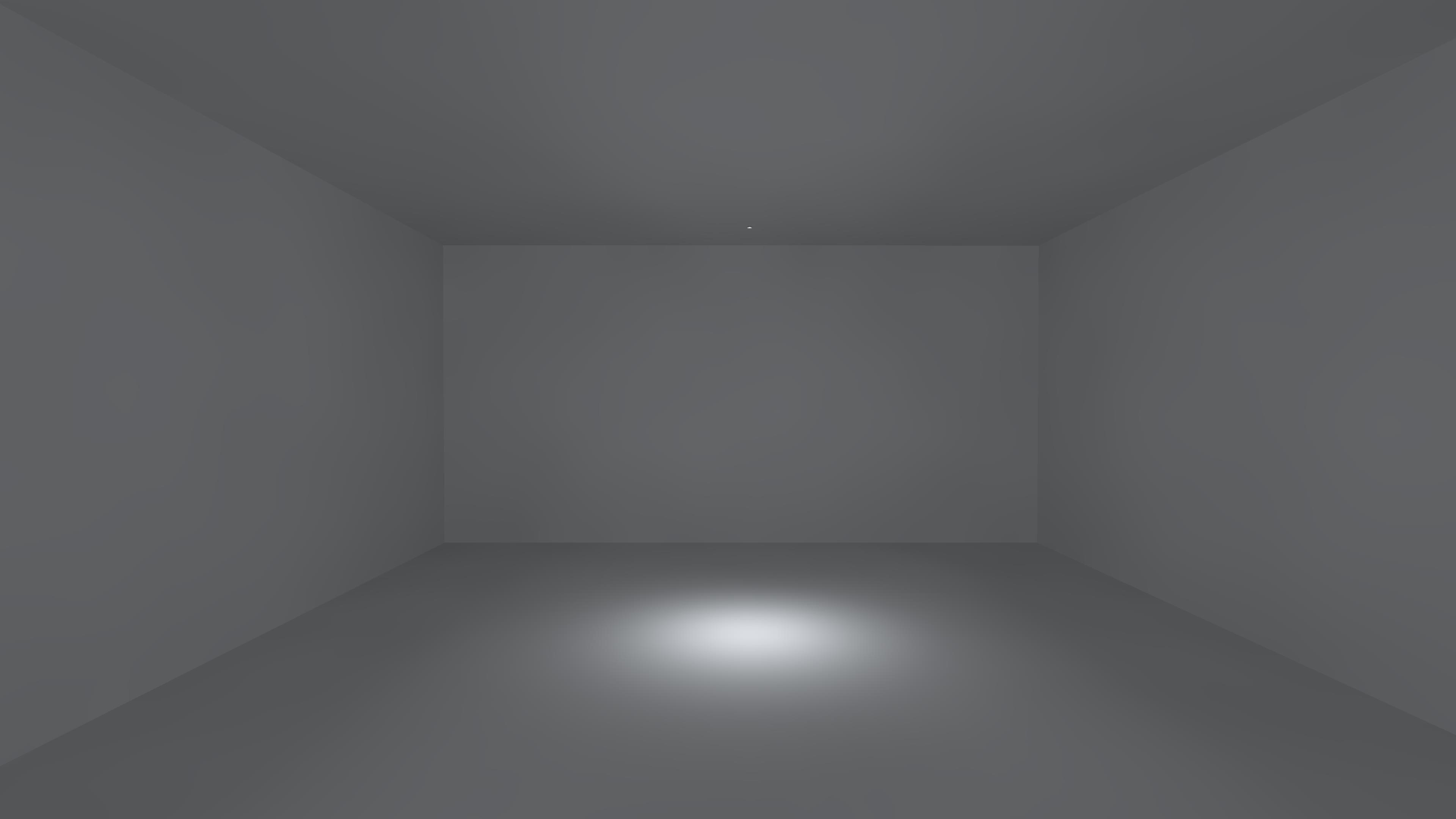

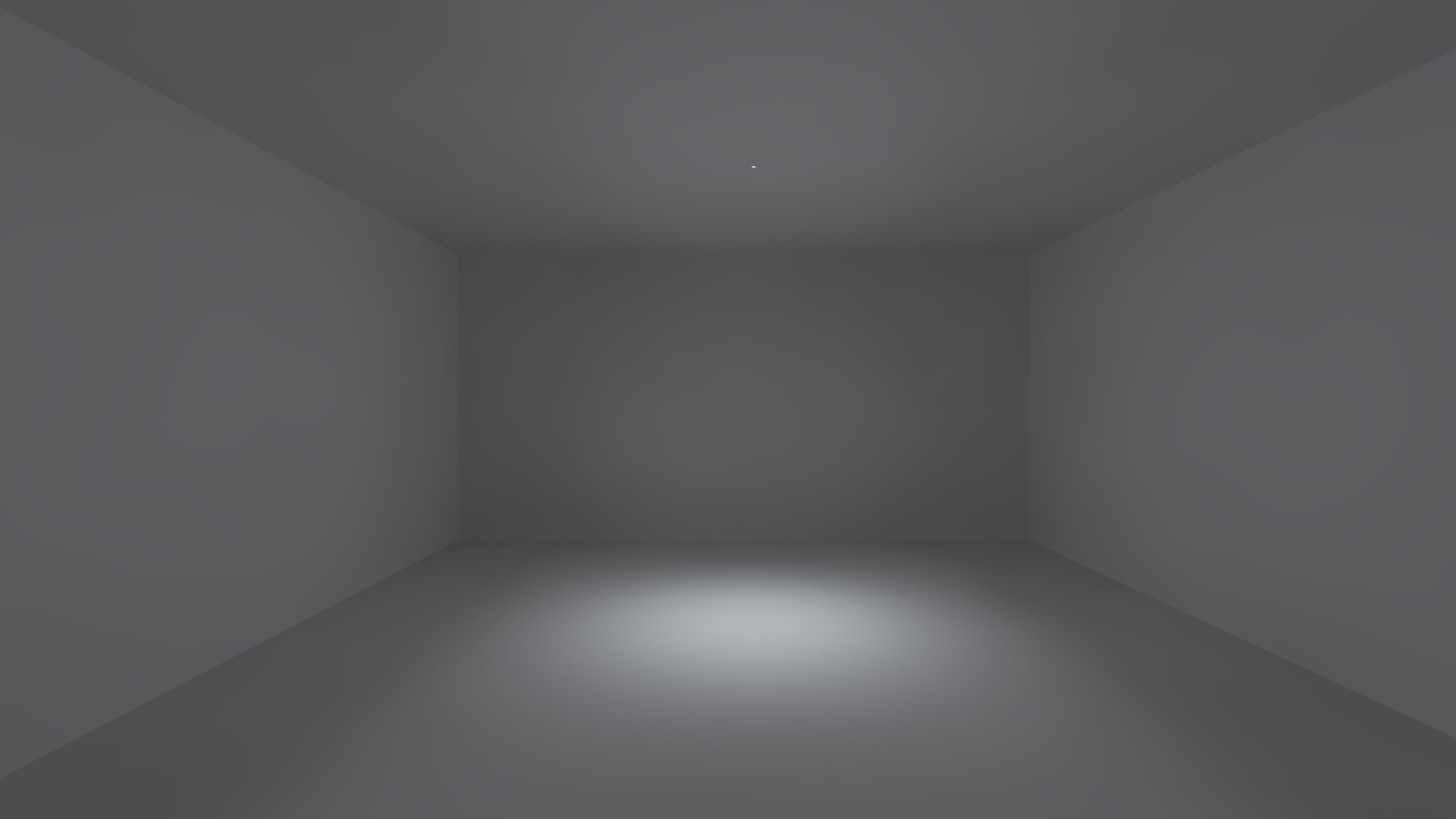

Light effect

  • 18°Spot
  • 20°Spot
  • 25°Flood
  • 26°Flood
  • 35°Wide flood
  • 37°Wide flood
  • 38°Wide flood

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • First :Cutting a φ30mm or φ38mm or φ45mm hole on the ceiling.
  • Second:Batch ash, be careful not to enter the ash hole.
  • Third:Connect the Lamp with AC Power and Push the lamp into the ceiling.
  • Fourth:Installation complete.
  • Disassemble step: First:Catch and hold the lamp and pull it out.
