GEMINI Series Downlight R1132 / R1133 / R1134 / R1135 / R1136/ R1137/ R1138/ R1139/ R1140/ R1141/ R1142/ R1143

Share:

Description

Deeply hiden reflector UGR < 16
Increase the length between the COB and the light outlet which can improve the anti-glare performance.
The light is reflected from the reflector and filtered by the anti-glare honeycomb to decrease stray light effectively.
Pre-embedded design, quick installation and convenient maintenance of fixtures Innovation and High Efficiency Black Light Mirror

Available reflectors:

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

GEMINI Series Downlight R1132/R1144/R1156/R1168

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1132 15° / 24° / 38° 5W 80 lm/W 400 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1144 15° / 24° / 38° 12W 70 lm/W 850 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1156 15° / 24° / 38° 20W 70 lm/W 1400 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1168 15° / 24° / 38° 30W 70 lm/W 2100 lm 133 x 133x 145 Ø120 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1133/R1145/R1157/R1169

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1133 15° / 24° / 38° 5W 80 lm/W 400 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1145 15° / 24° / 38° 12W 70lm/W 850 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1157 15° / 24° / 38° 20W 70 lm/W 1400 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1169 15° / 24° / 38° 30W 70 lm/W 2100 lm 133 x 133x 145 Ø120 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1134/R1146/R1158

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1134 15° / 24° / 38° 5W 80 lm/W 400 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1146 15° / 24° / 38° 12W 70lm/W 850 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1158 15° / 24° / 38° 20W 70 lm/W 1400 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1135/R1147/R1159

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1135 15° / 24° / 38° 5W 80 lm/W 400 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1147 15° / 24° / 38° 12W 70 lm/W 850 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1159 15° / 24° / 38° 20W 70 lm/W 1400 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1136/R1148/R1160/R1170

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1136 15° / 24° / 38° 5W 80 lm/W 400 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1148 15° / 24° / 38° 12W 70 lm/W 850 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1160 15° / 24° / 38° 20W 70 lm/W 1400 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1170 15° / 24° / 38° 30W 70 lm/W 2100 lm 133 x 133x 145 Ø120 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1137/R1149/R1161/R1171

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1137 15° / 24° / 38° 5W 80 lm/W 400 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1149 15° / 24° / 38° 12W 70 lm/W 850 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1161 15° / 24° / 38° 20W 70 lm/W 1400 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1171 15° / 24° / 38° 30W 70 lm/W 2100 lm 133 x 133x 145 Ø120 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1138/R1150/R1162

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1138 15° / 24° / 38° 5W 45 lm/W 225 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1150 15° / 24° / 38° 12W 45 lm/W 540 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1162 15° / 24° / 38° 20W 45 lm/W 900 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1139/R1151/R1163

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1139 15° / 24° / 38° 5W 45 lm/W 225 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1151 15° / 24° / 38° 12W 45 lm/W 540 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1163 15° / 24° / 38° 20W 45 lm/W 900 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1140/R1164/R1172

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1140 15° / 24° / 38° 5W 80 lm/W 400 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1152 15° / 24° / 38° 12W 70 lm/W 850 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1164 15° / 24° / 38° 20W 70 lm/W 1400 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1172 15° / 24° / 38° 30W 70 lm/W 2100 lm 133 x 133x 145 Ø120 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1141/R1153/R1165/R1173

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1141 15° / 24° / 38° 5W 80 lm/W 400 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1153 15° / 24° / 38° 12W 70 lm/W 850 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1165 15° / 24° / 38° 20W 70 lm/W 1400 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1173 15° / 24° / 38° 30W 70 lm/W 2100 lm 133 x 133x 145 Ø120 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1142/R1154/R1166

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1142 15° / 24° / 38° 5W 80 lm/W 400 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1154 15° / 24° / 38° 12W 70 lm/W 850 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1166 15° / 24° / 38° 20W 70 lm/W 1400 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
GEMINI Series Downlight R1143/R1155/R1167

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1143 15° / 24° / 38° 5W 80 lm/W 400 lm 60 x 60 x 75 Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1155 15° / 24° / 38° 12W 70 lm/W 850 lm 86 x 86 x 104 Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1167 15° / 24° / 38° 20W 70 lm/W 1400 lm 105 x 105x 119 Ø95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No

Product Video

Share:

Features

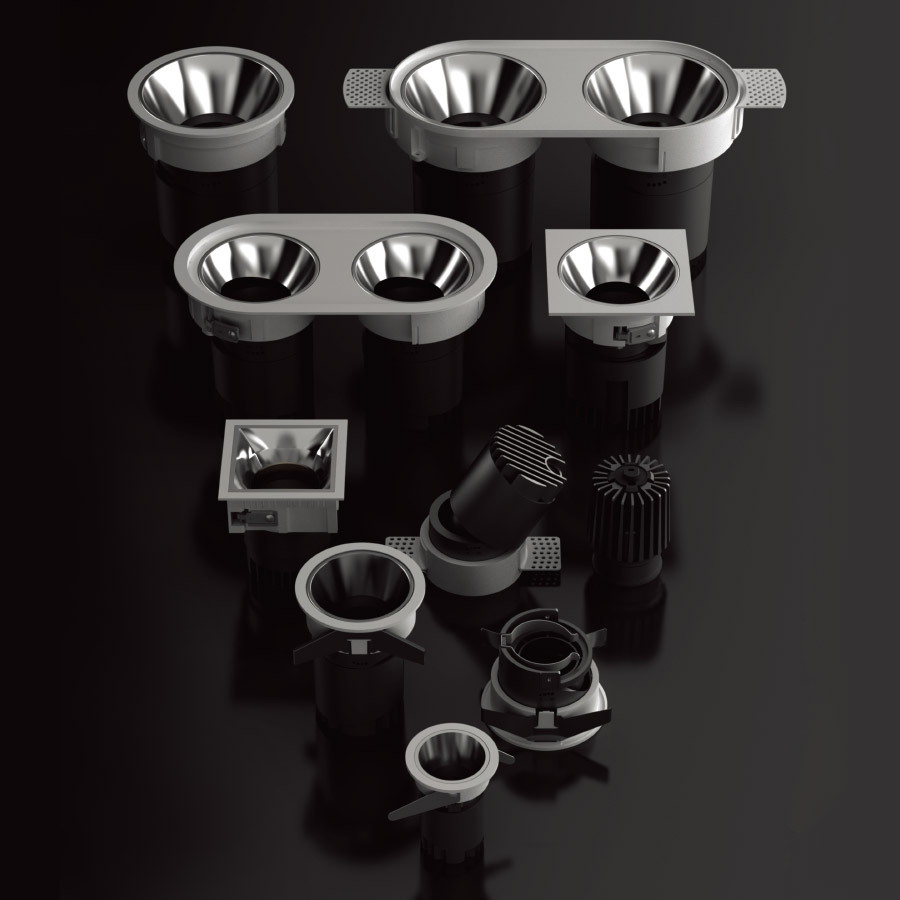

  • Family Design

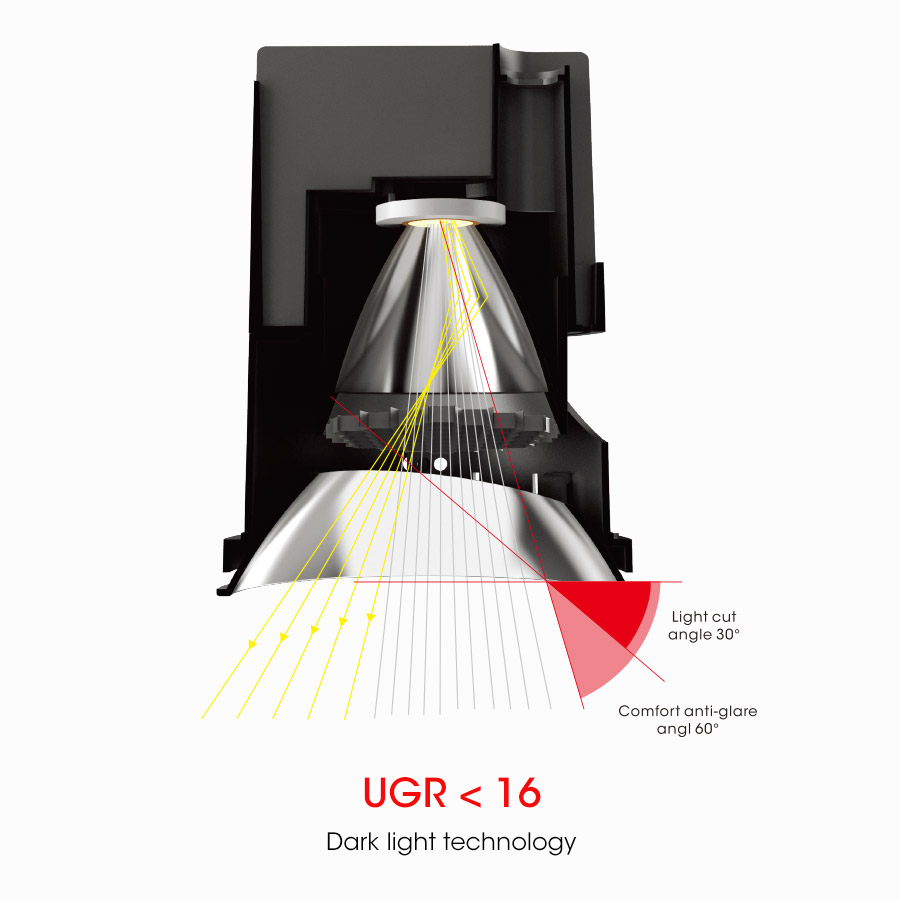

  • UGR<16

    Dark light technology.

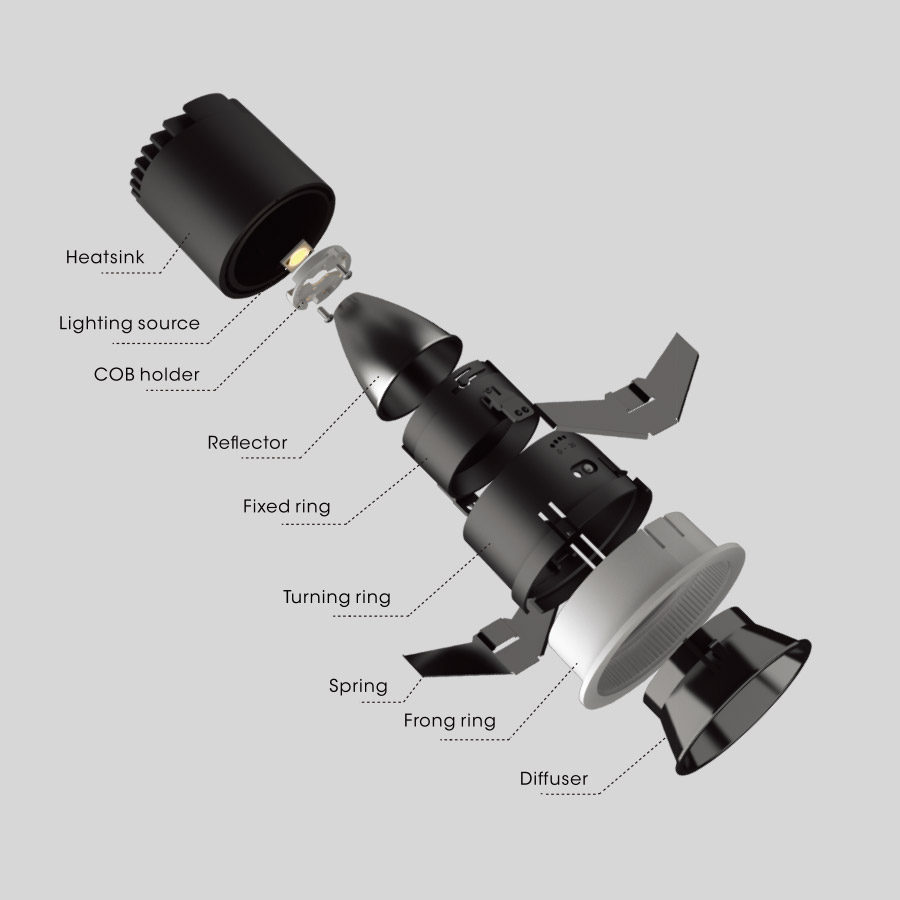

  • Split Structure

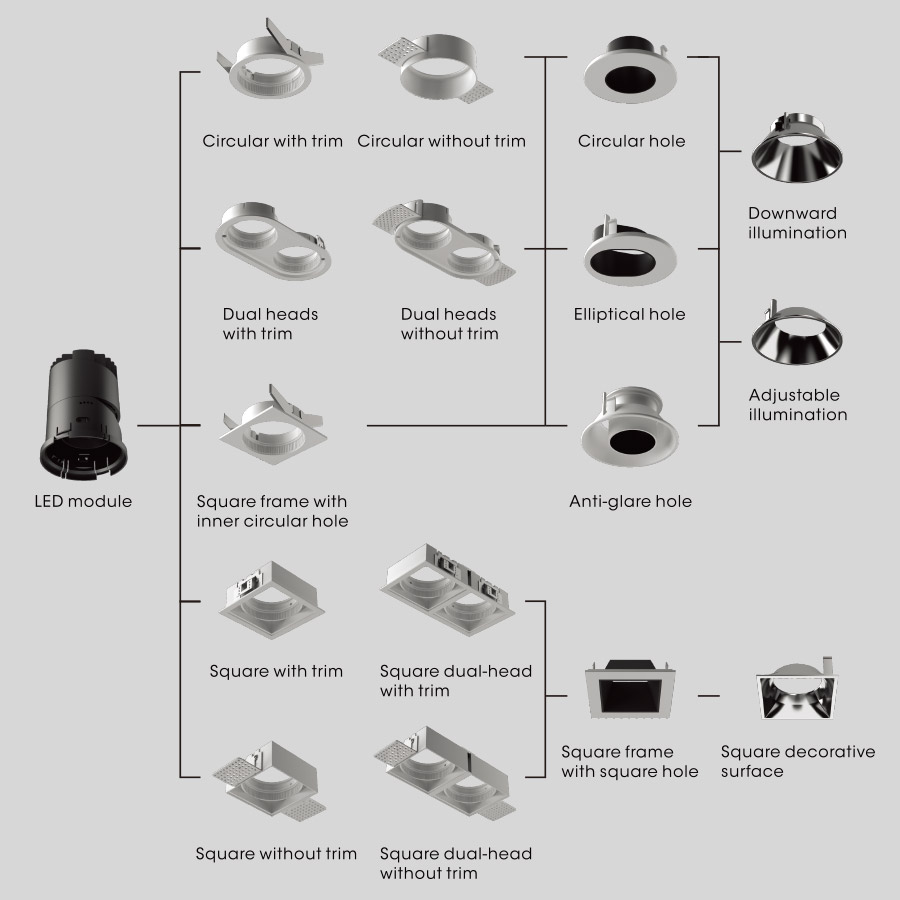

  • Modularization

  • Reasonable Installation Structure

  • Rotation angle：355°

  • 3Tilt angle：30°

  • Antiglare fittings

Light effect

  • 15°Spot
  • 24°Flood
  • 38°Flood

Application

 Product application in Store Lighting, Mall Lighting

Mounting

  • First :Cutting a φ50mm hole on the ceiling
  • Second:Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third:Installation complete
  • Disassemble step: First:Catch and hold the lamp and pull it out
