SOTEN Downlight with high power 6W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.
With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.
I like this lamp, I need ODM service.
You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!
| Product | Item No | Max Power | Luminous Flux | Ceiling Cut Out | Beam Angle | Dimension(mm) | CCT | CRI | Color | COB | Drive | Material | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D1378 | 6W | 450LM | φ55mm | 40° / 60° | φ61.5 x 45 | 3000K / 4000K / 5000K | >80, >90 | Black / White | Lumileds COB | Tridonic | Aluminum Alloy | No |
 |
D1379 | 6W | 450LM | φ51mm | 40° / 60° | φ60 x 31 | 3000K / 4000K / 5000K | >80, >90 | Black / White | Lumileds COB | Tridonic | Aluminum Alloy | No |
 |
D1380 | 6W | 450LM | φ61mm | 40° / 60° | φ68 x 31 | 3000K / 4000K / 5000K | >80, >90 | Black / White | Lumileds COB | Tridonic | Aluminum Alloy | No |
 |
D1381 | 6W | 450LM | φ68mm | 40° / 60° | φ75 x 43.5 | 3000K / 4000K / 5000K | >80, >90 | Black / White | Lumileds COB | Tridonic | Aluminum Alloy | No |
Triple anti-glare
Soft light effect, deep design (67mm) for cob source, large shading Angle 55°, better anti-glare effect.

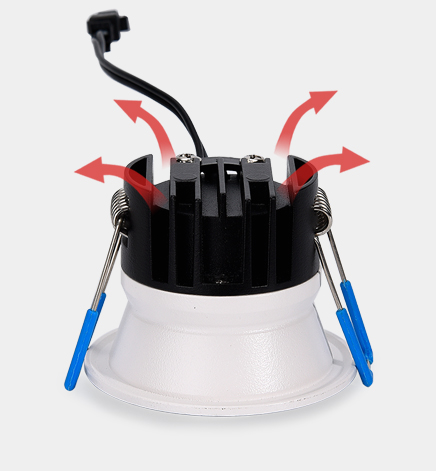

High efficiency heat dissipation
Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.
Triple anti-glare
Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.
Product application in Store Lighting, Mall Lighting
Tel: +86-750-3778800 Fax: +86-750-3778811 E-mail: inquiry@soten.hk www.soten.hk Jinou Road, Jiangmen City, Guangdong, China
First: Cutting a φ51-68mm hole on the ceiling
Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
Third: Installation complete
Disassemble step: First: Catch and hold the lamp and pull it out
