SKY Series

Share:

Description

SOTEN Downlight with high power 3-30W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
D1257 Product D1257 3W 225LM φ70mm 80° φ98 x 31 2700K / 3000K / 4000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1258 Product D1258 5W 389LM φ80mm 80° φ108 x 31 2700K / 3000K / 4000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1259 Product D1259 7W 600LM φ90mm 80° φ118 x 31.5 2700K / 3000K / 4000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1260 Product D1260 9W 690LM φ115mm 80° φ132 x 32 2700K / 3000K / 4000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1261 Product D1261 12W 1020LM φ155mm 80° φ178 x 36 2700K / 3000K / 4000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1262 Product D1262 20W 1720LM φ160mm 80° φ188 x 36 2700K / 3000K / 4000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1263 Product D1263 30W 2685LM φ210mm 80° φ240 x 40 2700K / 3000K / 4000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No

Product Video

Share:

Features

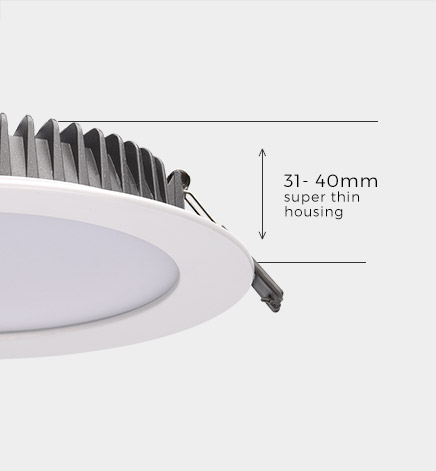

  • Super thin and anti-glare

    31- 40mm super thin housing , low heat sink but still with good dissipation.

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

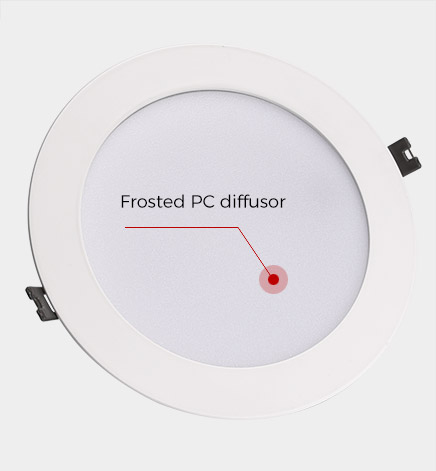

  • Optical diffusor plate

    Use frosted diffusor design, effectively filtering dazzling light source, anti-glare design, soft and comfortable.

  • No visible flicker

    Photovoltaic glass to improve lighting efficiency, bring out soft and comfortable lighting.

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • First: Cutting a φ70-210mm hole on the ceiling
  • Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third: Installation complete
  • Disassemble step: First: Catch and hold the lamp and pull it out
