GEMINI Series Downlight

Description

Deeply hiden reflector UGR < 16
Increase the length between the COB and the light outlet which can improve the anti-glare performance.
The light is reflected from the reflector and filtered by the anti-glare honeycomb to decrease stray light effectively.
Pre-embedded design, quick installation and convenient maintenance of fixtures Innovation and High Efficiency Black Light Mirror

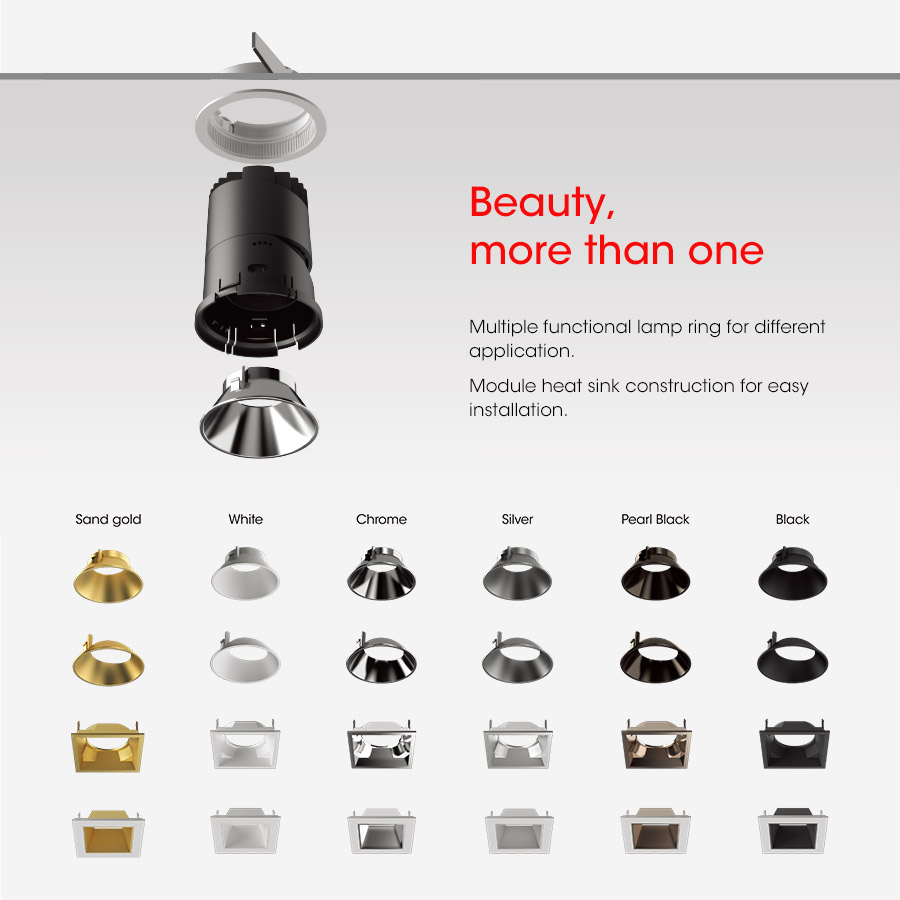

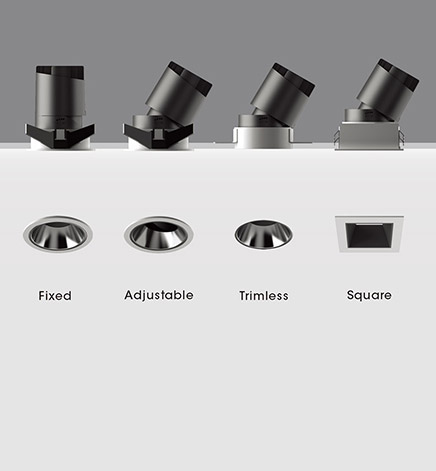

Available reflectors:

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

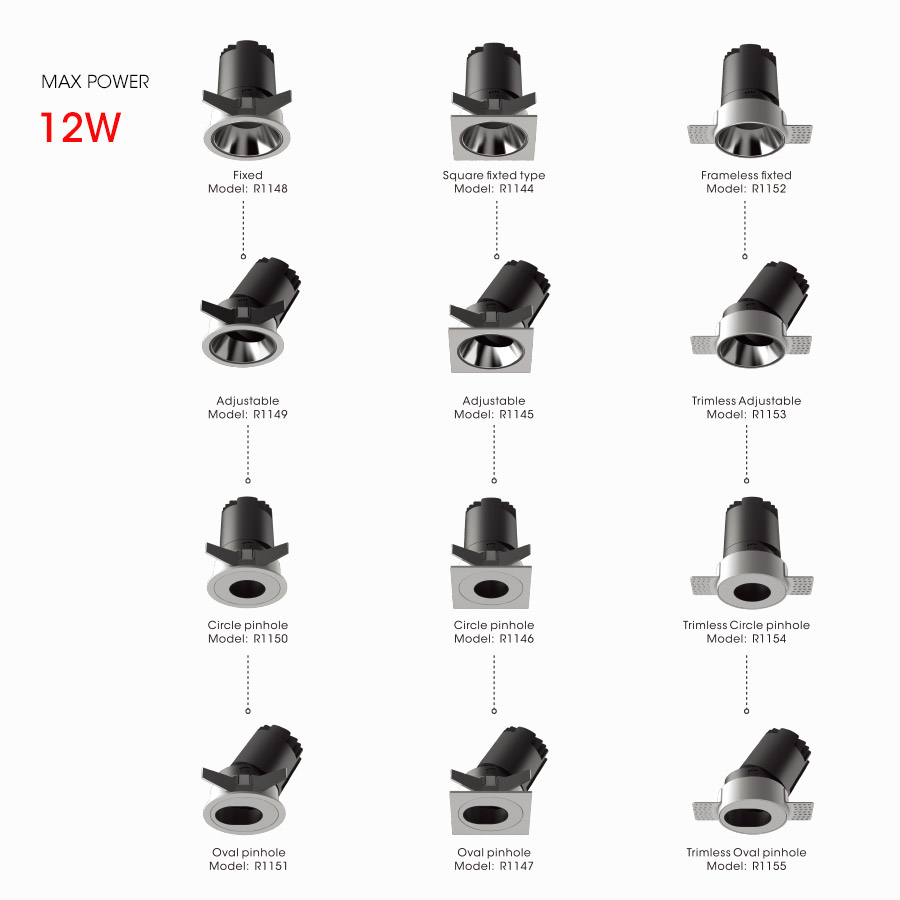

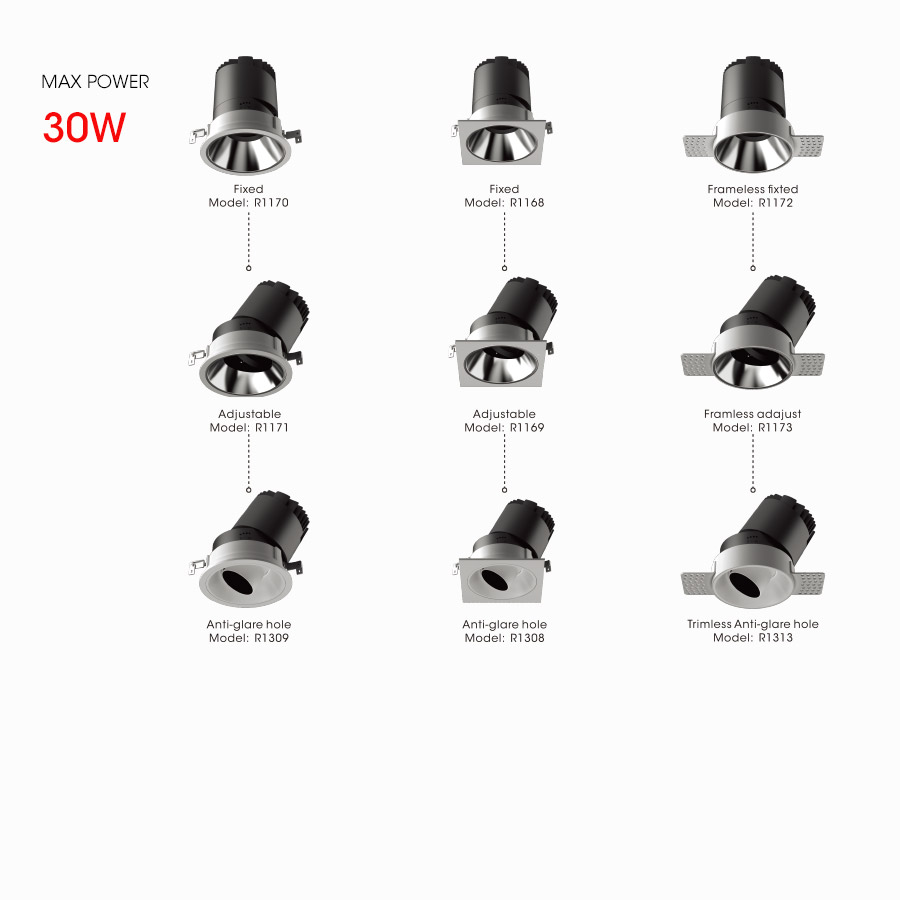

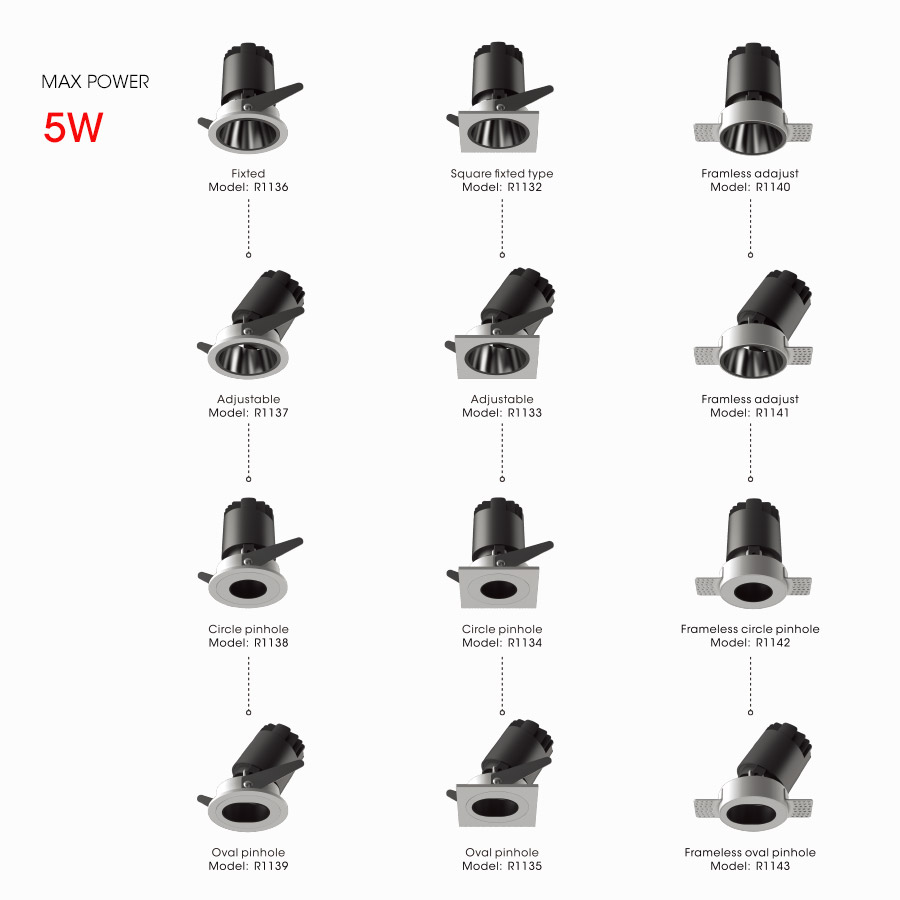

GEMINI Series Downlight R1132/R1144/R1156/R1168

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1132	15° / 24° / 38°	5W	80 lm/W	400 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1144	15° / 24° / 38°	12W	70 lm/W	850 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1156	15° / 24° / 38°	20W	70 lm/W	1400 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1168	15° / 24° / 38°	30W	70 lm/W	2100 lm	133 x 133x 145	Ø120 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

GEMINI Series Downlight R1133/R1145/R1157/R1169

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1133	15° / 24° / 38°	5W	80 lm/W	400 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1145	15° / 24° / 38°	12W	70lm/W	850 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1157	15° / 24° / 38°	20W	70 lm/W	1400 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1169	15° / 24° / 38°	30W	70 lm/W	2100 lm	133 x 133x 145	Ø120 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

GEMINI Series Downlight R1134/R1146/R1158

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1134	15° / 24° / 38°	5W	80 lm/W	400 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1146	15° / 24° / 38°	12W	70lm/W	850 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1158	15° / 24° / 38°	20W	70 lm/W	1400 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

GEMINI Series Downlight R1135/R1147/R1159

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1135	15° / 24° / 38°	5W	80 lm/W	400 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1147	15° / 24° / 38°	12W	70 lm/W	850 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1159	15° / 24° / 38°	20W	70 lm/W	1400 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

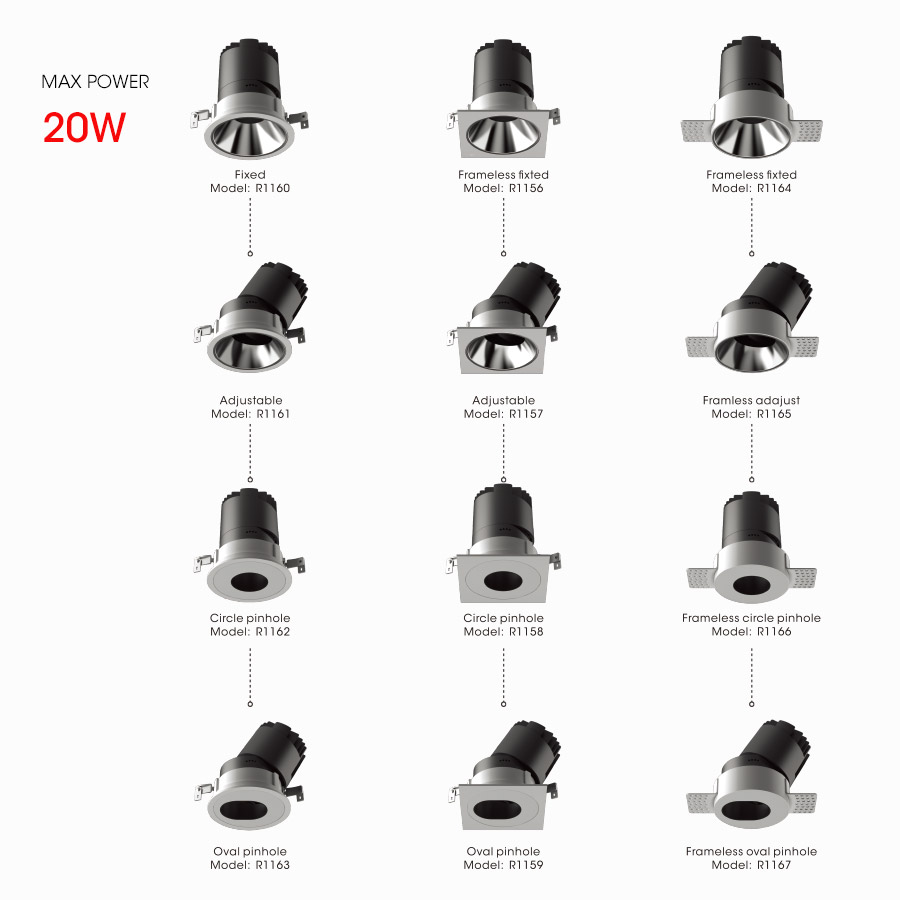

GEMINI Series Downlight R1136/R1148/R1160/R1170

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1136	15° / 24° / 38°	5W	80 lm/W	400 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1148	15° / 24° / 38°	12W	70 lm/W	850 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1160	15° / 24° / 38°	20W	70 lm/W	1400 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1170	15° / 24° / 38°	30W	70 lm/W	2100 lm	133 x 133x 145	Ø120 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

GEMINI Series Downlight R1137/R1149/R1161/R1171

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1137	15° / 24° / 38°	5W	80 lm/W	400 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1149	15° / 24° / 38°	12W	70 lm/W	850 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1161	15° / 24° / 38°	20W	70 lm/W	1400 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1171	15° / 24° / 38°	30W	70 lm/W	2100 lm	133 x 133x 145	Ø120 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

GEMINI Series Downlight R1138/R1150/R1162

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1138	15° / 24° / 38°	5W	45 lm/W	225 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1150	15° / 24° / 38°	12W	45 lm/W	540 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1162	15° / 24° / 38°	20W	45 lm/W	900 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

GEMINI Series Downlight R1139/R1151/R1163

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1139	15° / 24° / 38°	5W	45 lm/W	225 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1151	15° / 24° / 38°	12W	45 lm/W	540 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1163	15° / 24° / 38°	20W	45 lm/W	900 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

GEMINI Series Downlight R1140/R1164/R1172

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1140	15° / 24° / 38°	5W	80 lm/W	400 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1152	15° / 24° / 38°	12W	70 lm/W	850 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1164	15° / 24° / 38°	20W	70 lm/W	1400 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1172	15° / 24° / 38°	30W	70 lm/W	2100 lm	133 x 133x 145	Ø120 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

GEMINI Series Downlight R1141/R1153/R1165/R1173

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1141	15° / 24° / 38°	5W	80 lm/W	400 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1153	15° / 24° / 38°	12W	70 lm/W	850 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1165	15° / 24° / 38°	20W	70 lm/W	1400 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1173	15° / 24° / 38°	30W	70 lm/W	2100 lm	133 x 133x 145	Ø120 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

GEMINI Series Downlight R1142/R1154/R1166

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1142	15° / 24° / 38°	5W	80 lm/W	400 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1154	15° / 24° / 38°	12W	70 lm/W	850 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1166	15° / 24° / 38°	20W	70 lm/W	1400 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

GEMINI Series Downlight R1143/R1155/R1167

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1143	15° / 24° / 38°	5W	80 lm/W	400 lm	60 x 60 x 75	Ø50 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1155	15° / 24° / 38°	12W	70 lm/W	850 lm	86 x 86 x 104	Ø75 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1167	15° / 24° / 38°	20W	70 lm/W	1400 lm	105 x 105x 119	Ø95 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

Product Video

Features

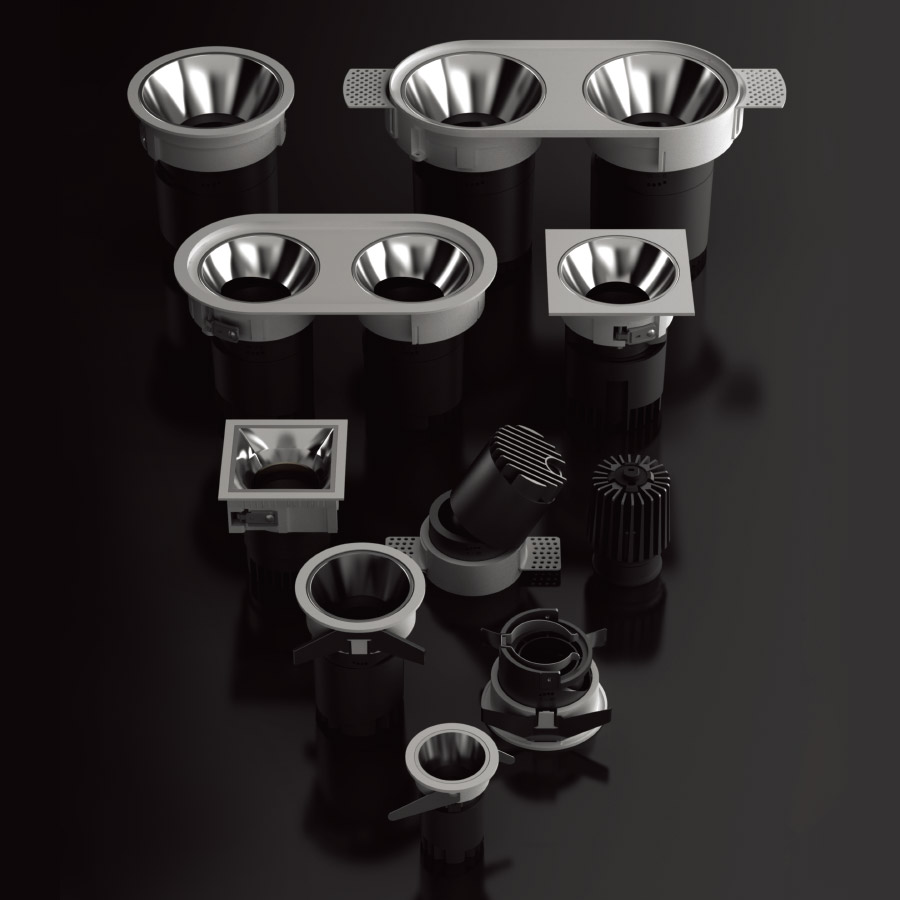

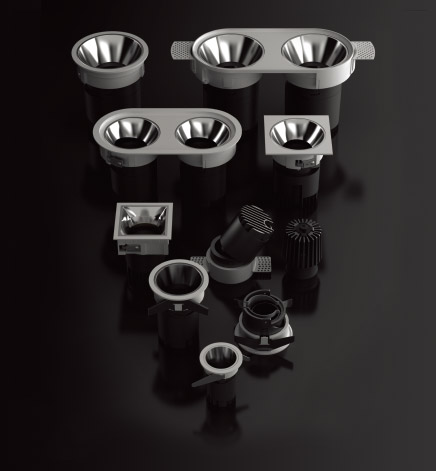

Family Design

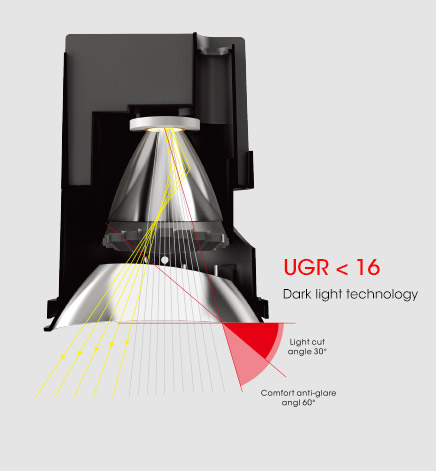

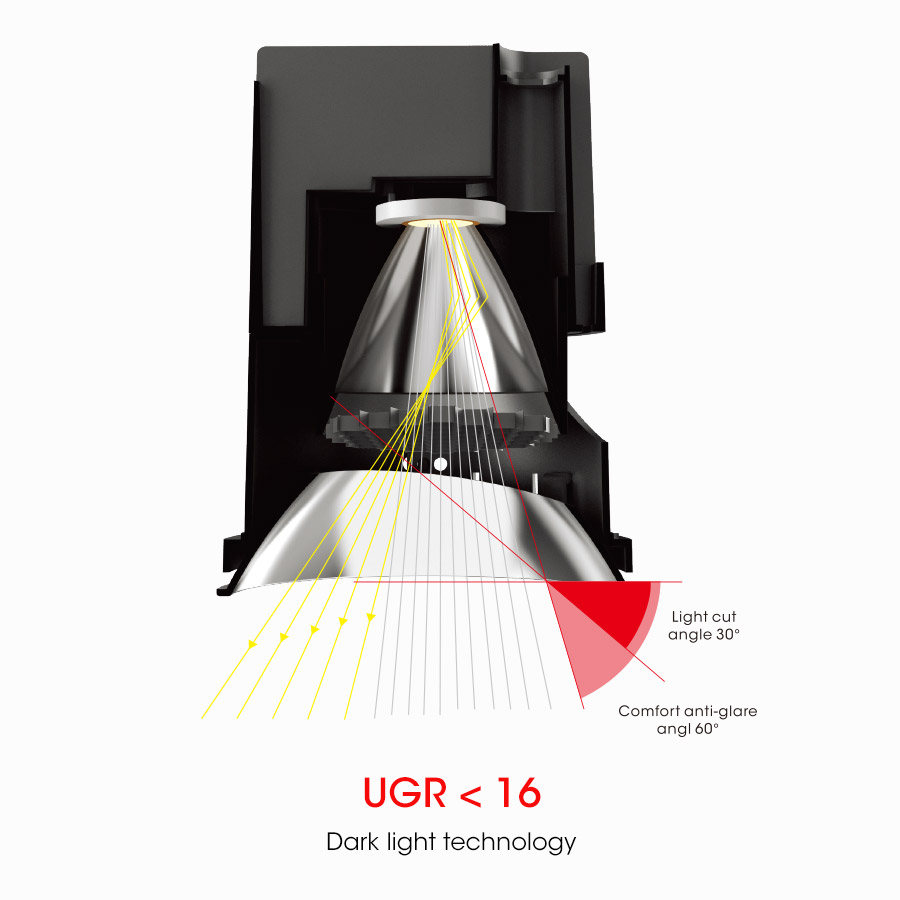

UGR<16
Dark light technology.

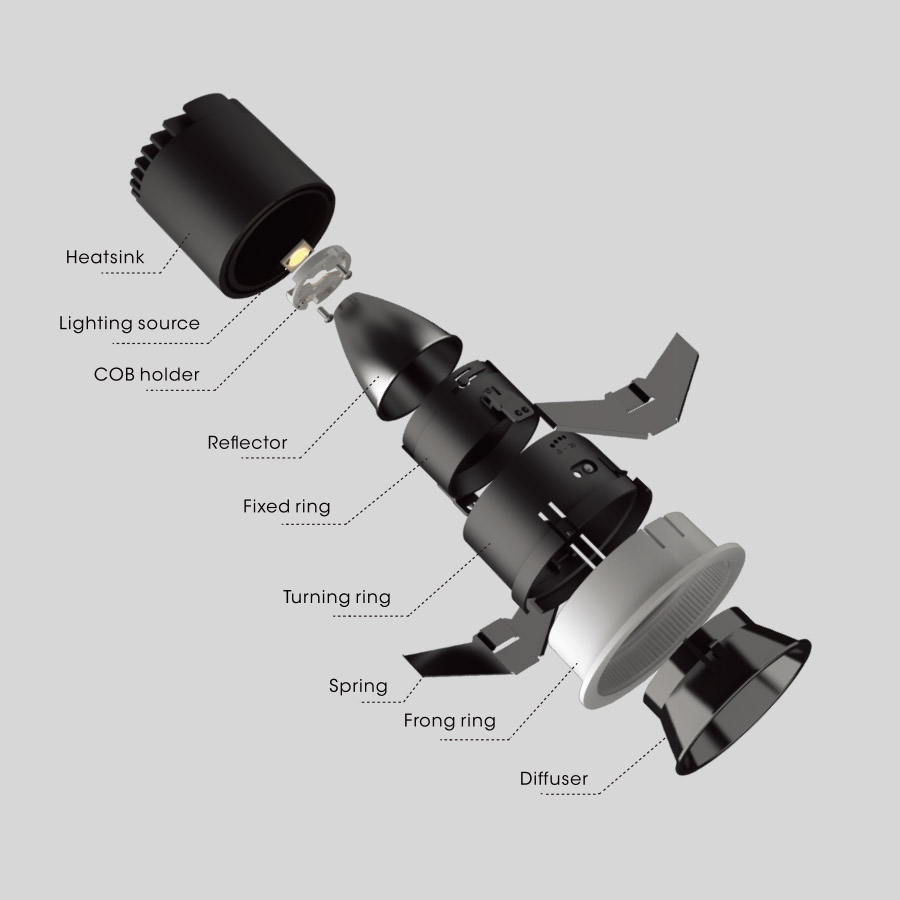

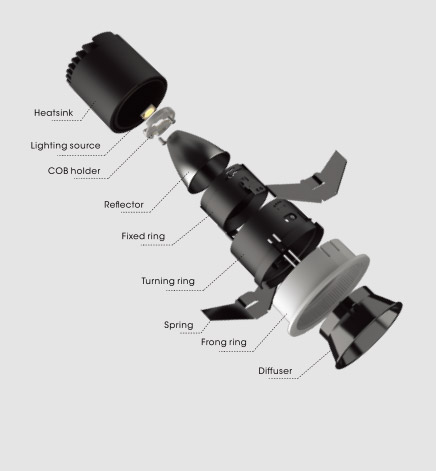

Split Structure

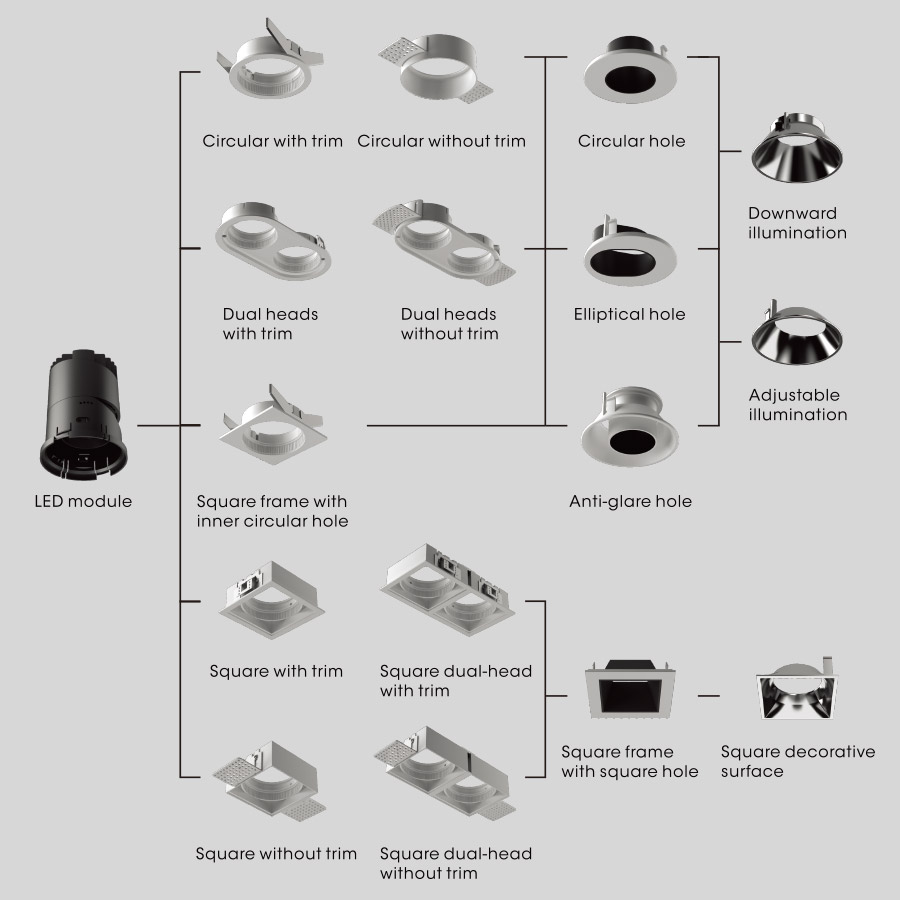

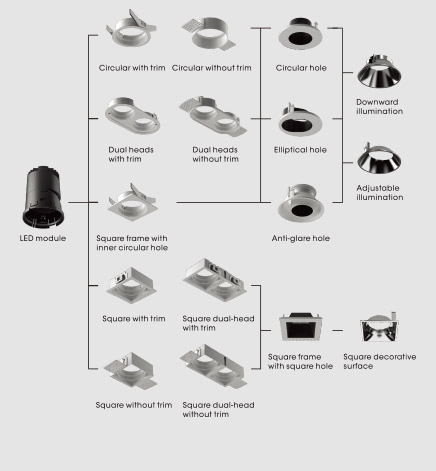

Modularization
Reasonable Installation Structure

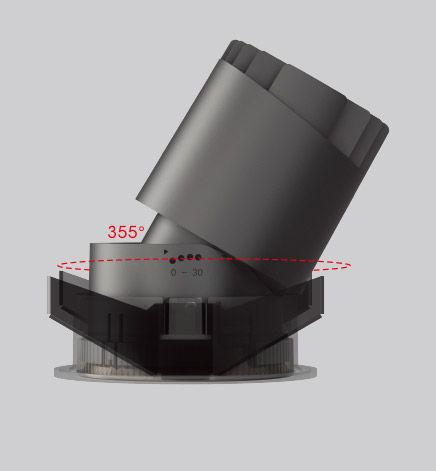

Rotation angle：355°

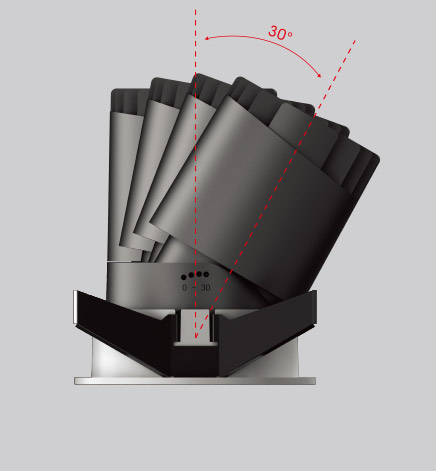

3Tilt angle：30°

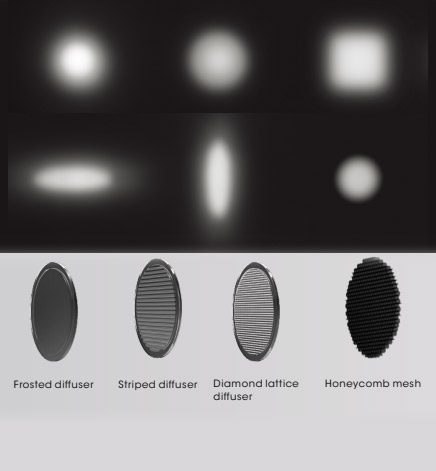

Antiglare fittings

Light effect

15°Spot
24°Flood
38°Flood

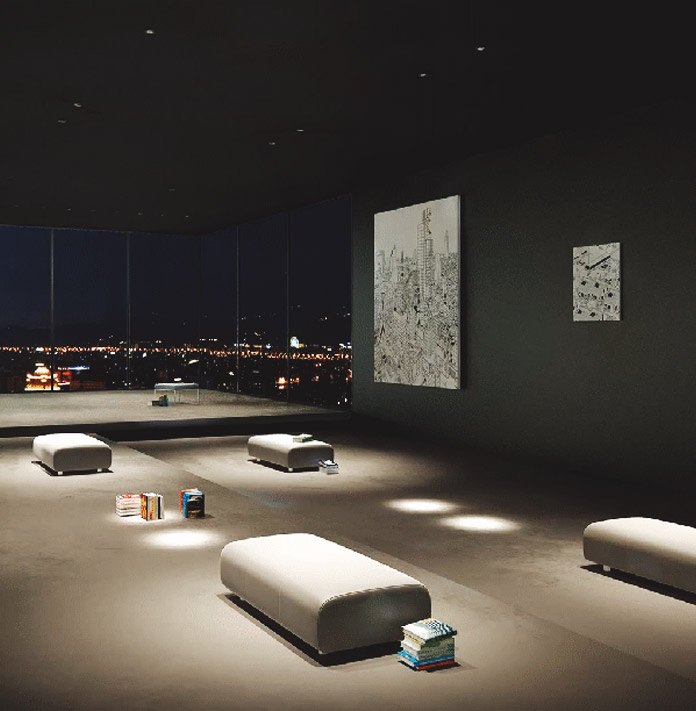

Application

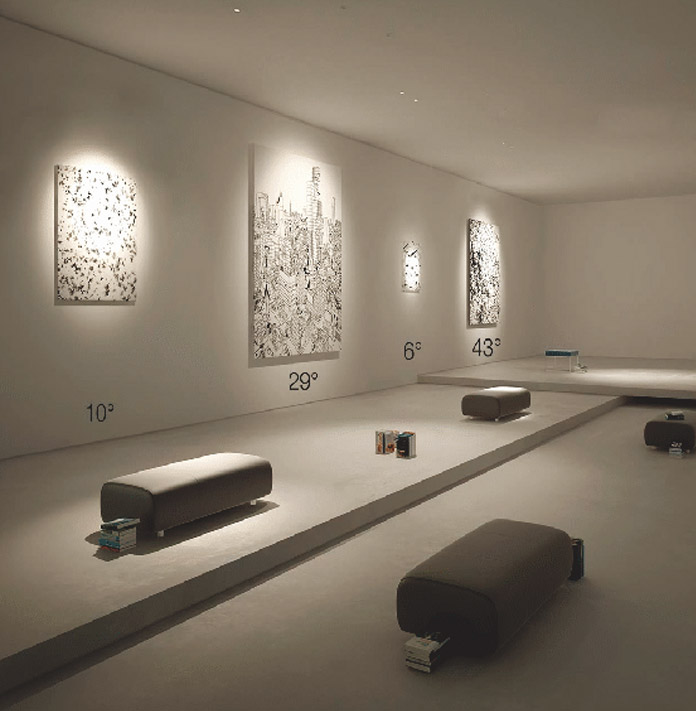

Product application in Mall Lighting

Mounting

First :Cutting a φ50mm hole on the ceiling
Second:Connect the Lamp with AC Power and Push the lamp into the ceiling
Third:Installation complete
Disassemble step: First:Catch and hold the lamp and pull it out
