GEMINI Series

Share:

Description

Deeply hiden reflector UGR < 16
Increase the length between the COB and the light outlet which can improve the anti-glare performance.
The light is reflected from the reflector and filtered by the anti-glare honeycomb to decrease stray light effectively.
Pre-embedded design, quick installation and convenient maintenance of fixtures Innovation and High Efficiency Black Light Mirror

Available reflectors:

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
R1137 Product R1137 5W 550LM φ50mm 15° / 24° / 38° φ60 x 73 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
R1149 Product R1149 12W 1100LM φ75mm 15° / 24° / 36° φ86 x 104 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
R1161 Product R1161 20W 1600LM φ95mm 15° / 24° / 38° φ105 x 119 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
R1171 Product R1171 30W 2100LM φ120mm 15° / 24° / 38° φ133 x 145 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No

Product Video

Share:

Features

  • Locating groove

    Horizontal rotation 355 degrees, every rotation degree, are just right. Four-stop tilt angle adjustment with positioning spot inside, and nipple resistance is just right. Accurate control of beam angle and spot effect is realized, and more vivid emotion is given to space.

  • Triple anti-glare

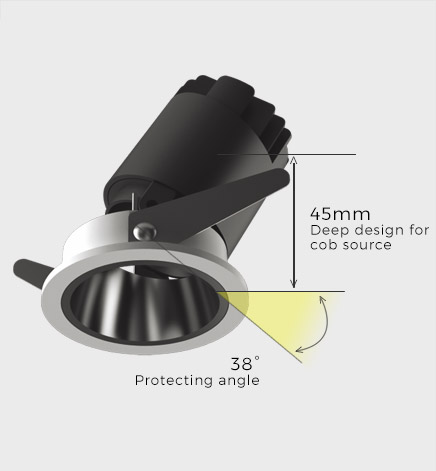

    Soft light effect, deep design (45mm) for cob source, large shading Angle 38°, better anti-glare effect.

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

Application

Product application in Hotel Lighting

Mounting

  • First :Cutting a φ50mm hole on the ceiling
  • Second:Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third:Installation complete
  • Disassemble step: First:Catch and hold the lamp and pull it out
