MON Series

Share:

Description

  • Protect angle>42, UGR<17.
  • Uniform light spot.
  • Structural improvement.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1399 15° / 24° / 36°/ 60° 5W 90 lm/W 450 lm Ø50 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1400 15° / 24° / 36°/ 60° 8W 75lm/W 600 lm Ø60 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1401 15° / 24° / 36°/ 60° 12W 75lm/W 900lm Ø75 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1402 15° / 24° / 36°/ 60° 5W 90 lm/W 450 lm Ø60 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1431 15° / 24° / 36°/ 60° 8W 75 lm/W 600 lm Ø70 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1431 15° / 24° / 36°/ 60° 12W 75 lm/W 900lm Ø85 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No

Product Video

Share:

Features

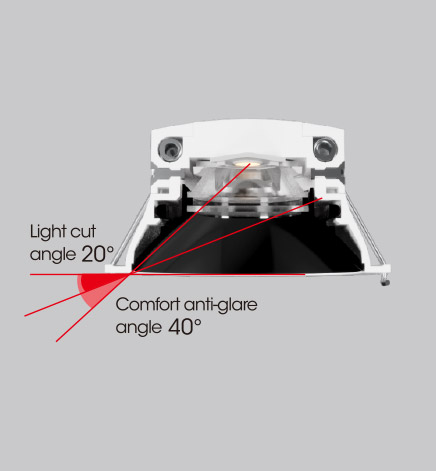

  • Protect angle>40, UGR<17

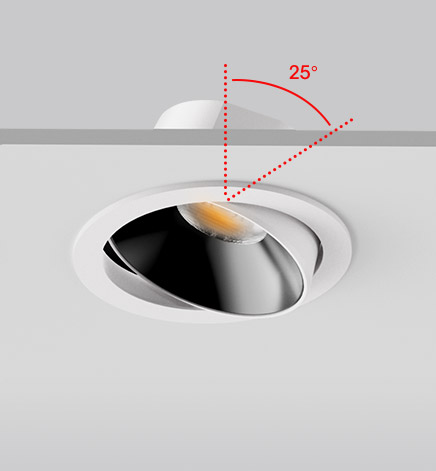

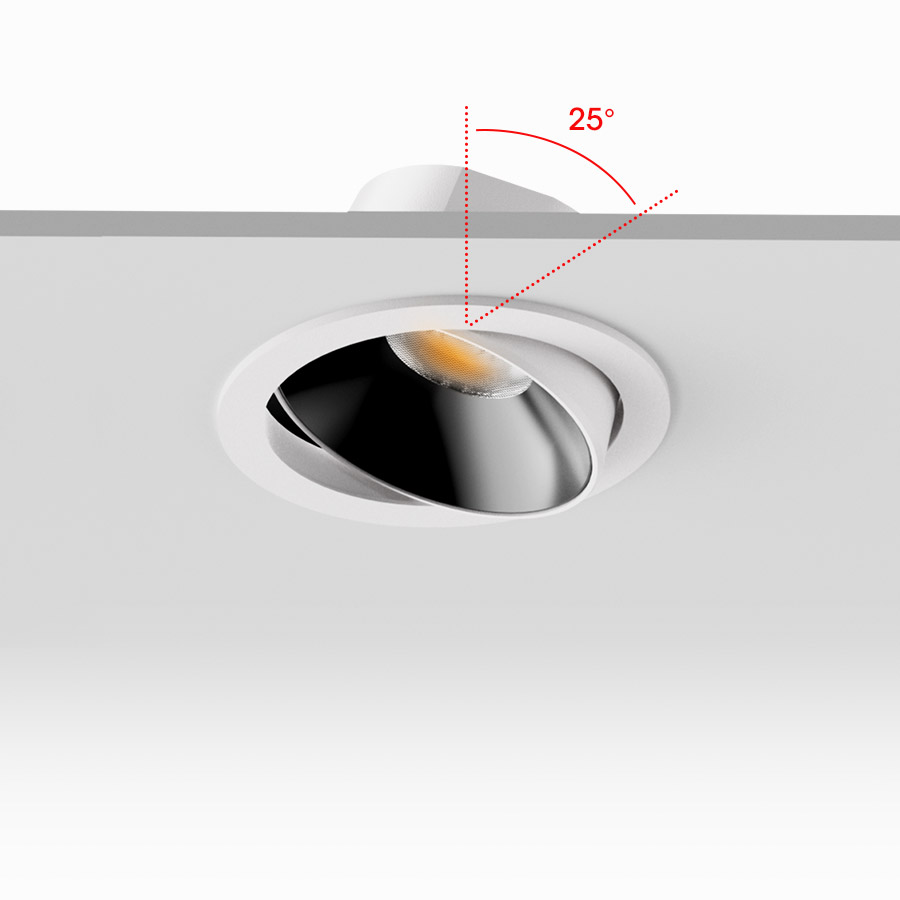

  • Flexible adjust beam angles

  • lamp height<42mm

  • Simple appearance

Application

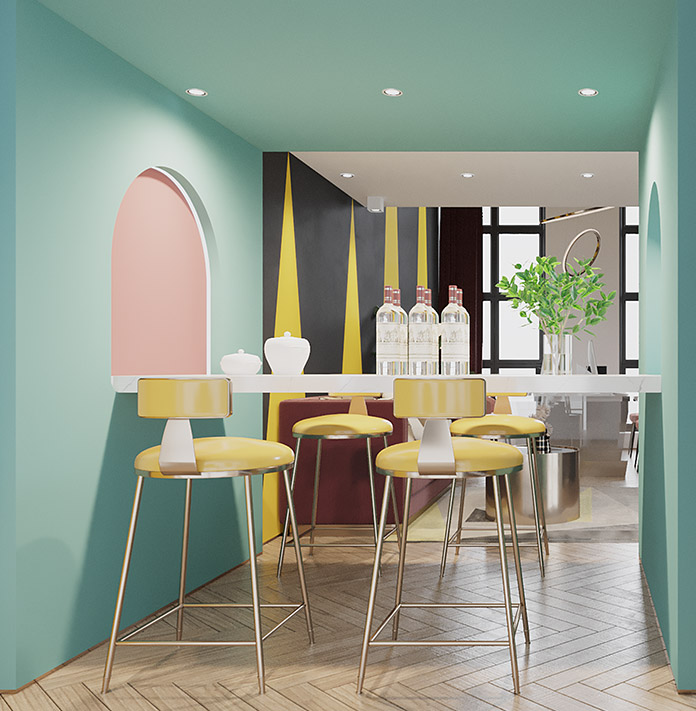

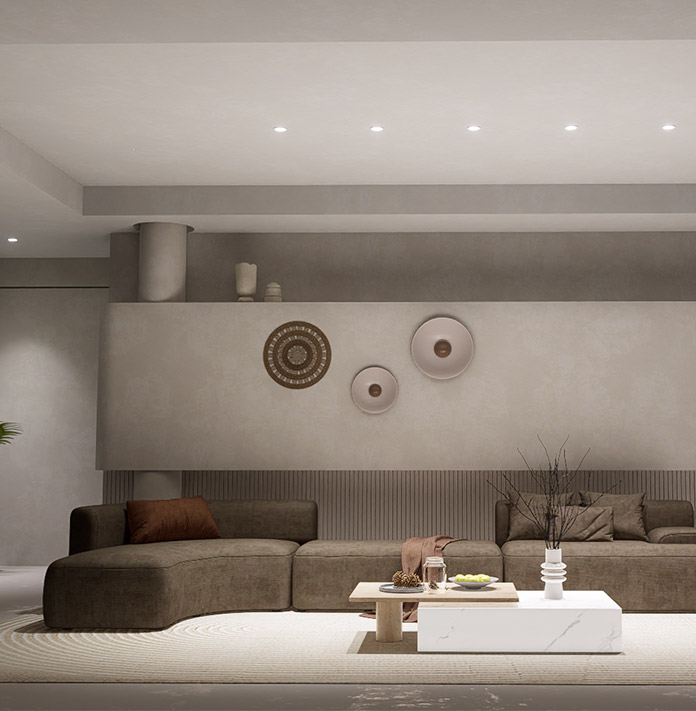

 Product application in Store Lighting, Mall Lighting

Mounting

  • First : Cutting a φ55 hole on the ceiling.
  • Second:Connect the Lamp with AC power and push the lamp into the ceiling.
  • Third:Installation complete.
  • Disassemble Step:Catch and hold the lamp and pull it out.
