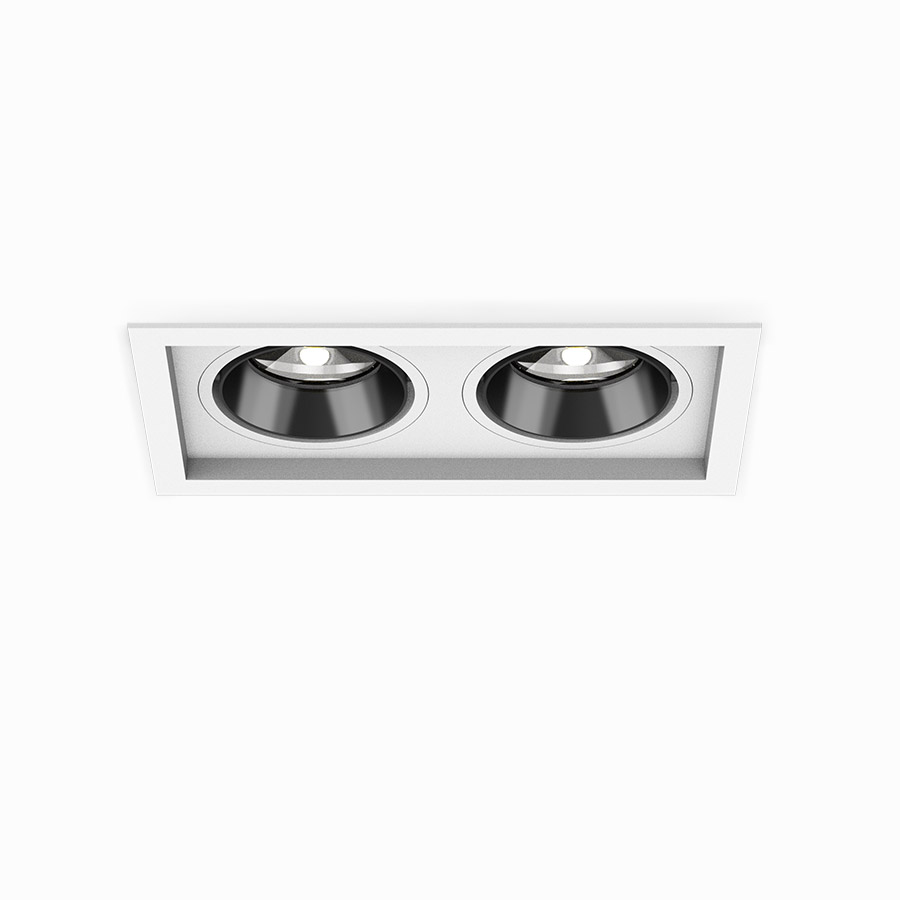

SECCO Series Downlight R1429/R1430/R1431

Share:

Description

  • Protect angle>40, UGR<13.
  • Uniform light spot.
  • Structural improvement.
  • Cost-effective Provide three construction.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1429 15° / 24° / 36° 2x6W 2x90 lm/W 2x540 lm 160x85 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1430 15° / 24° / 36° 2x10W 2x90 lm/W 2x900 lm 180x95 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No
R1014 Product R1431 15° / 24° / 36° 2x15W 2x90 lm/W 2x1350 lm 200x105 mm 3000K / 4000K / 5000K >90 Philips COB Tridonic No

Product Video

Share:

Features

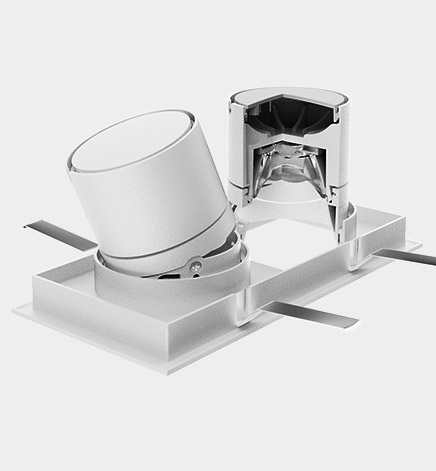

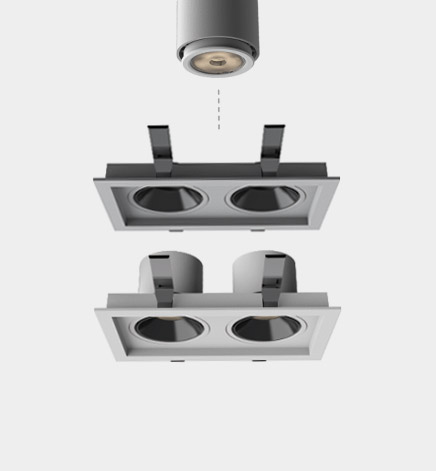

  • Compact and replaceable

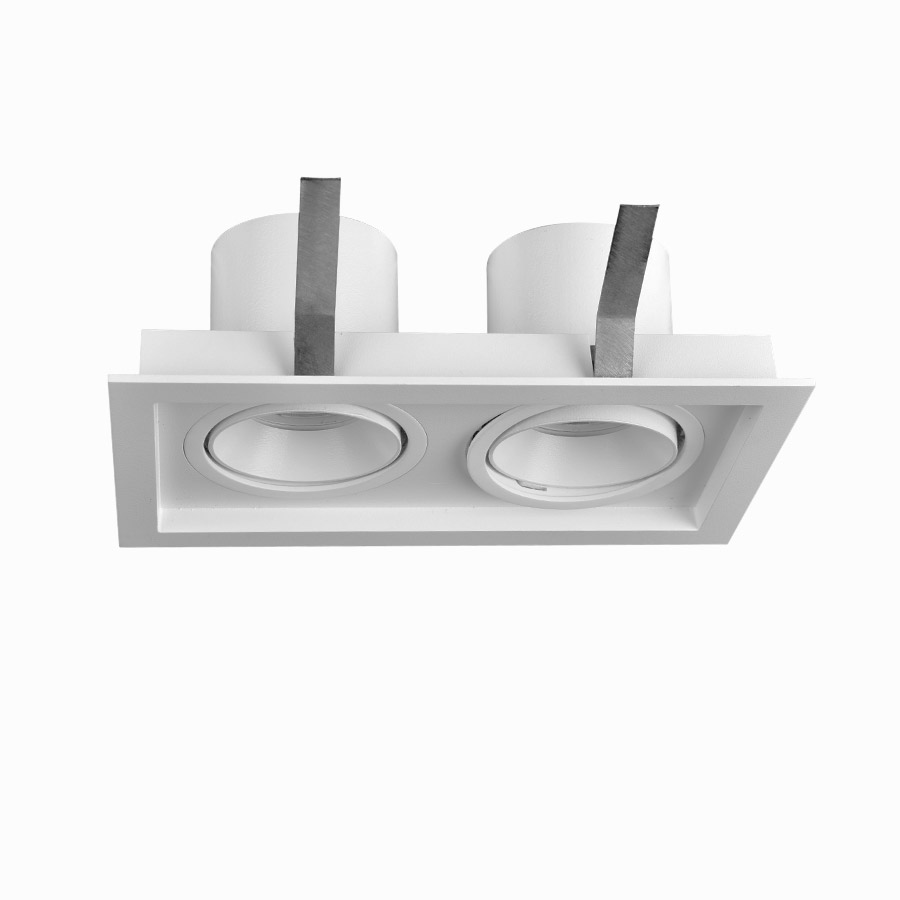

  • Easy installation

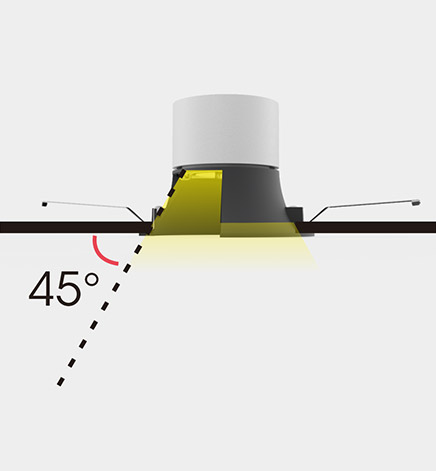

  • Protect angle>40, UGR<13

    Within this range, the intensity of light or direct light does not directly hit the human eye, reducing glare and providing better visual comfort and a comfortable lighting environment.

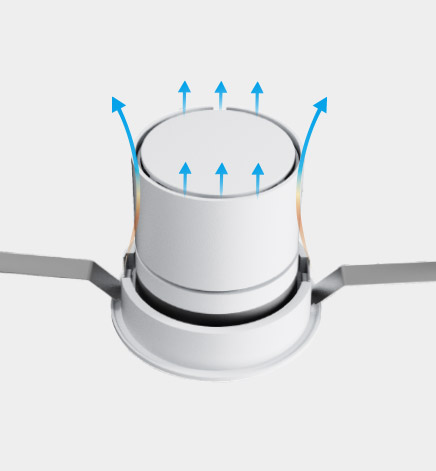

  • High efficiency heat dissipation

Mounting

  • 1.Cutting a 160*85mm hole on the ceiling.
  • 2.Put the Pre-sell into the pre-opened hole.
  • 3.Connect the input end of the Lamp with the power line.
  • 4.Put the driver into the Pre-sell.
  • 5.Put the Lamp into the Pre-sell.
  • 6.Installation complete.
