SOUDOU Series

Description

SOTEN LIGHTING-SOUDOU Series is high quality led track light with 5 year warranty. Providing varius beam angles reflectors(15°/25°/35°X 75°/75°X 75°/60°/rectangular/Wall washer effect etc) for choice and easy installation by hands only.

Downlight SOUDOU with CRI90+, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

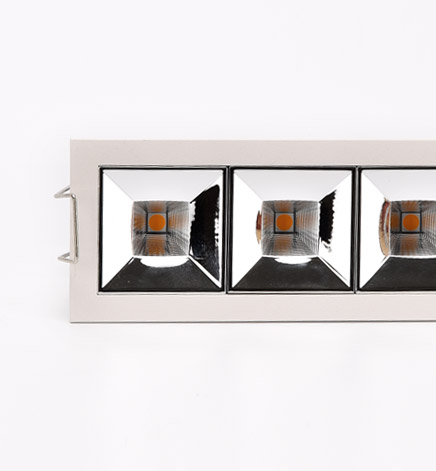

Led downlight shapes including square type, linear type with multiple combination. This series modified to be recessed type, trimless type, surface mounted type,pendant type and track light type.DALI dimmable with 2-3 channels available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No	Max Power	Luminous Flux	Ceiling Cut Out	Beam Angle	Dimension(mm)	CCT	CRI	Color	COB	Drive	Material	Control Method
R1228	4W	284LM	45 x 43mm	12°/ 35°/ 55°/ 75°/ 3535°/ 5555°/ 7575°/ 4080°/ Wall-washer	50 x 50 x 40.5	3000K / 4000K / 5000K	>80, >90	Black / White	Lumileds SMD	Tridonic	Aluminum Alloy	No
R1229	7.5W	543LM	80 x 43mm	12°/ 35°/ 55°/ 75°/ 3535°/ 5555°/ 7575°/ 4080°/ Wall-washer	85 x 50 x 40.5	3000K / 4000K / 5000K	>80, >90	Black / White	Lumileds SMD	Tridonic	Aluminum Alloy	No
R1230	10W	3000LM	115 x 43mm	12°/ 35°/ 55°/ 75°/ 3535°/ 5555°/ 7575°/ 4080°/ Wall-washer	120.5 x 50 x 40.5	3000K / 4000K / 5000K	>80, >90	Black / White	Lumileds SMD	Tridonic	Aluminum Alloy	No

Features

Muti-angle on options
Professional optical design, each luminous module 5 W, 100 lm/W, with nine different type of light, such as circular beams, rectangular beam, trapezoidal, oval, rectangle different type of light.
Easy to convert
Modular optical control device, high quality aluminum alloy radiator and light body combination, modular structure forfast assembly.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 95% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.
Triple anti-glare
Soft light effect, deep design for smd source, large shading Angle, better anti-glare effect.

Application

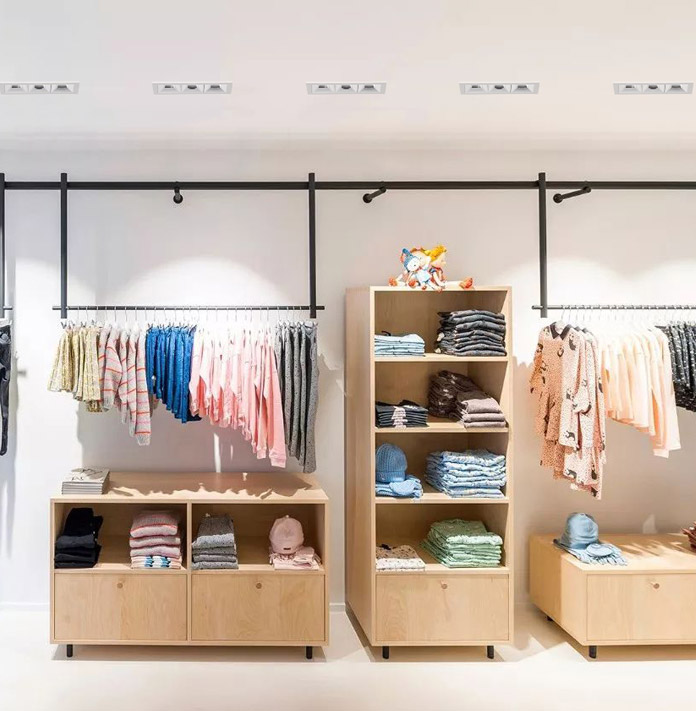

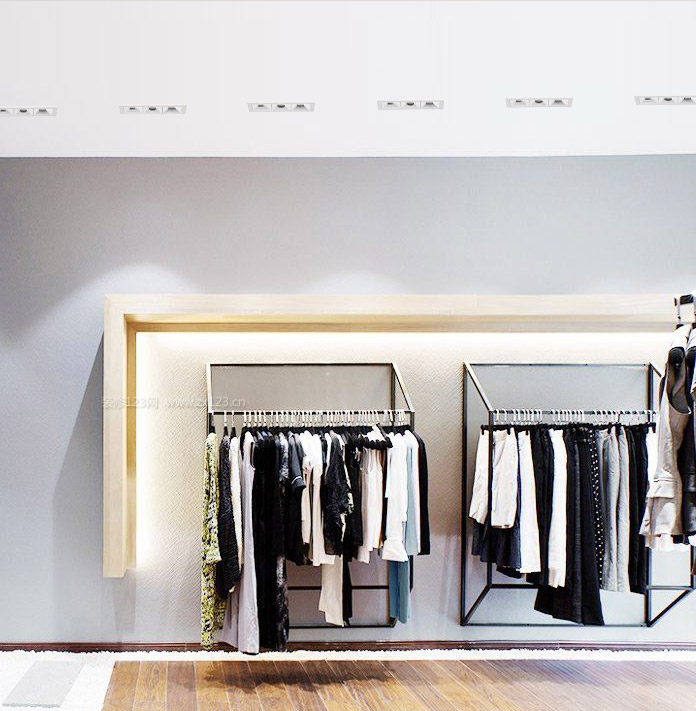

Product application in Store Lighting, Mall Lighting

Mounting

First :Cutting a 45 x 43mm or 80 x 43mm or 115 x 43mm hole on the ceiling
Second:Connect the Lamp with AC Power and Push the lamp into the ceiling
Third:Installation complete
Disassemble step: First:Catch and hold the lamp and pull it out
