SOTEN led grille light with CRI90+,800-1200lm per led grille light, dimmable is available.Flexible adjust beam angels, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led grille light . Perfect for art gallery and fashion shop lighting.

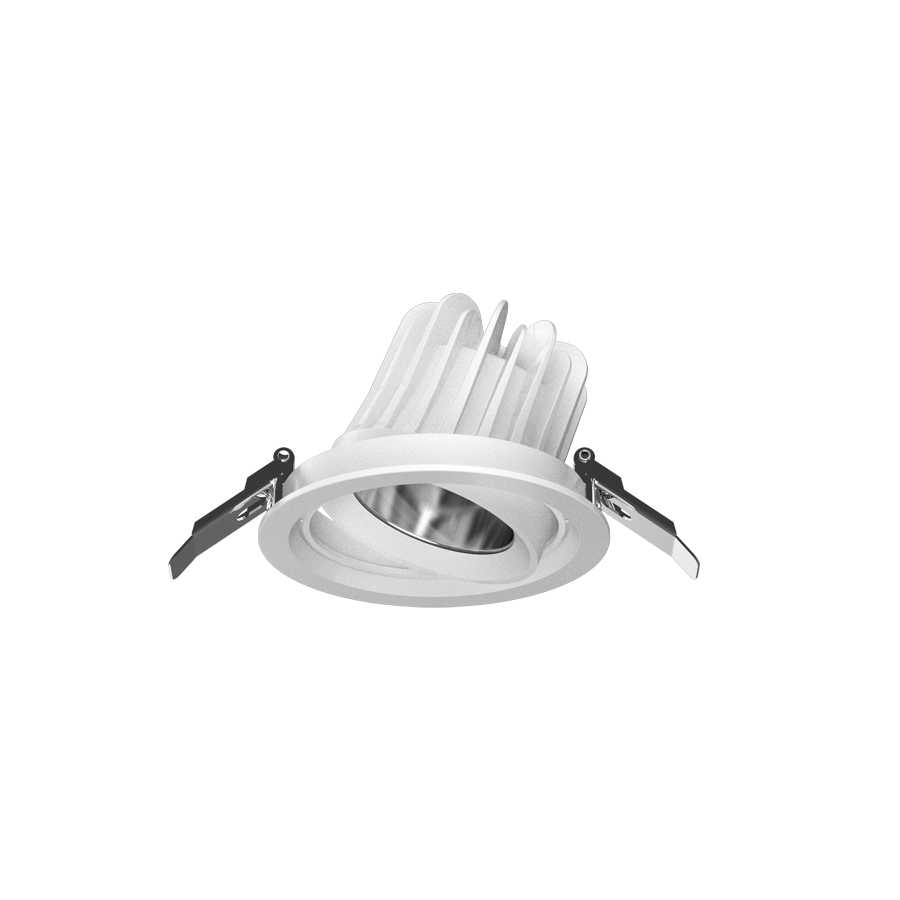

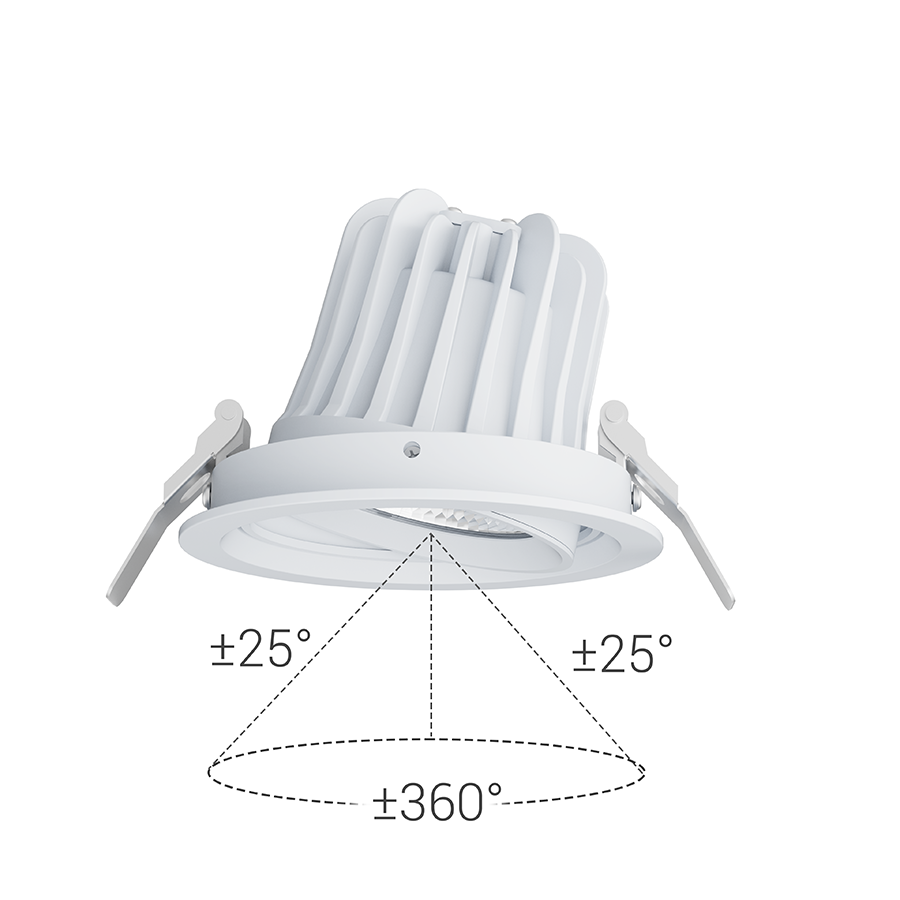

Adjustable Angle grille lights with 25 degrees vertical adjustment, more accurate and professional multi-angle lighting beams.
SOTEN led grille lights with High quality aluminum diecast light body, Cold forging process on high purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.
I like this lamp, I need ODM service.
You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!
| Product | Item No | Max Power | Luminous Flux | Beam Angle | Dimension(mm) | CCT | CRI | Color | COB | Drive | Material | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

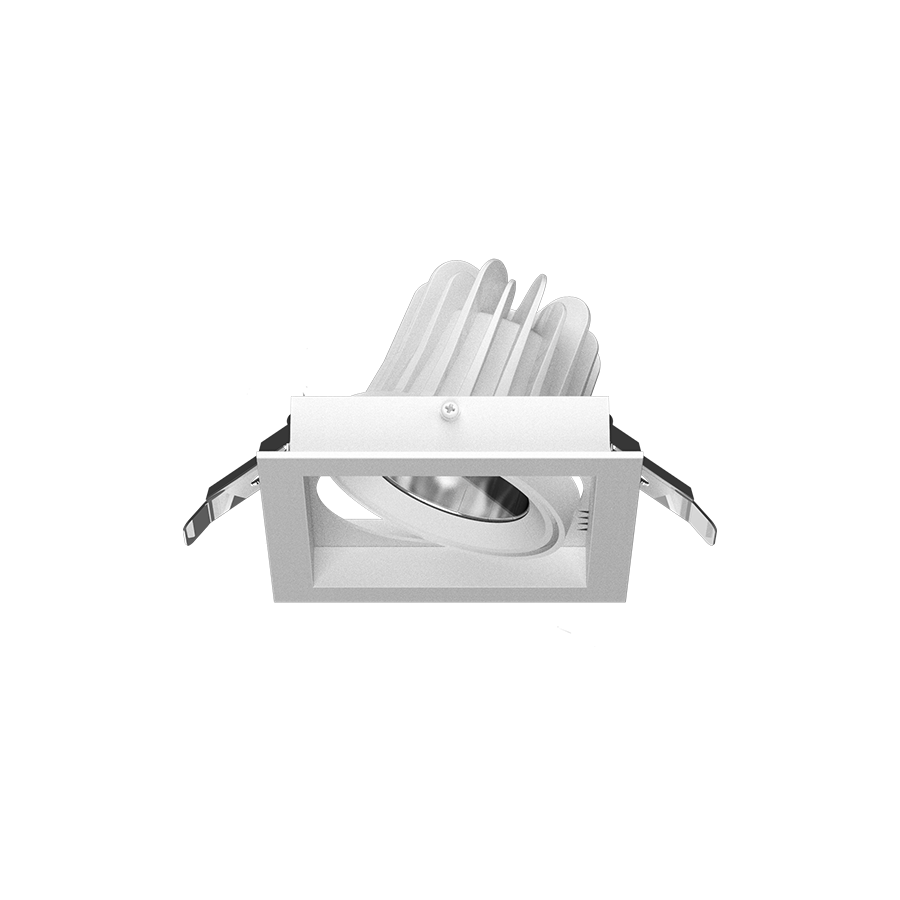

G1010 | 25W | 1800LM | 36° | 140 x140 x 100 | 3000K / 4000K / 5000K | >80, >90 | Black / White | Lumileds COB | Tridonic | Aluminum Alloy | No |
 |

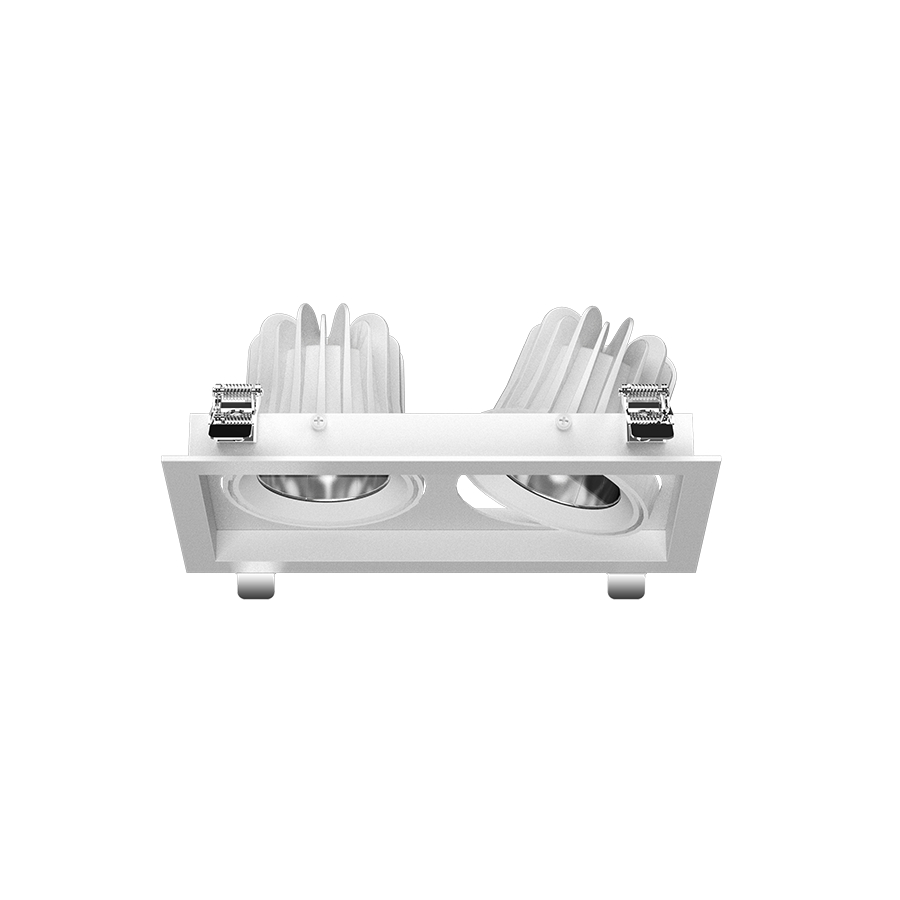

G1011 | 2x25W | 2x1800LM | 36° | 267 x140 x 100 | 3000K / 4000K / 5000K | >80, >90 | Black / White | Lumileds COB | Tridonic | Aluminum Alloy | No |
 |

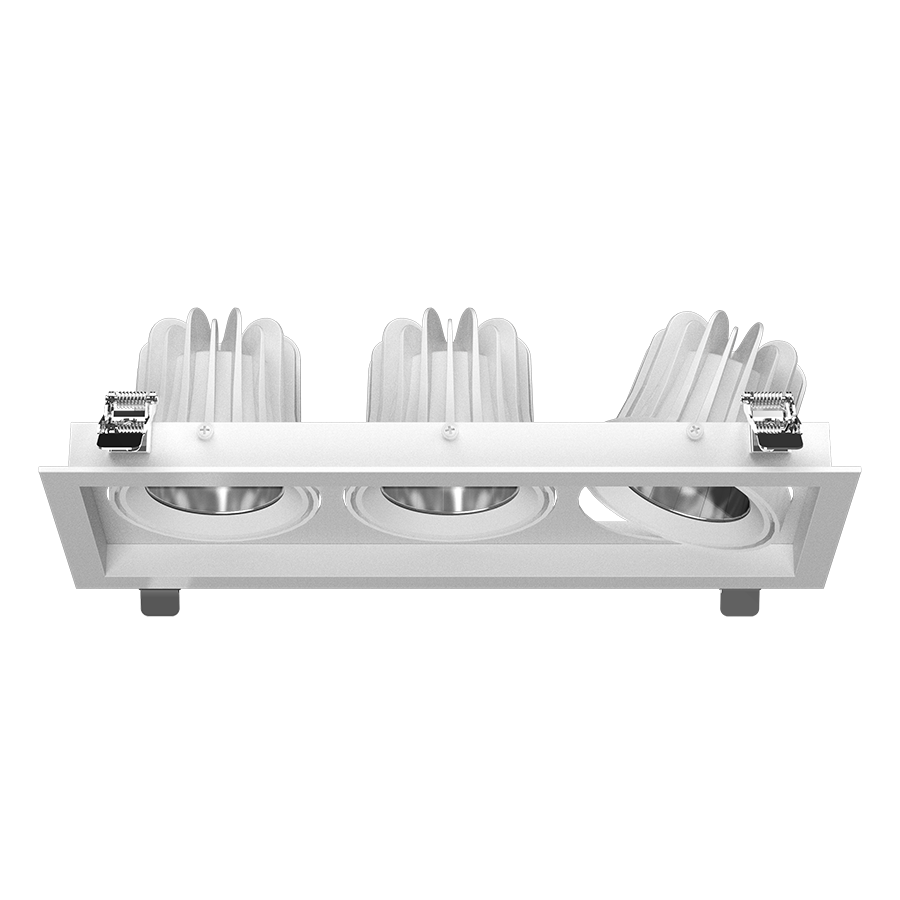

G1012 | 3x25W | 3x1800LM | 36° | 377 x140 x 100 | 3000K / 4000K / 5000K | >80, >90 | Black / White | Lumileds COB | Tridonic | Aluminum Alloy | No |

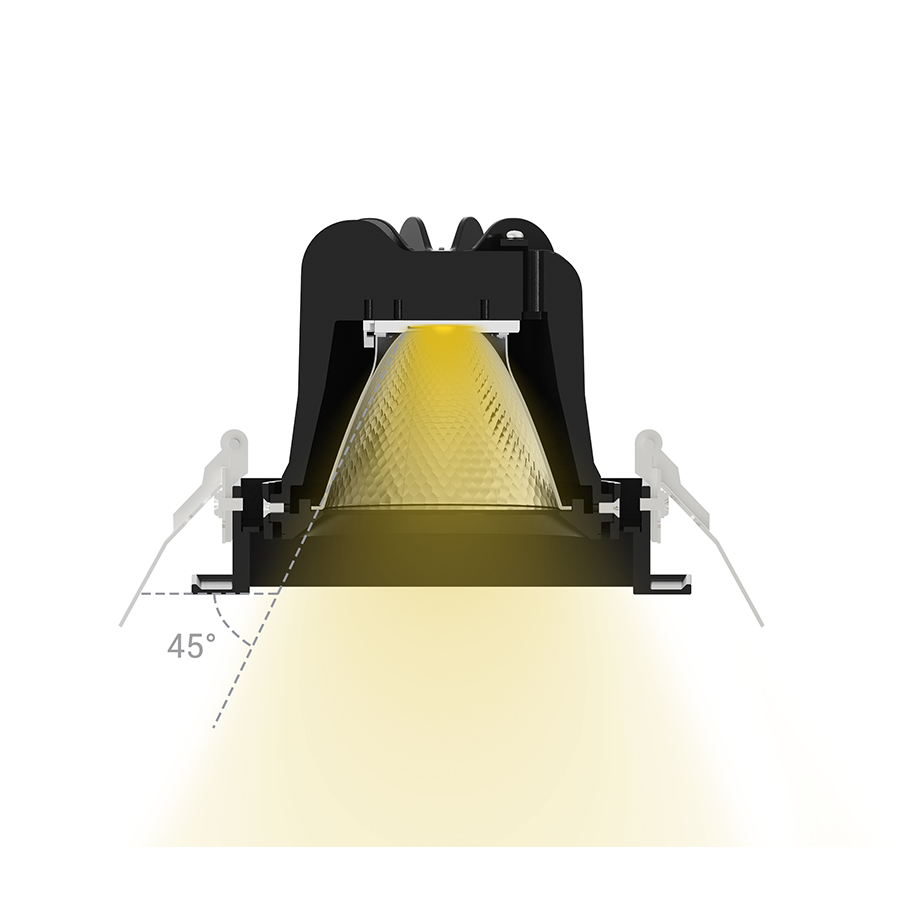

Triple anti-glare
Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

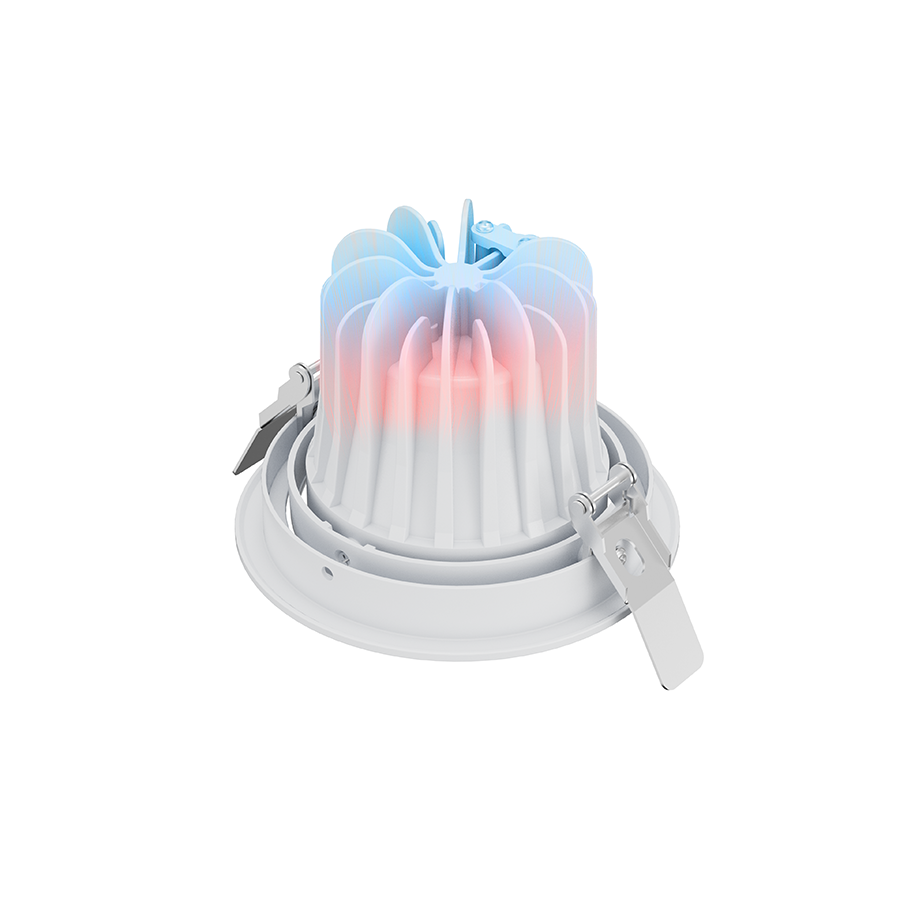

High efficiency heat dissipation
Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.
No visible flicker
Photovoltaic glass to improve lighting efficiency, bring out soft and comfortable lighting.
Product application in Store Lighting, Mall Lighting
Tel: +86-750-3778800 Fax: +86-750-3778811 E-mail: inquiry@soten.hk www.soten.hk Jinou Road, Jiangmen City, Guangdong, China
First :G1010 Cutting 125x125mm,G1011 Cutting 253x125mm hole on the ceiling.
Second:Connect the Lamp with AC Power and Push the lamp into the ceiling
Third:Installation complete
Disassemble step: First:Catch and hold the lamp and pull it out
