Description

SOTEN LED linear light F20 System is an integrated low voltage lighting system.

Thanks to advanced lighting technology, F20 series products could achieve its minimum size in construction and provide various installation ways such as recessed, surface mounted and pendant installation.

In the meantime, F20 System can provide different lighting resources such as base lighting, down lighting, accent lighting and wall washer(vertical) lighting to meet different project requirements.

SOTEN LED linear light F20 means containment and extension, F20 means everything is possible.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Max Power Luminous Flux Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
L1040 Product L1040 10W 920LM 100° 299x22.5x43 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No
L1041 Product L1041 20W 1115LM 100° 597x22.5x43 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No
L1042 Product L1042 30W 1856LM 100° 892x22.5x43 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No

Product Video

Share:

Features

  • F20 MAGNETIC ,SMART

    Free movement and combination.

  • F20 MAGNETIC ,SMART

    Surface mounted,Pendant Track,Recessed

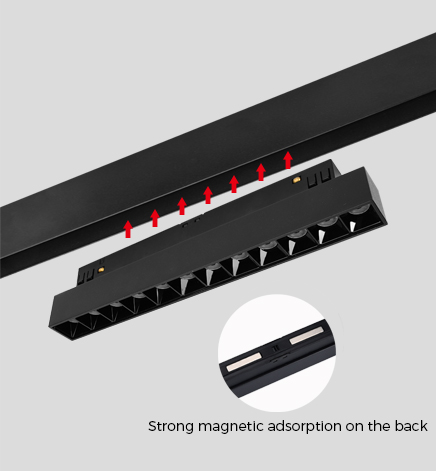

  • Magnetic mounting, quick disassembly

    After finishing the installation of the track rail, put the magnetic lamp into the rail.It can be easily disassembled by pressing the buttons.

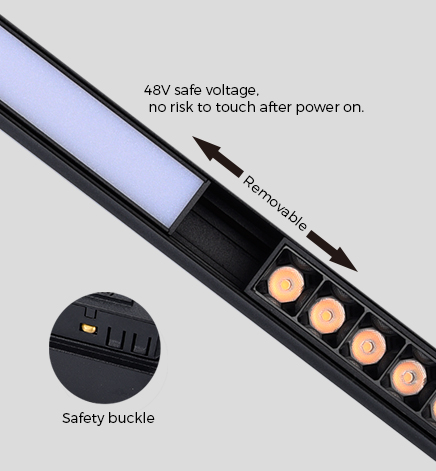

  • Free movement, unlimited

    After the magnetic lamps are installed, the position can be adjusted freely.

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling and wall, the track connection should be aligned installed.
  • After connecting the track with track, power on with the connector. Straight line installation can be used with a single straight circuit closer or two-stage circuit closer.
  • Adjustable conductive connector
  • Install the lamp on the track
  • Installation complete
  • Buckle both sides of the lamp and pull down to take out the lamp.
