X-SYSTEM Series

Share:

Description

SOTEN LED linear light X System is an integrated low voltage lighting system.

Thanks to advanced lighting technology, X series products could achieve its minimum size in construction and provide various installation ways such as recessed, surface mounted and pendant installation.

In the meantime, X System can provide different lighting resources such as base lighting, down lighting, accent lighting and wall washer(vertical) lighting to meet different project requirements.

SOTEN LED linear light X means containment and extension, X means everything is possible.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Max Power Luminous Flux Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
L1008 Product L1008 11W 663LM 15° / 30° / 45° 137.5 x38 x 154 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No
L1009 Product L1009 16W 980LM 15° / 30° / 45° 216.5 x38 x 154 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No

Product Video

Share:

Features

  • Safety 48V voltage

    Free movement and combination

  • X-SYSTEM ,Smart

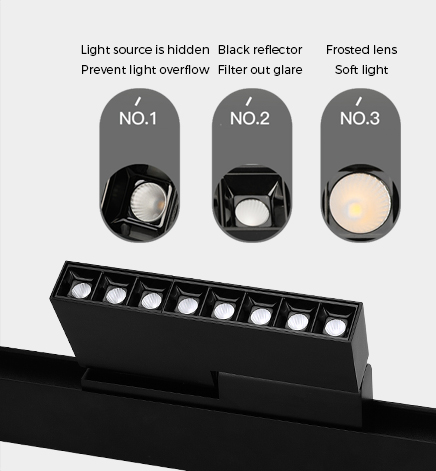

  • Triple anti-glare

    Light source is hidden,Black reflector,Frosted lens

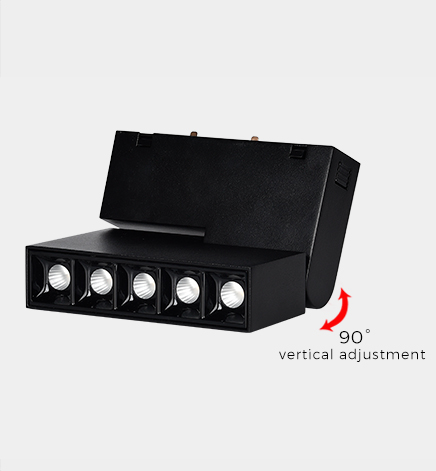

  • Flexible adjust beam angles

    90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

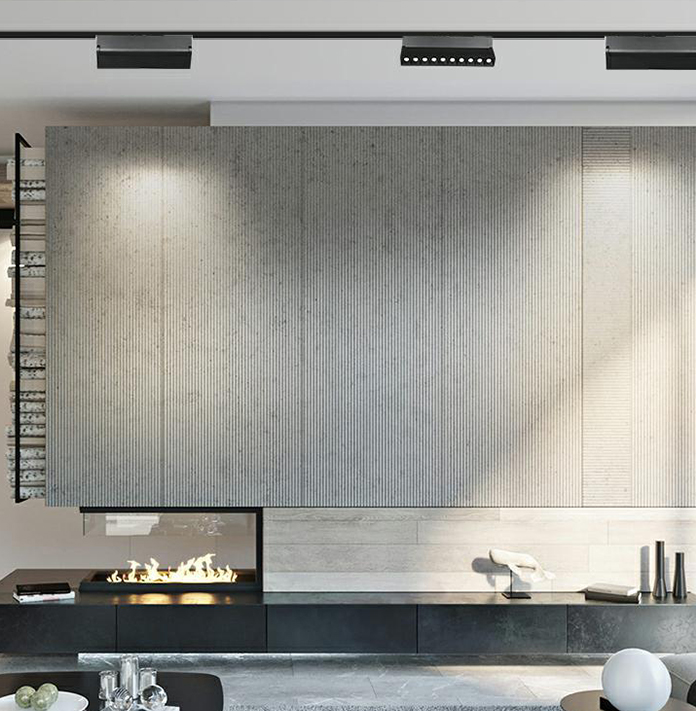

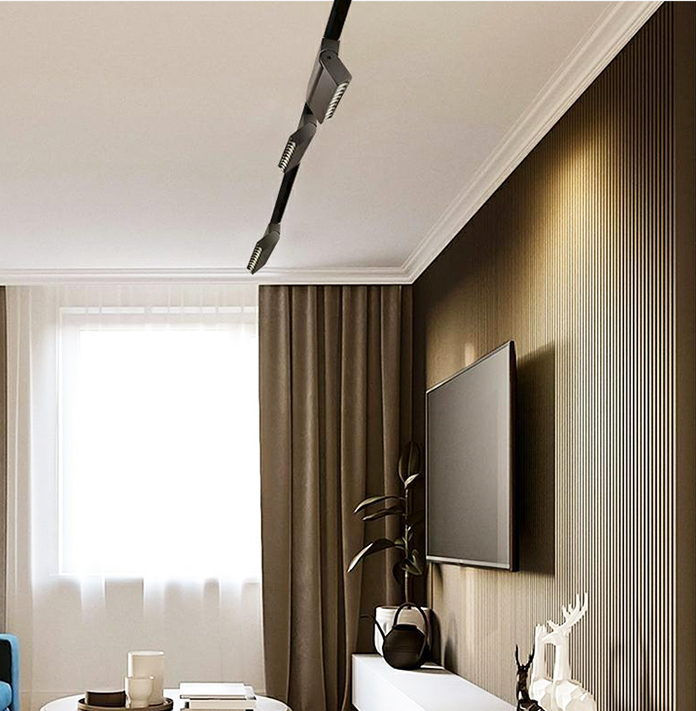

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling
  • Second: Press the button on both sides of the lamp and install it on the track
  • Installation complete
  • Pull out of the head of track downward
