CRYSTAL Series

Share:

Description

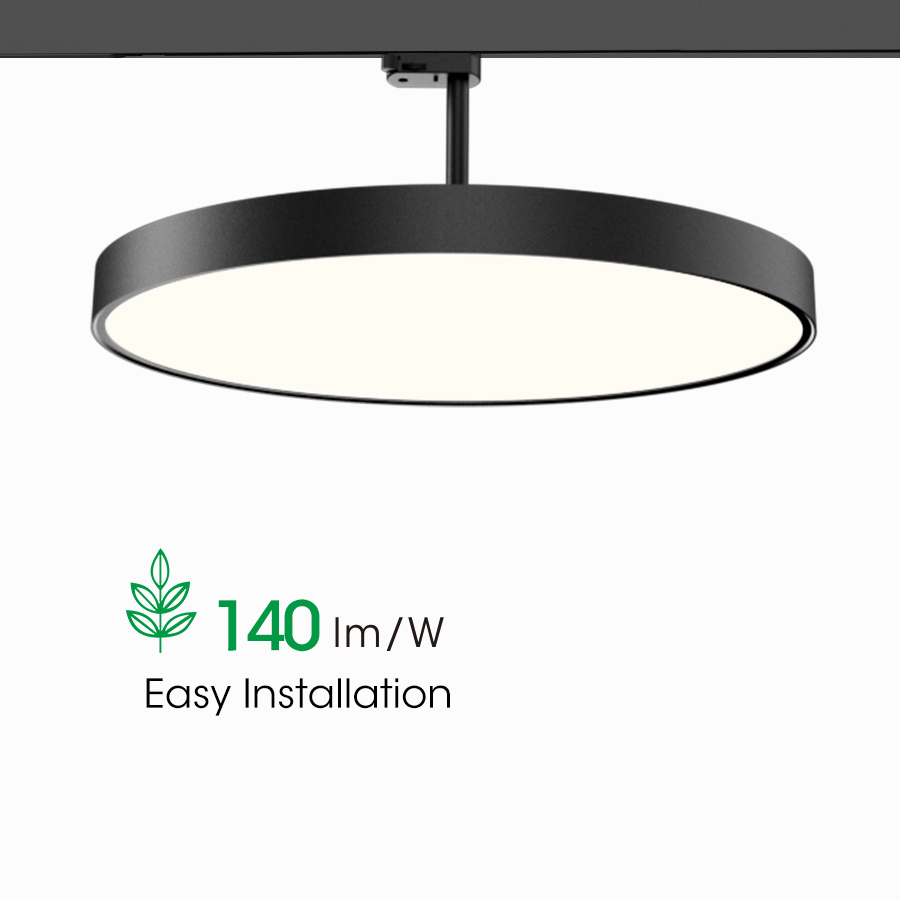

  • Efficiency 140lm/W.

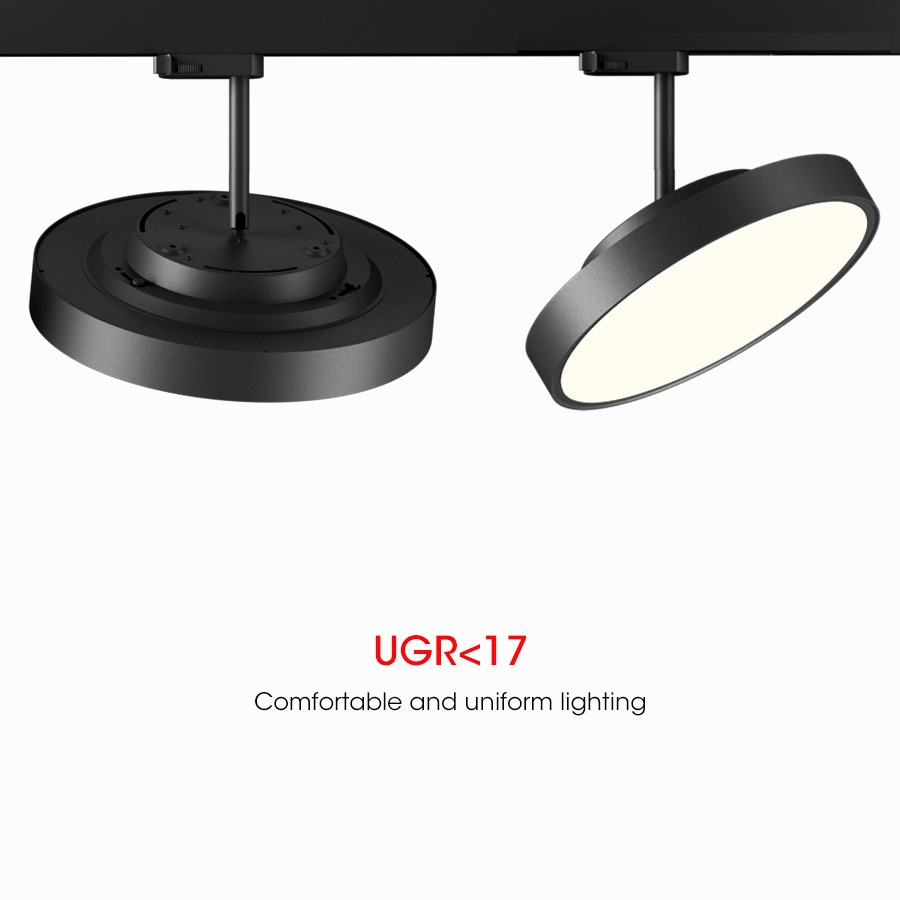

  • Comfortable and uniform lighting, Anti glare UGR<17.
  • Solid construction, Easy installation.

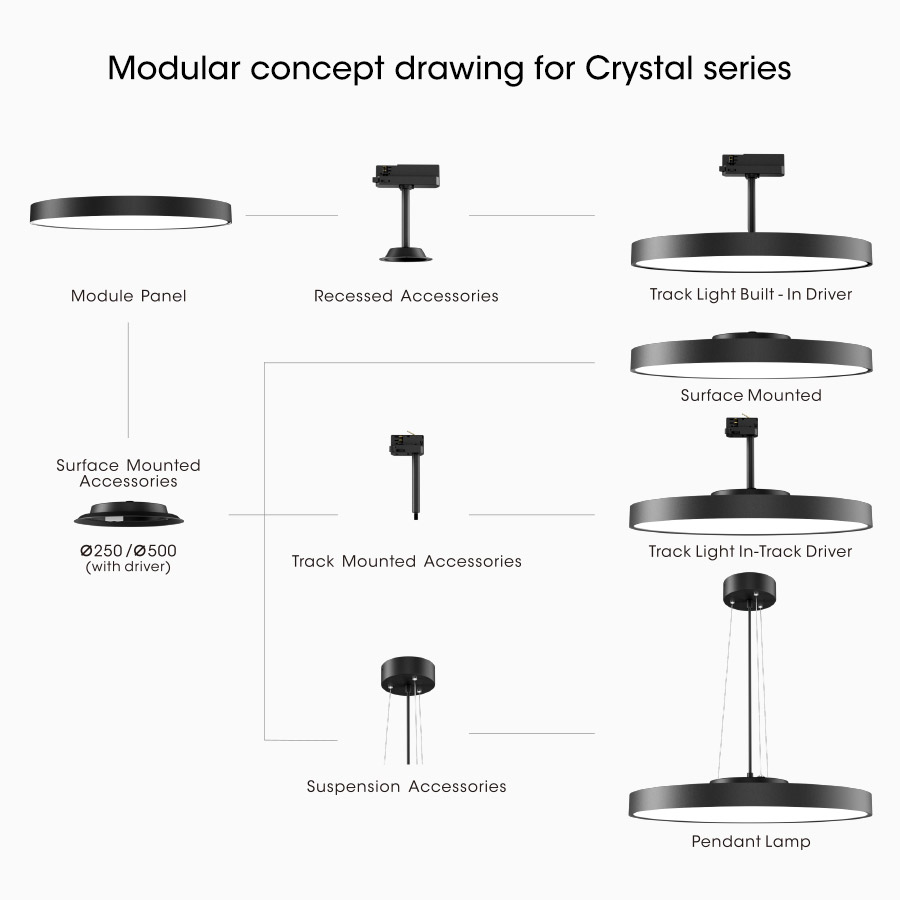

  • Provide 3 types modular structure.
  • Simple and neat appearance.

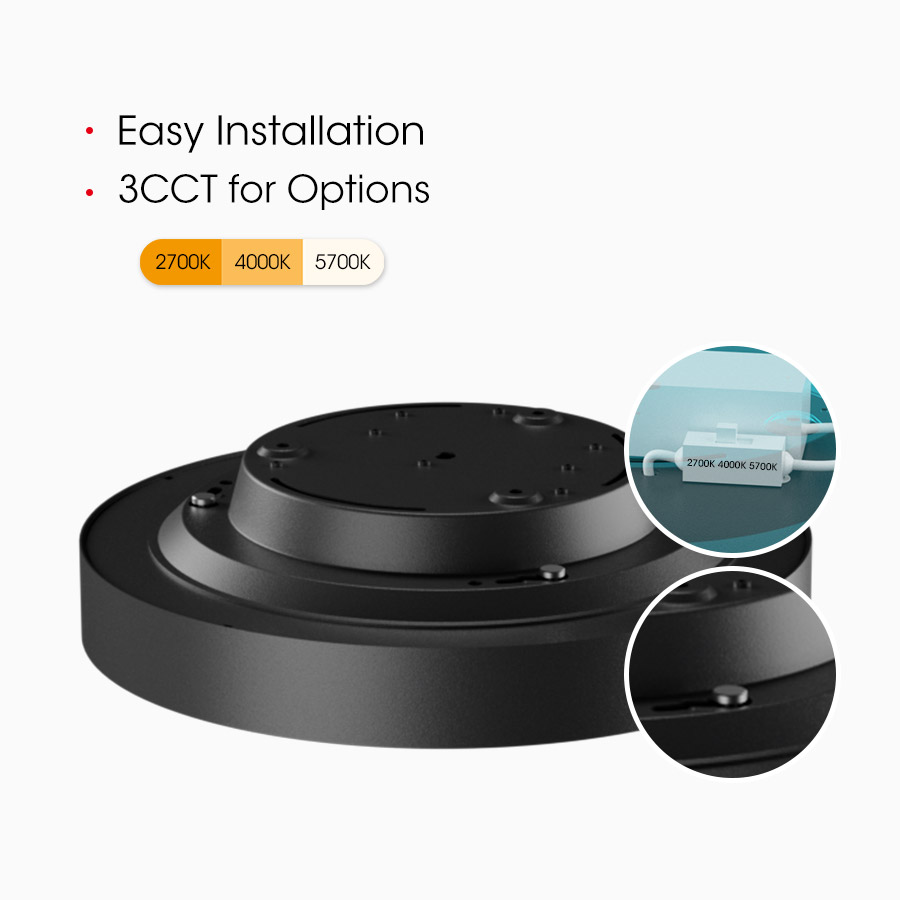

  • 3CCT switchable for optional.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension(mm) CCT CRI Color SMD Drive Control Method
P1028 Product T1224-INS 120° 28W 140 lm/W 3900 lm 2700K / 4000K / 5700K ≥95 Black / White Bridgelux Philips No
P1028 Product T1225-INS 120° 34W 140 lm/W 4800 lm 2700K / 4000K / 5700K ≥95 Black / White Bridgelux Philips No
P1028 Product T1226-INS 120° 40W 140 lm/W 5600 lm 2700K / 4000K / 5700K ≥95 Black / White Bridgelux Philips No

Product Video

Share:

Features

  • Simple and neat appearance

    Solid construction, Easy installation.

  • Comfortable and uniform lighting

    Efficiency 140lm/W, Anti glare UGR<17.

  • 3CCT switchable for optional

    Uniform and soft lighting.

  • 2700K/4000K/5700K

    The selection of appropriate color temperature can create different visual effects and ambiance, thereby enhancing the comfort and usability of a space.

Application

 Product application in Store Lighting, Mall Lighting

Mounting
