PRO Series

Description

SOTEN LED track light with CRI90+,90-100lm per LED track light, dimmable is available.Flexible adjust beam angels, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

Universal line voltage led track lighting heads, fit in 3 phase 4 wires track systems.Adjustable Angle track lights with 355 degrees horizontal rotation, 90 degrees vertical adjustment, more accurate and professional multi-angle lighting beams.

SOTEN track lights with High quality aluminum diecast light body, Cold forging process on high purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	CCT	CRI	COB	Drive	Control Method
T1162	15° / 24° / 36° / 45°	20 W	101 lm/W	2020 lm	195 x 70 x 218 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No
T1163	18° / 24° / 36° / 45°	30 W	106 lm/W	3180 lm	195 x 80 x 228 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No
T1164	18° / 24° / 36° / 45°	40 W	103 lm/W	4120 lm	195 x 90 x 248 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No

Features

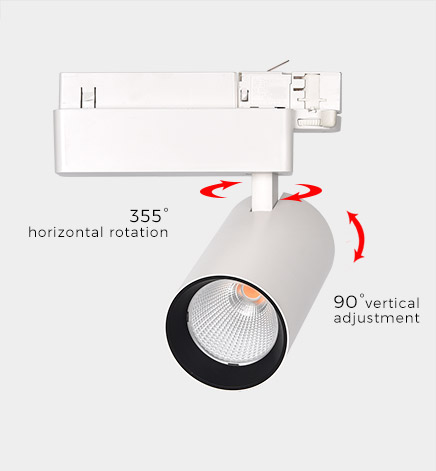

flexible adjust beam angles
355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

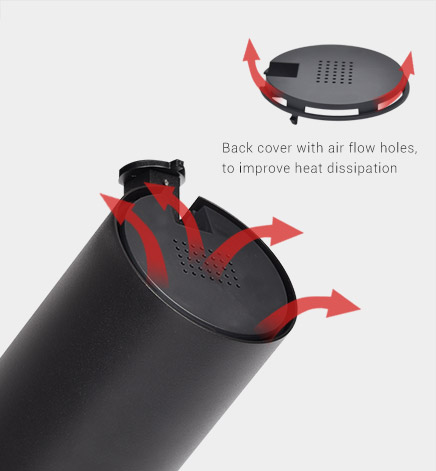

High efficiency heat dissipation
Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.
Triple anti-glare
Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

Light effect

15°Spot
24°Flood
38°Flood
°
°
°
°
°
°

Application

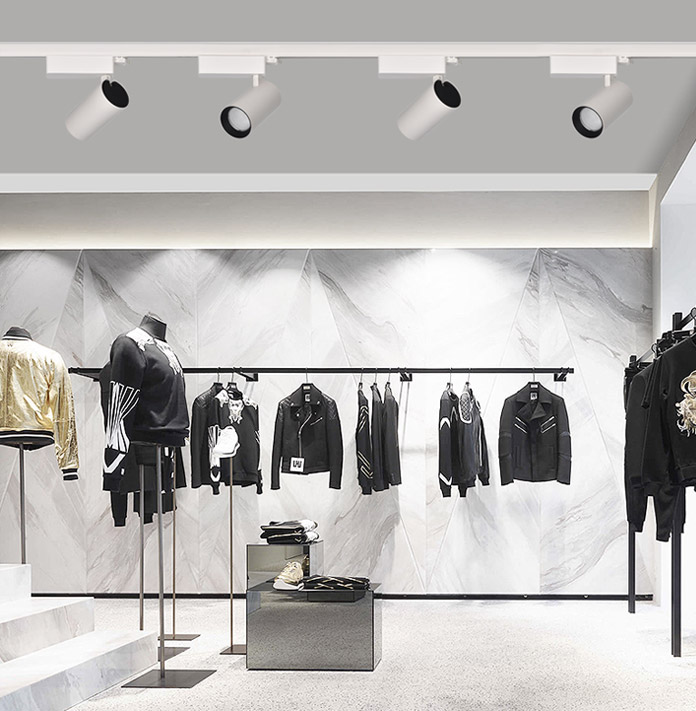

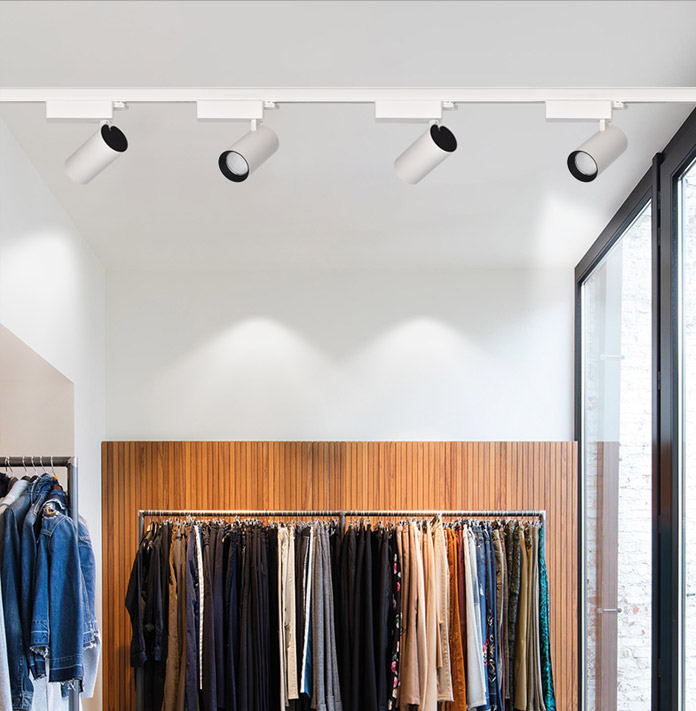

Product application in Store Lighting, Mall Lighting

Mounting

Install the track on the ceiling
Turn the power supply to "off" position as picture 2.1, Rotate the shift as picture 2.2, Assembly the trck head into track as picture 2.3
Rotate the shift to 90 degree
Rotate "off 1/2/3" as your requirement, switch can rotate 360 degree in clockwise and anticlockwise
Installation complete

Turn the power supply to "off" position and Rotate the shift to 90 degree
Pull out of the head of track downward
