TUBO-G2 Series

Share:

Description

  • High performance reflector,LOR 96%,system92%.
  • Up to 140lm/W,savings of up to 35% are possible.
  • 4 beam angles, 3 types lenses for different light effects.
  • Die-casting aluminum lamp housing with high heat dissipation efficiency.
  • Minimalist exterior design style.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

TUBO-G2 Series Track Light T1241 / T1242

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1067 Product T1241 18° / 25° / 36° / 50° 25 W 124 lm/W 3100 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1067 Product T1242 17° / 25° / 36° / 50° 36 W 125 lm/W 4500 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
TUBO-G2 Series Track Light T1241-INS / T1242-INS

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1067 Product T1241-INS 18° / 25° / 36° / 50° 15 W 126 lm/W  1900 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1066 Product T1242-INS 17° / 25° / 38° / 50° 20 W 120 lm/W 2600 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
TUBO-G2 Series Track Light T1241-ZOOM / T1242-ZOOM

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1066 Product T1241-ZOOM 20° - 36° 20W 96 lm/W 1900 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1066 Product T1242-ZOOM 20° - 36° 28W 96lm/W 2700 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
TUBO-G2 Series Track Light T1241-BOX / T1242-BOX

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1066 Product T1241-BOX 18° / 25° / 36° / 50° 25W 124lm/W 3100 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1066 Product T1242-BOX 17° / 25° / 38° / 50° 36W 125lm/W 4500 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No

Product Video

Share:

Features

  • Minimalist exterior design style

  • High efficiency heat dissipation

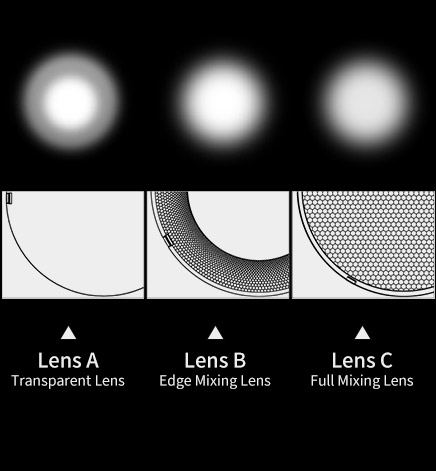

  • 3 types lenses

  • Accurate and efficient light control

Light effect

  • 20°Spot
  • 28°Flood
  • 38°Flood
  • 50°Wide flood

Application

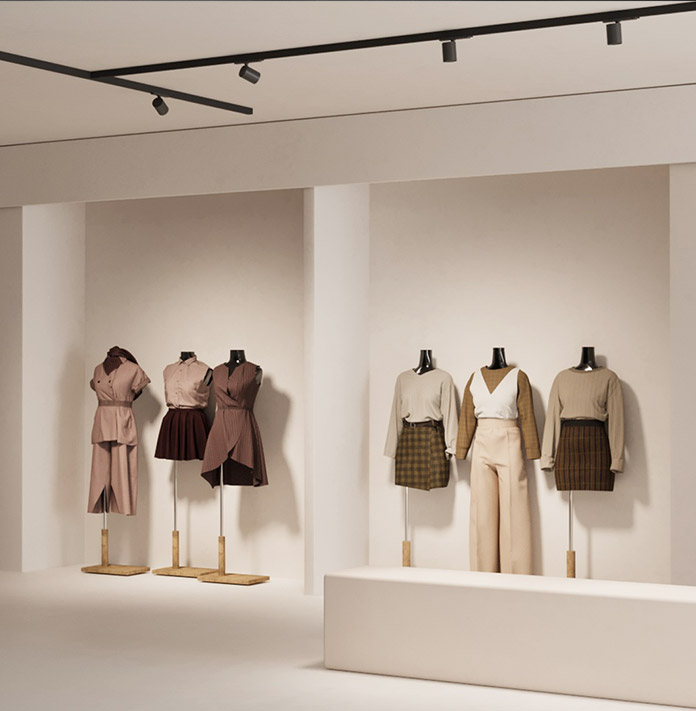

 Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling
  • Turn the power supply to "off" position as picture 2.1, Rotate the shift as picture 2.2, Assembly the trck head into track as picture 2.3
  • Rotate the shift to 90 degree
  • Rotate "off 1/2/3" as your requirement, switch can rotate 360 degree in clockwise and anticlockwise
  • Installation complete
  • Turn the power supply to "off" position
  • Rotate the shift to 90 degree
