ZOOM Series

Description

SOTEN LED track light with CRI90+,90-100lm per LED track light, dimmable is available.Flexible adjust beam angels, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

Shapeable cob LED Track light rail light ZOOM dimmable and CCT changeable led track light framing led projector led art lighting for museum .
- Patent design lens, private model, world-class quality.
- Bidirectional stepless zoom 15-36°, physical damping design;
- Adjustable beam shape, size and sharpness, and support projector function;
- Light uniformity >90%, even brightness, no spot shadow, no glare;
- Knob Triac, 1-10V, DALI, 2.4G, dimming available ;
- The lamp and lens can be disassembled, easy to maintance;

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	CCT	CRI	COB	Drive	Control Method
T1155-ZOM-A	15° - 36°	10 W	111 lm/W	1110 lm	Ø60 x 212 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No
T1156-ZOM-A	15° - 36°	15 W	120 lm/W	1800 lm	Ø70 x 227 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No
T1157-ZOM-A	15° - 36°	20 W	115 lm/W	2300 lm	Ø80 x 262 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No

Features

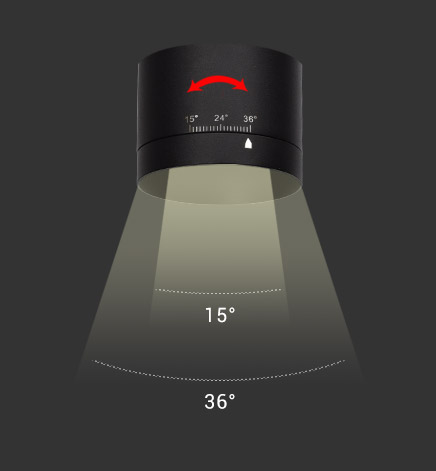

Adjustment of 15-36°
Stepless adjustment of 15-36° beam angle, more accurate and professional multi-angle lighting beams.

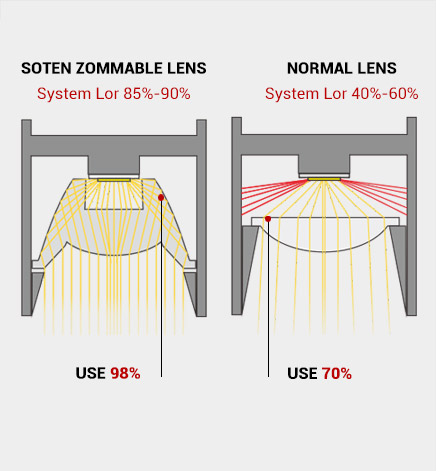

Professional optical lens
High efficiency, soft light, accurate light control, more uniform light spot, anti-glare.

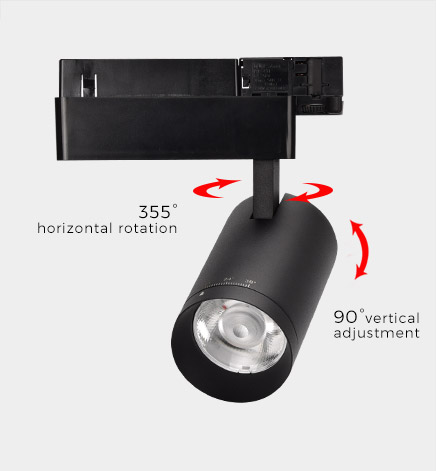

flexible adjust beam angles
355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

Light effect

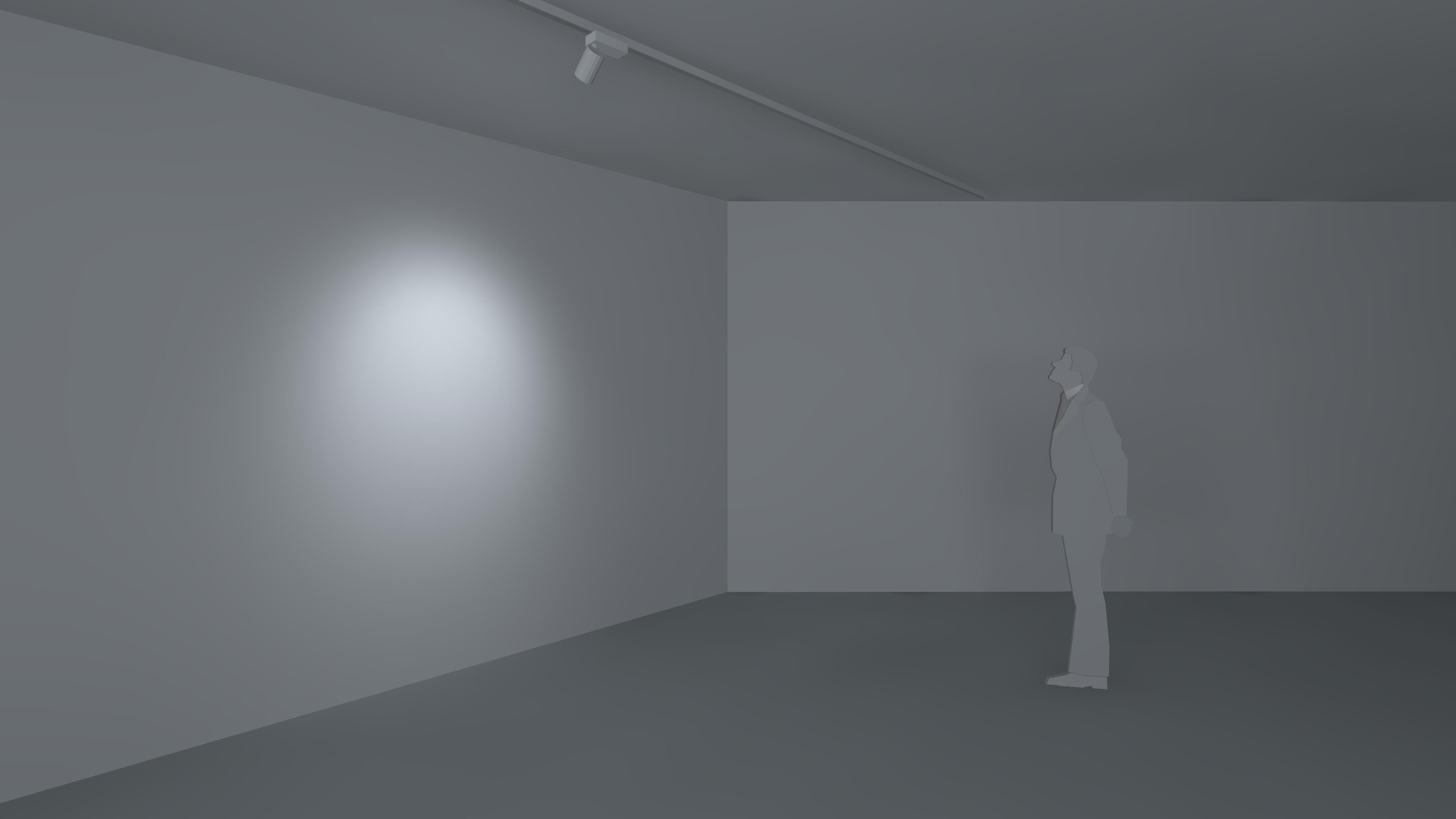

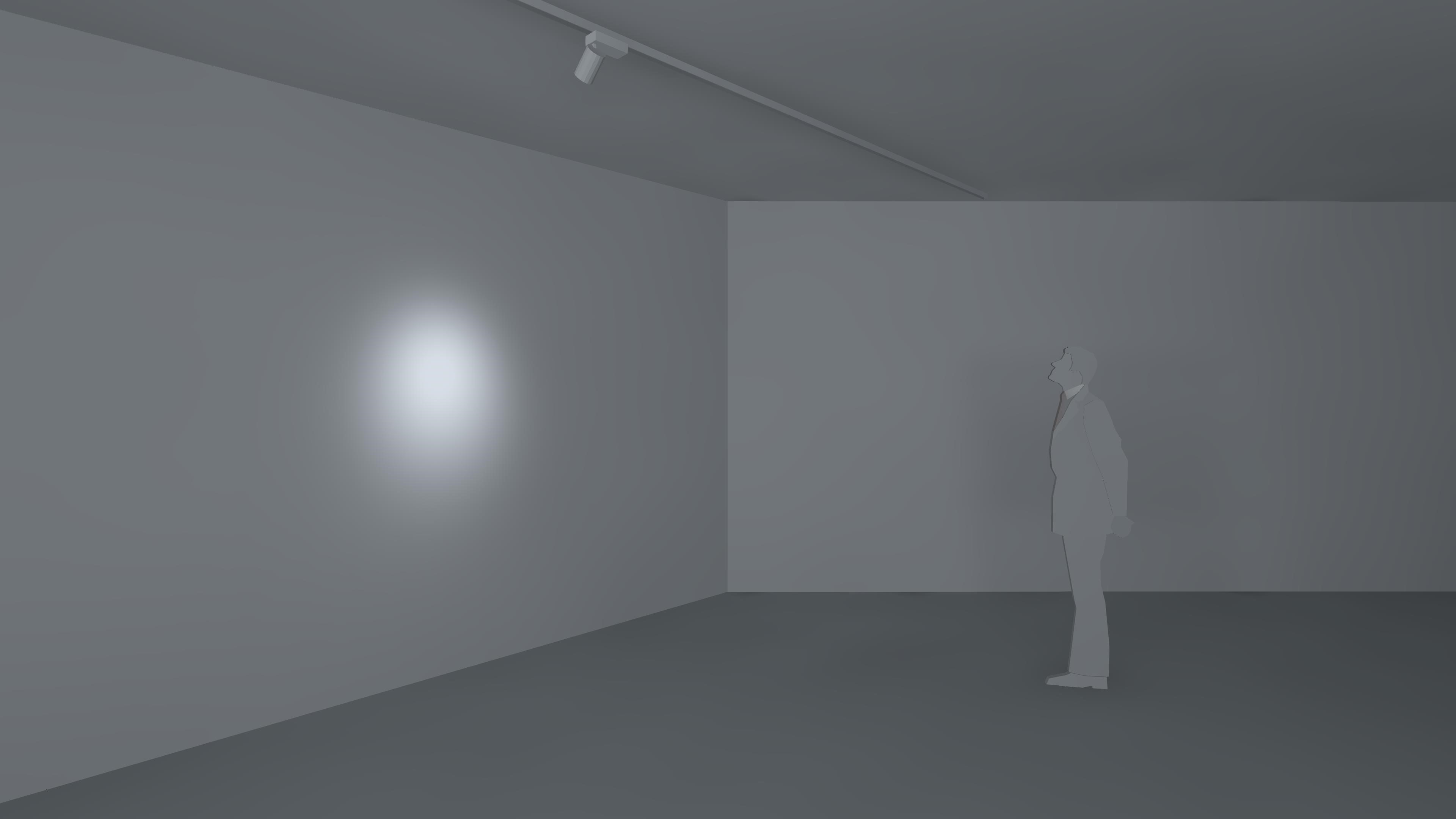

15-36°Flood
15-36°Flood
°
°
°
°
°
°
°

Application

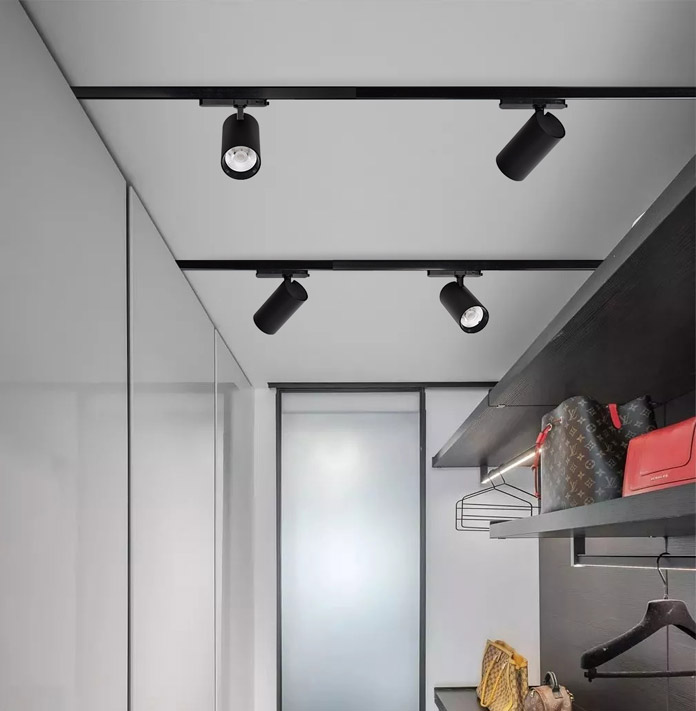

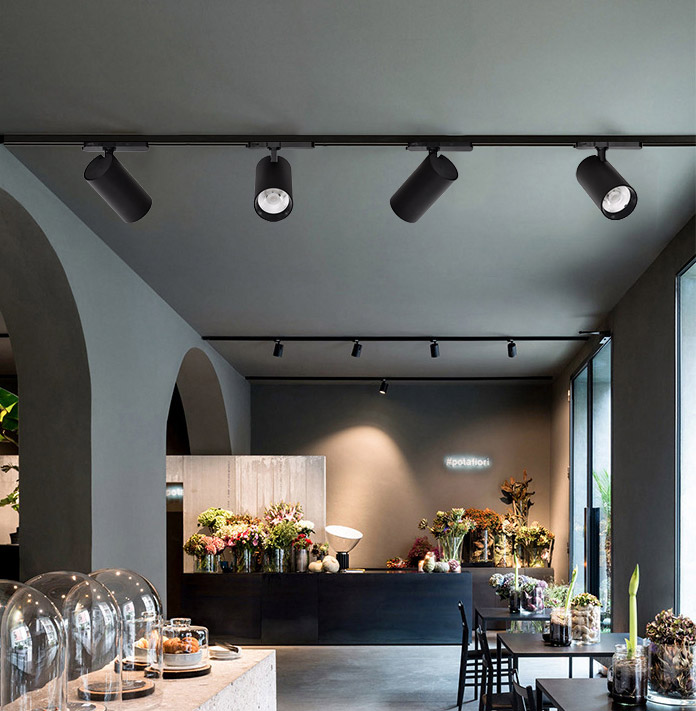

Product application in Store Lighting, Mall Lighting

Mounting

Install the track on the ceiling
Turn the power supply to "off" position as picture 2.1, Rotate the shift as picture 2.2, Assembly the trck head into track as picture 2.3
Rotate the shift to 90 degree
Rotate "off 1/2/3" as your requirement, switch can rotate 360 degree in clockwise and anticlockwise
Installation complete

Turn the power supply to "off" position and Rotate the shift to 90 degree
Pull out of the head of track downward
