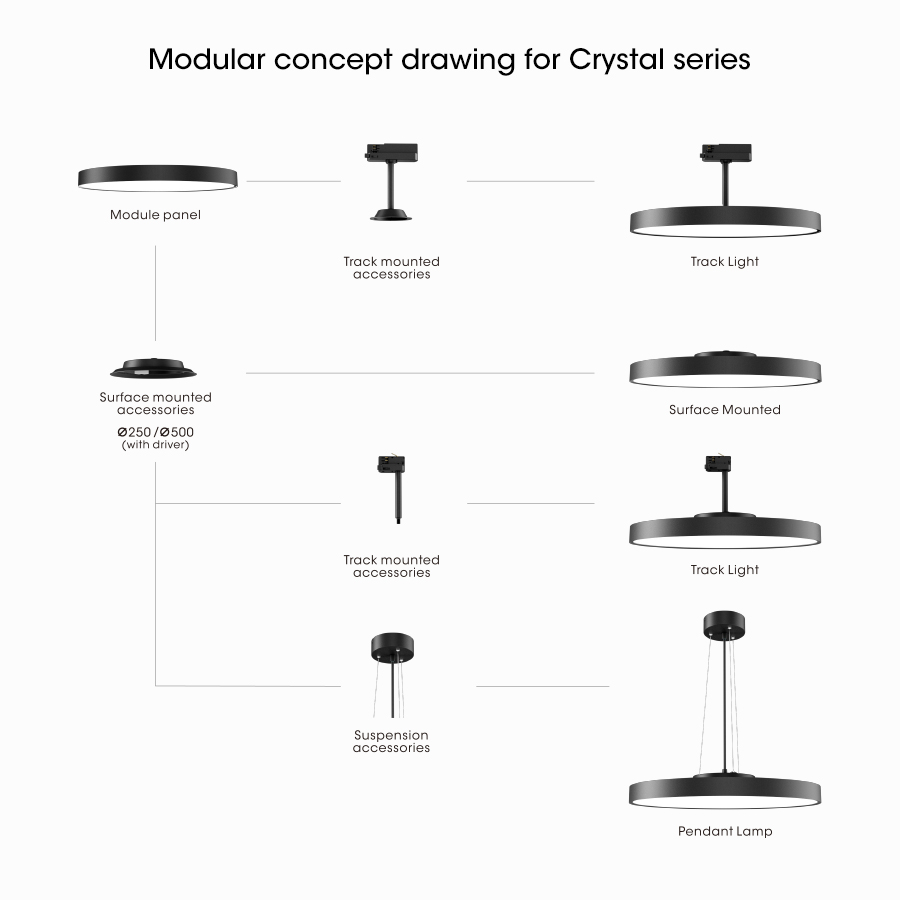

CRYSTAL Series

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

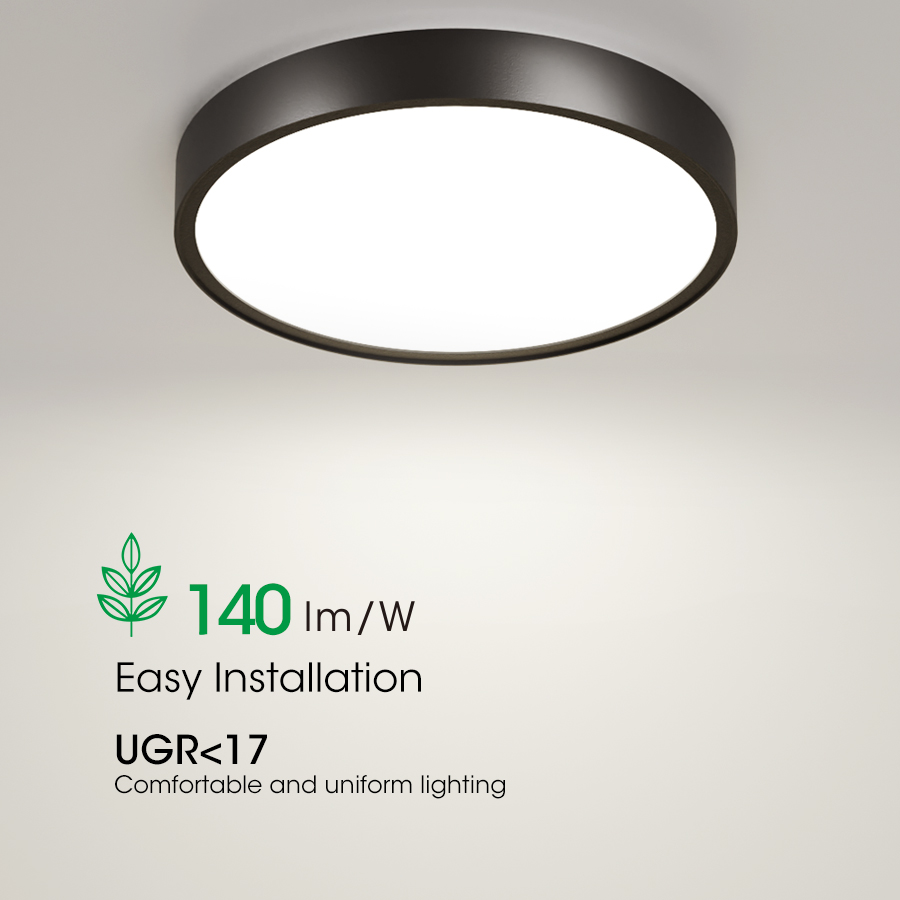

CRYSTAL Series Surface Mounted Pl1010 / Pl1011 / Pl1012 / Pl1017 / Pl1018 / Pl1019 / Pl1020

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	CCT	CRI	Color	SMD	Drive	Control Method
PL1010	90°	28W	140 lm/W	3900 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
PL1011	90°	34W	140 lm/W	4800 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
PL1012	90°	40W	140 lm/W	5600 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
PL1017	90°	50W	120 lm/W	6000 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
PL1018	90°	75W	120 lm/W	9000 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
PL1019	90°	100W	120 lm/W	12000 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
PL1020	90°	120W	120 lm/W	14400 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No

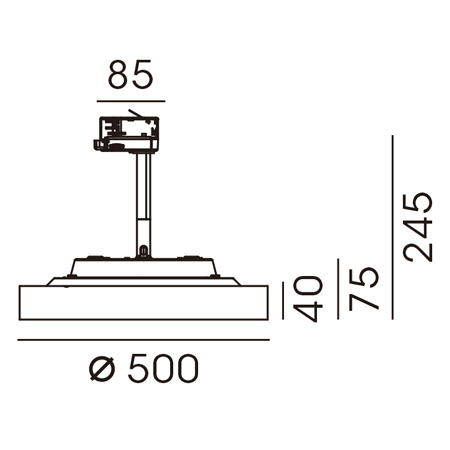

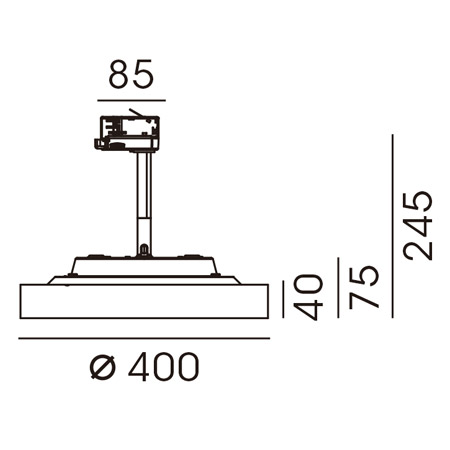

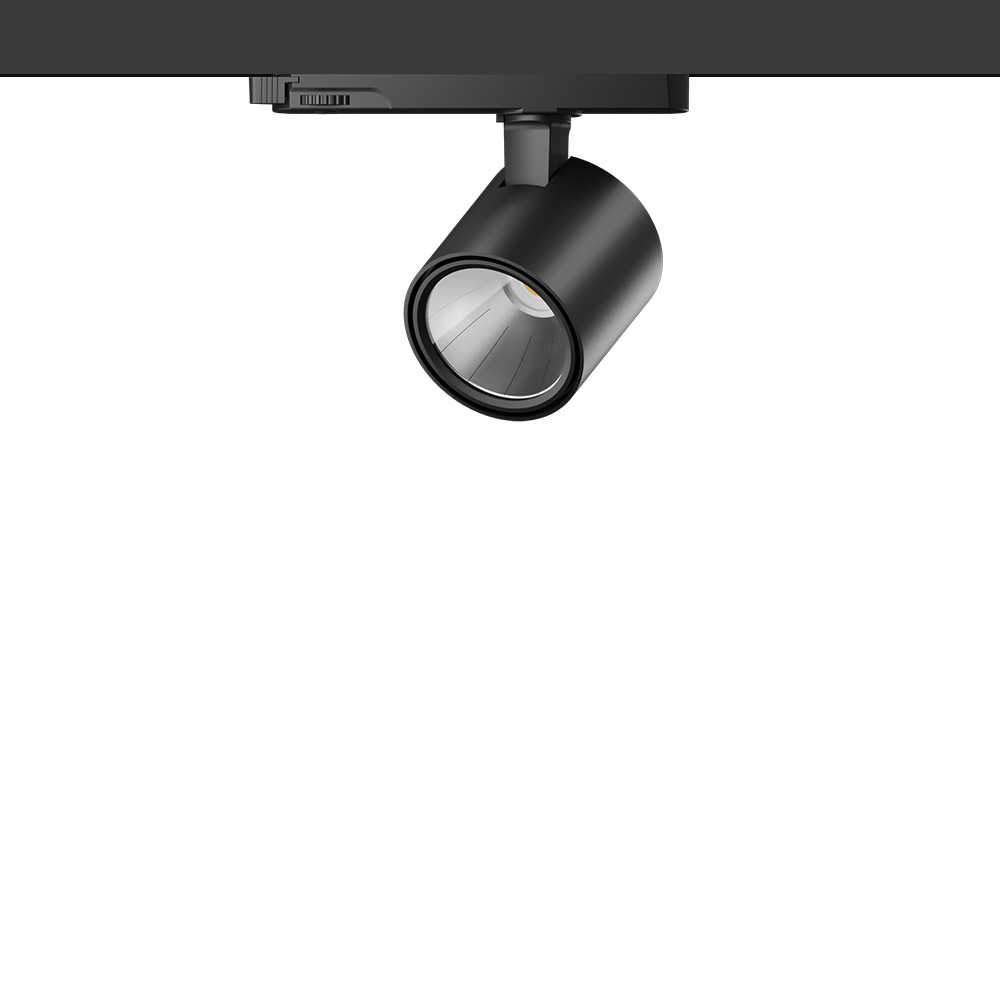

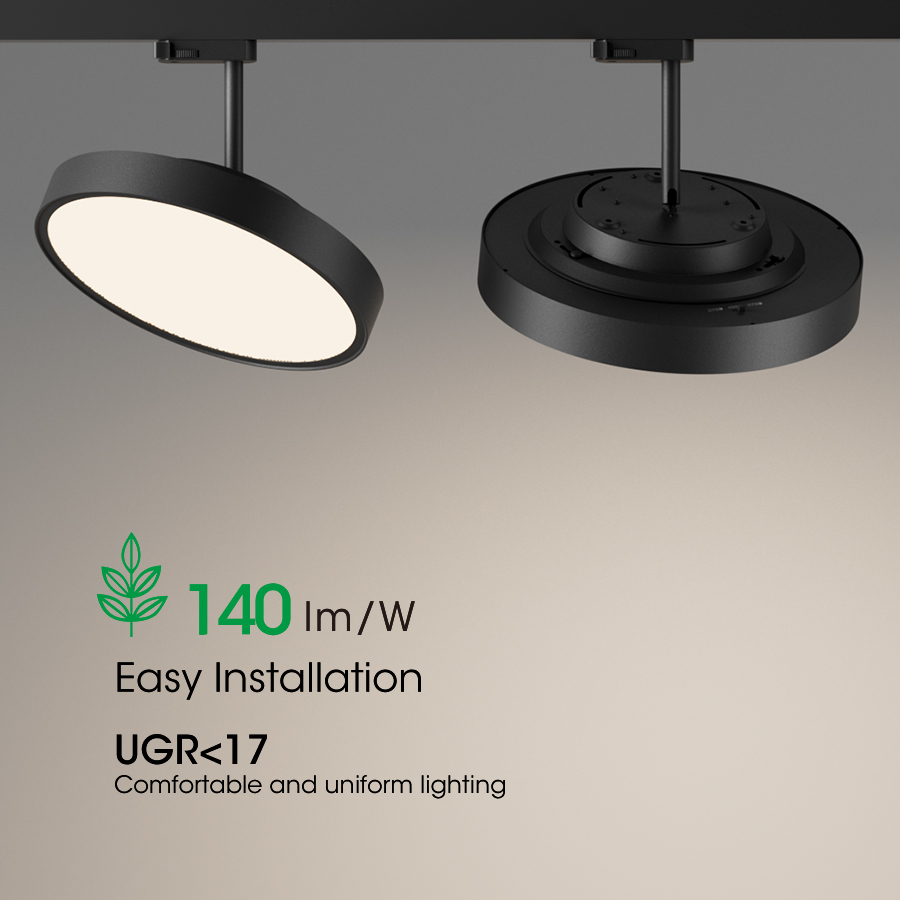

CRYSTAL Series Track light T1222 / T1223 / T1224 / T1225 / T1226

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	CCT	CRI	Color	SMD	Drive	Control Method
T1222	90°	8W	125 lm/W	1000 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
T1223	90°	20W	130 lm/W	2600 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
T1224	90°	28W	140 lm/W	3900 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
T1225	90°	34W	140 lm/W	4800 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
T1226	90°	40W	140 lm/W	5600 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No

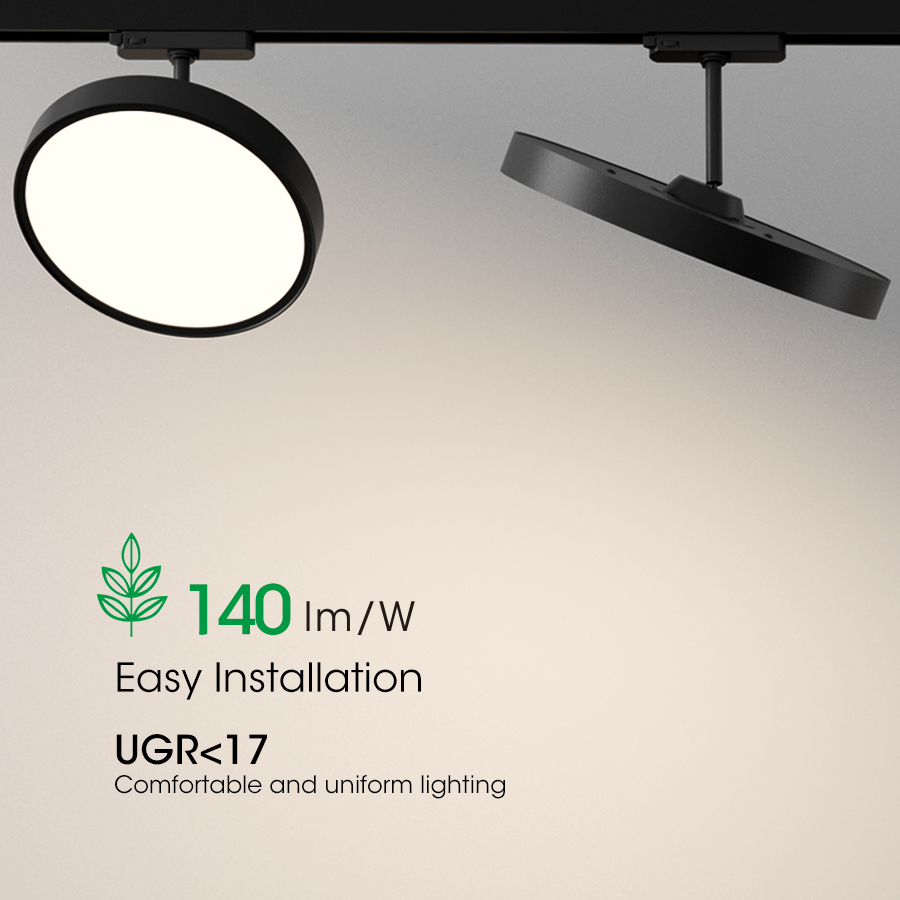

CRYSTAL Series Track light T1224-ins / T1225-ins / T1226-ins

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	CCT	CRI	Color	SMD	Drive	Control Method
T1224-INS	90°	28W	140 lm/W	3900 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
T1225-INS	90°	34W	140 lm/W	4800 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
T1226-INS	90°	40W	140 lm/W	5600 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No

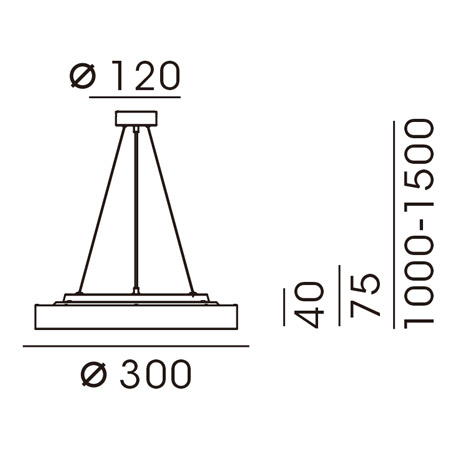

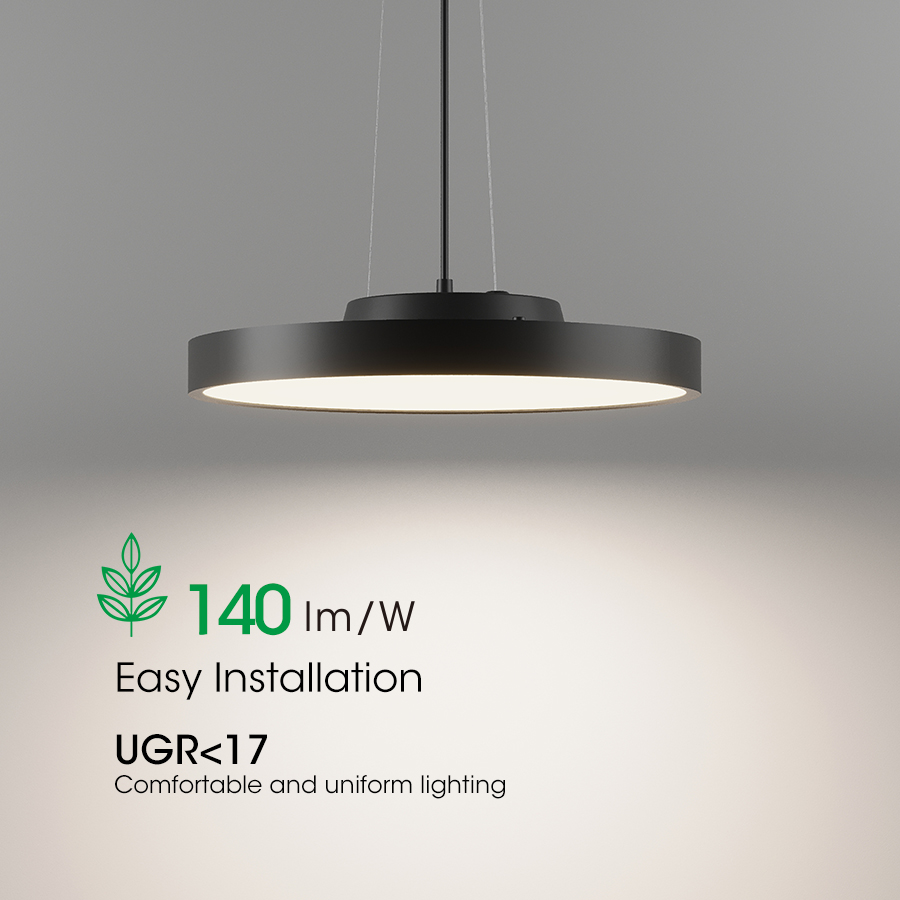

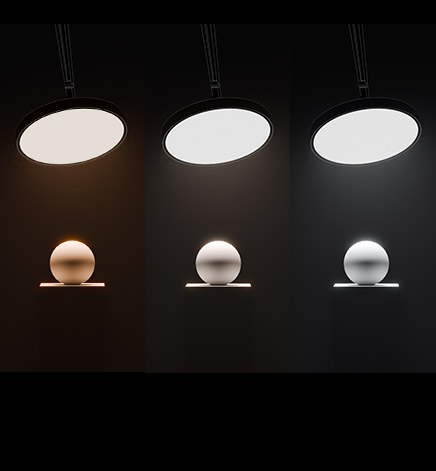

CRYSTAL Series Pendant light P1065 / P1066 / P1067 / P1111 / P1112 / P1113 / P1114

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	CCT	CRI	Color	SMD	Drive	Control Method
P1065	90°	28W	140 lm/W	3900 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
P1066	90°	34W	140 lm/W	4800 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
P1067	90°	40W	140 lm/W	5600 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
P1111	90°	50W	120 lm/W	6000 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
P1112	90°	75W	120 lm/W	9000 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
P1113	90°	100W	120 lm/W	12000 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No
P1114	90°	120W	120 lm/W	14400 lm	2700K / 4000K / 5700K	≥95	Black / White	Bridgelux	Philips	No

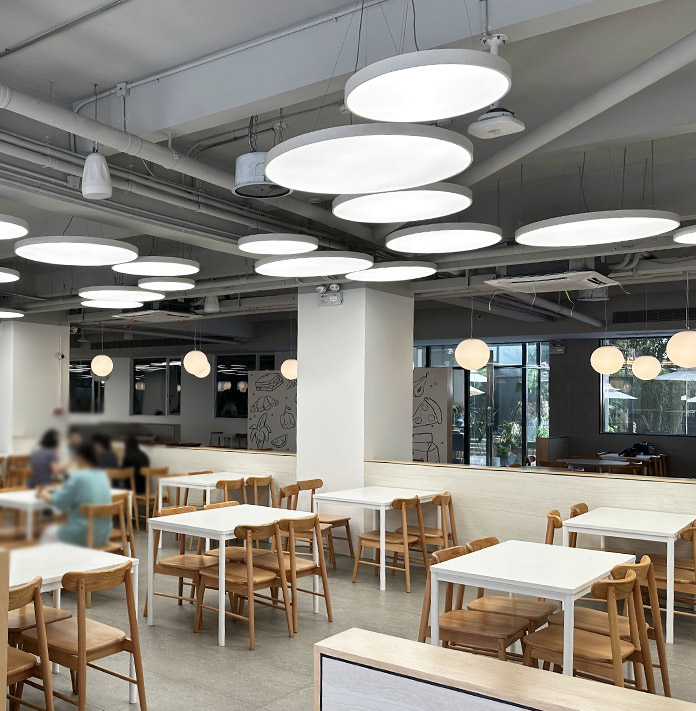

Product application in Store Lighting, Mall Lighting

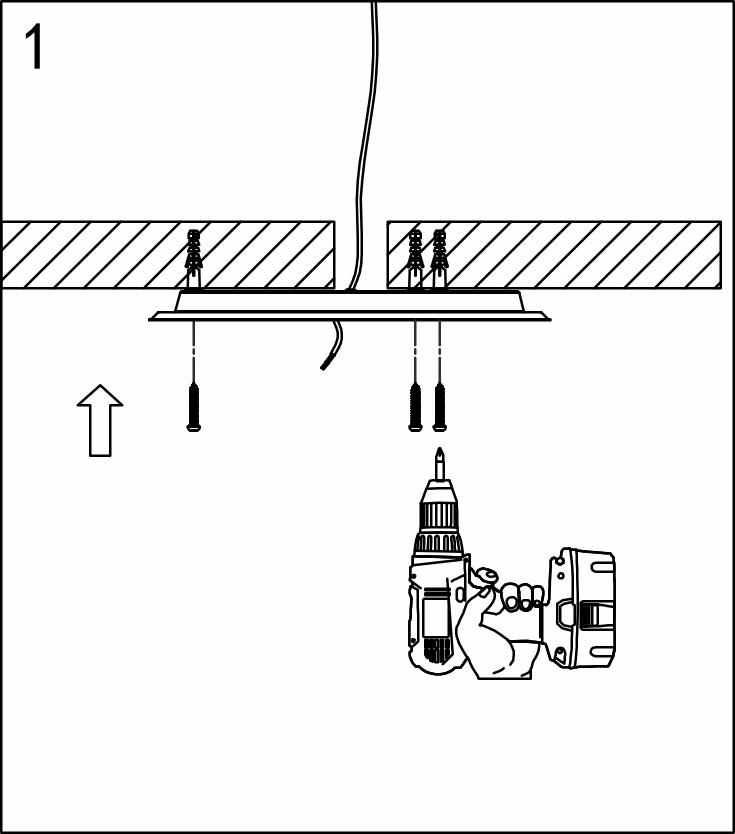

1.Install the track on the ceiling aspicture I1 ;

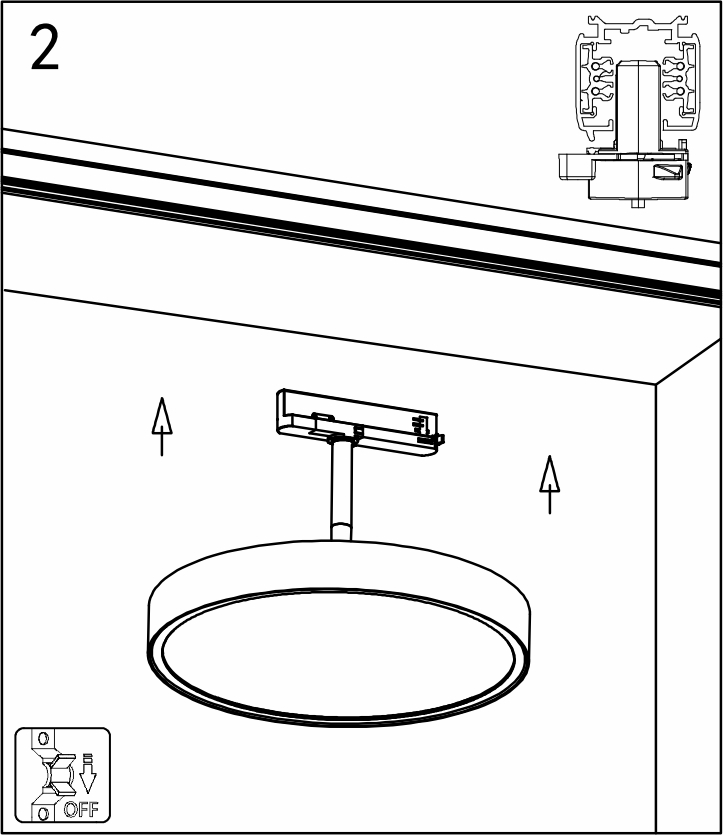

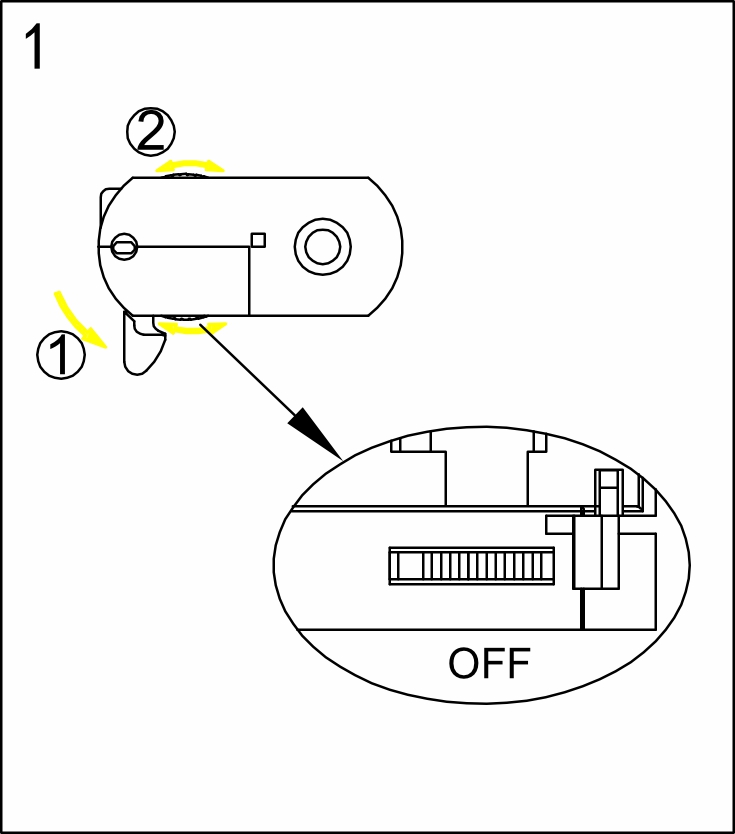

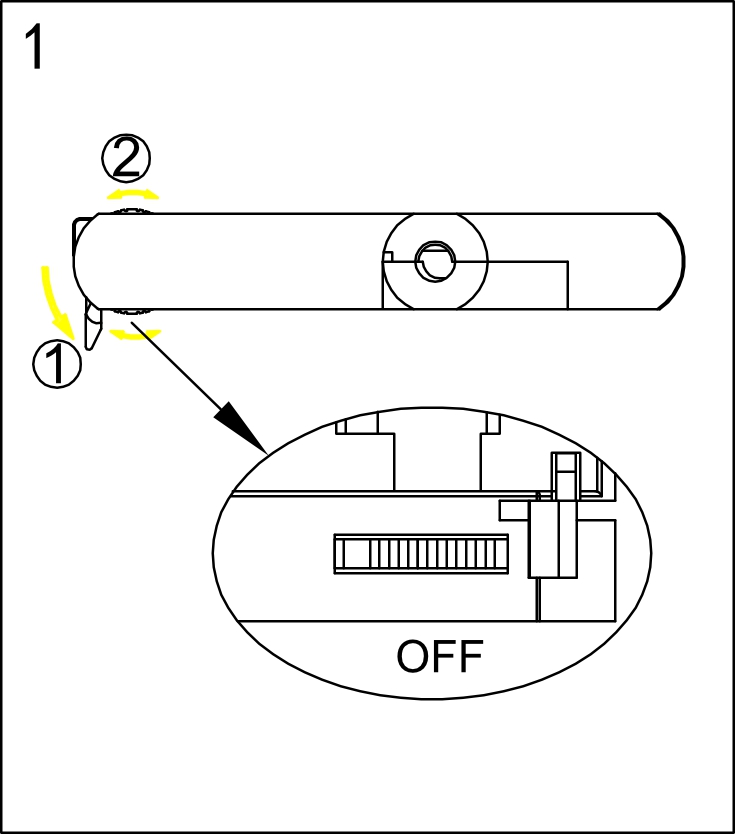

2.Turn the power supply to "0"position and rotate the shift as picture I2 ；

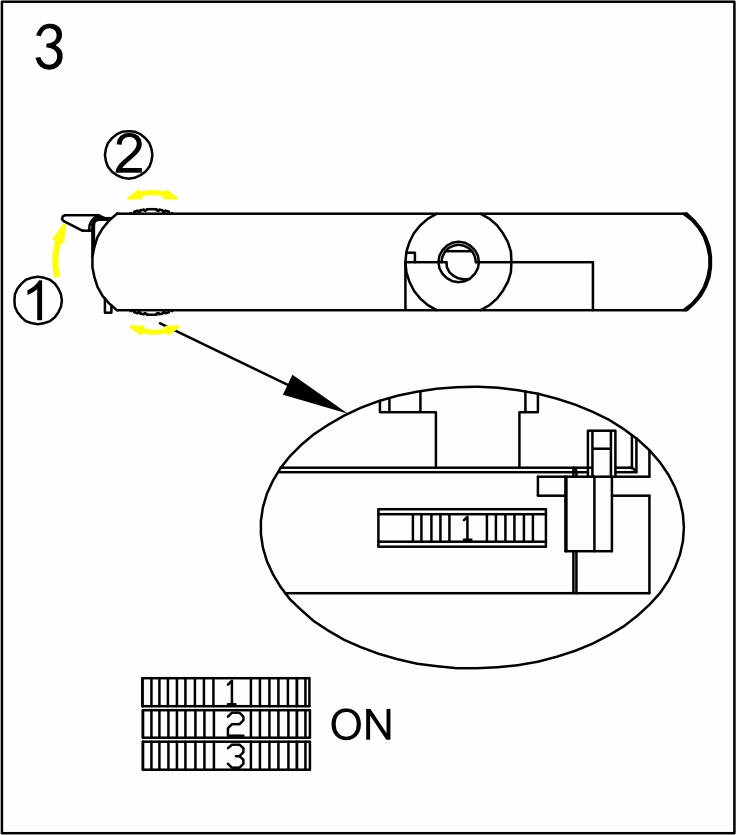

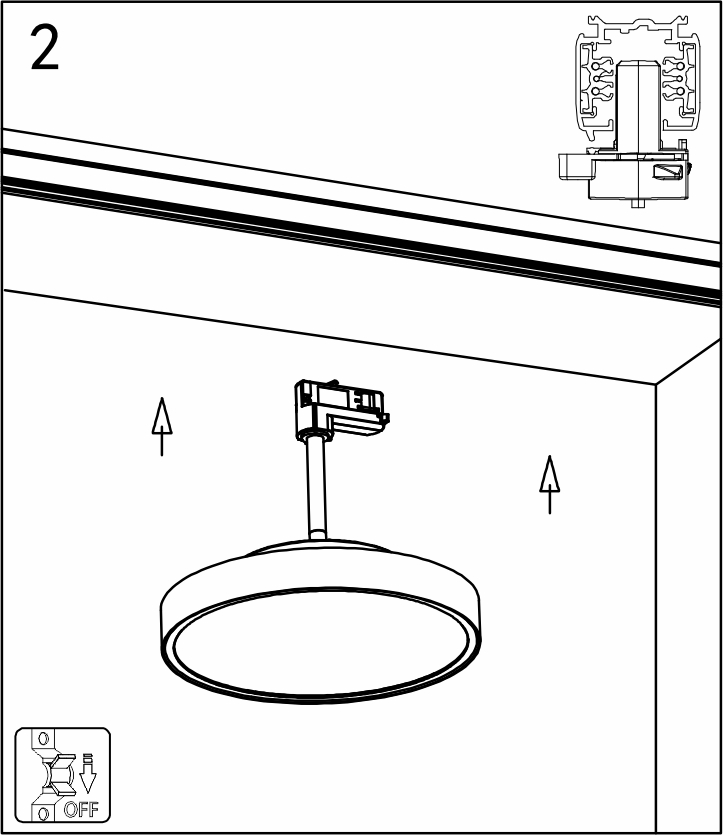

3.Assembly the track head into track as picture I3；

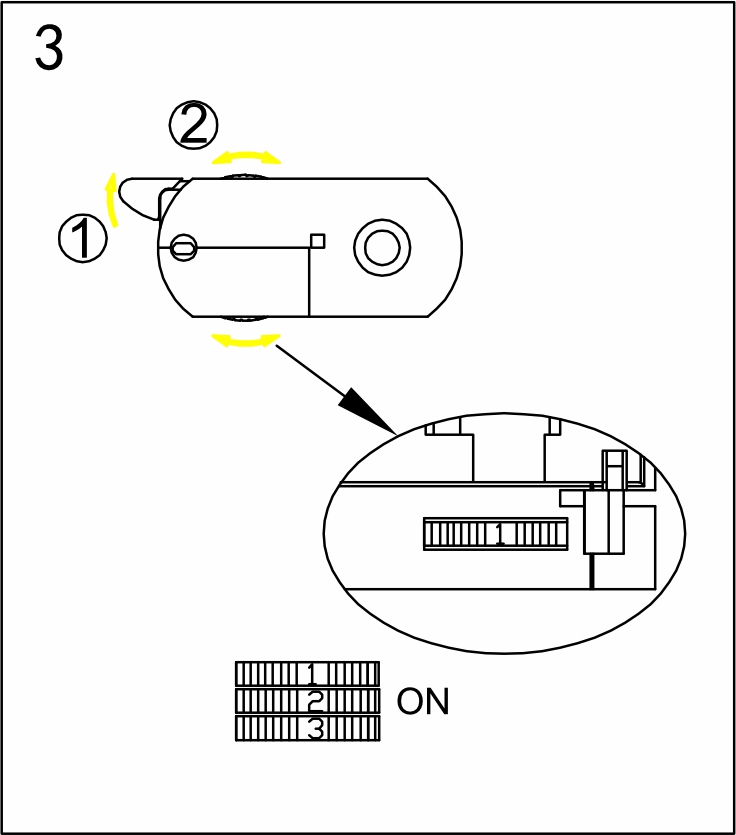

4.Rotate the shift to 90 degree as picture I4 , rotate "0/1/2/3 " as your requirement , switch can rotate 360 degree in clockwise and anticlockwise as picture I4 ;

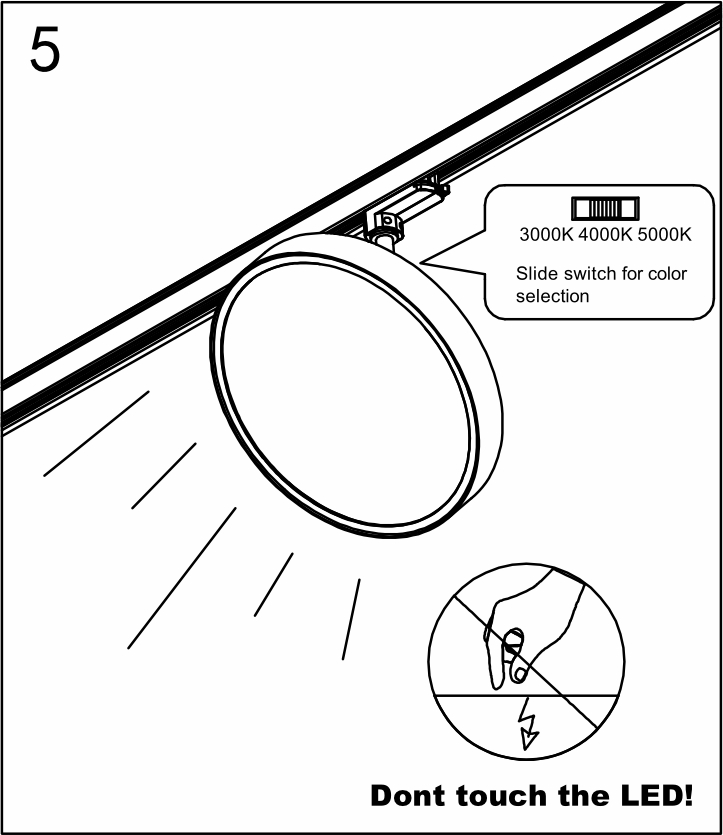

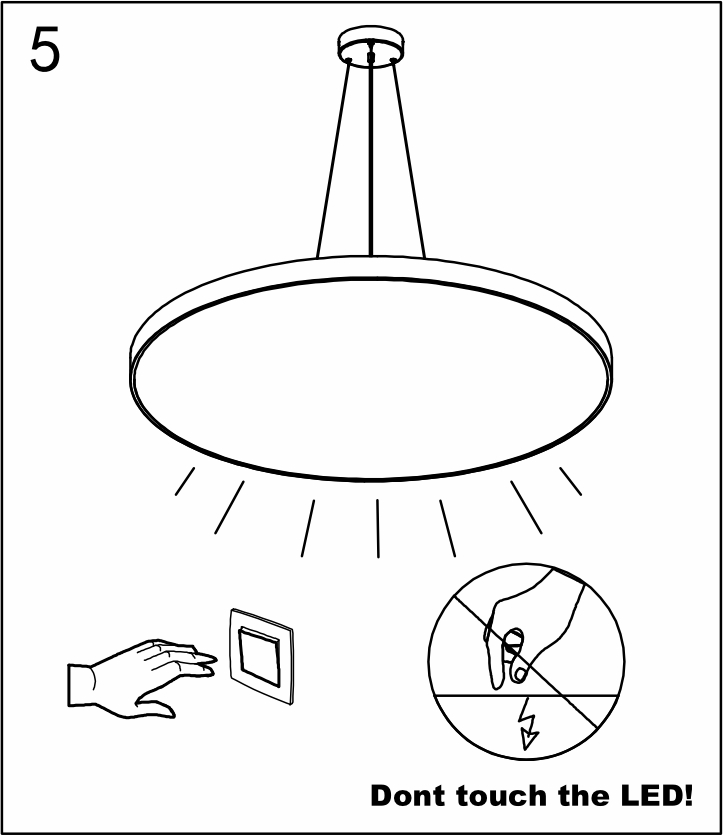

5.Installation complete as picture I5 ;
